Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Switch type | Nonreflective SPDT RF switch |
| Frequency range | 100 MHz to 13 GHz |
| Insertion loss | 0.8 dB typical at 8 GHz |
| Isolation | 45 dB typical at 8 GHz |
| Input P1dB | 39 dBm typical |
| Through-path power handling | 35 dBm class |
| Ordering form | Reel |
| Package | 16-lead 3 mm × 3 mm LFCSP |
Product Overview

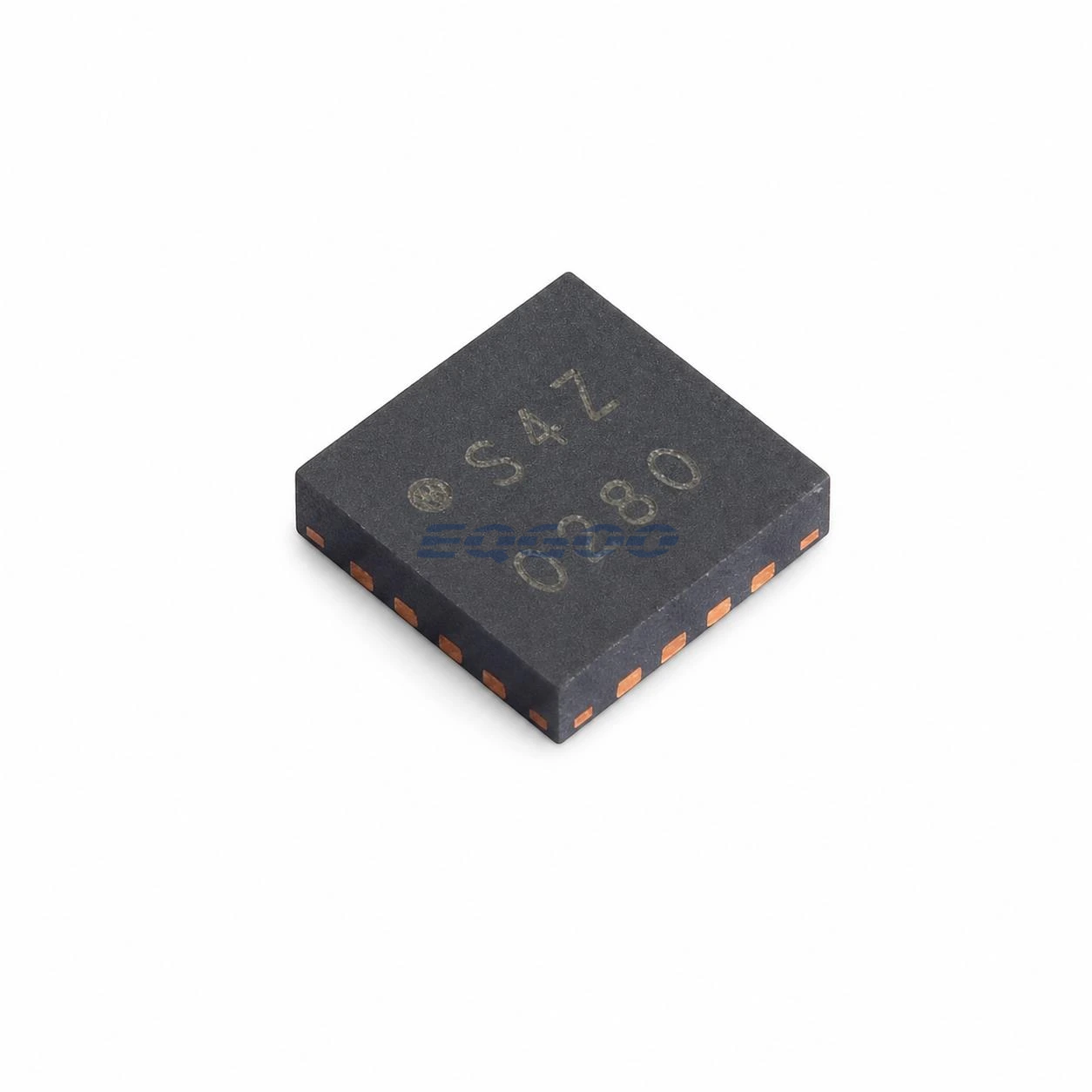

ADRF5019BCPZN-R7 is the reel orderable of the Analog Devices ADRF5019 nonreflective SPDT RF switch. It covers 100 MHz to 13 GHz and provides the same 50 Ω switching function as the non-reel BCPZN orderable.
The -R7 suffix is important for production handling rather than RF performance. Keeping the full order code avoids ambiguity where approved material records or feeders specify reel-packed LFCSP devices.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Topology | SPDT, nonreflective |
| Frequency | 100 MHz to 13 GHz |
| Impedance | 50 Ω |
| Insertion loss at 8 GHz | 0.8 dB typical |
| Isolation at 8 GHz | 45 dB typical |
| Input P1dB | 39 dBm typical |
| Input IP3 | 60 dBm typical |
| Package | 16-lead 3 mm × 3 mm LFCSP |
| Packing | Reel |
Power and Switching Considerations
The device can carry higher RF power in a steady through path than during a state transition. Systems that hot-switch should check the lower hot-switching power limit separately from the nominal through-path handling figure.
At multi-gigahertz frequencies, board launch, ground-via placement and transmission-line geometry contribute materially to measured insertion loss and isolation. The package performance cannot be considered separately from the RF layout.
Ordering Variant Note
ADRF5019BCPZN-R7 is the reel-packed orderable; ADRF5019BCPZN is the corresponding non-reel form. The RF characteristics are selected from the same ADRF5019 device data.
Product Status
Analog Devices lists ADRF5019 as Recommended for New Designs.
Manufacturer Resource
Analog Devices ADRF5019 product page
Quality & Verification Support
Reel label, exact suffix, LFCSP marking and lot/date information can be checked during sourcing.
Request a Quote
Request ADRF5019BCPZN-R7 exactly and include quantity, date-code and traceability requirements.
