Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Supply | 3.3 V |
| Data rate | 12 Mbps |
| Duplex | Half duplex |
| ESD on RS-485 I/O | ±15 kV |
| Bus nodes | Up to 32 |
| Common-mode input range | −7 V to +12 V |
| Fail-safe | Receiver open-circuit fail-safe |
| Package | 8-lead SOIC_N, R-8 |
| Operating temperature | −40°C to +85°C |
Product Overview

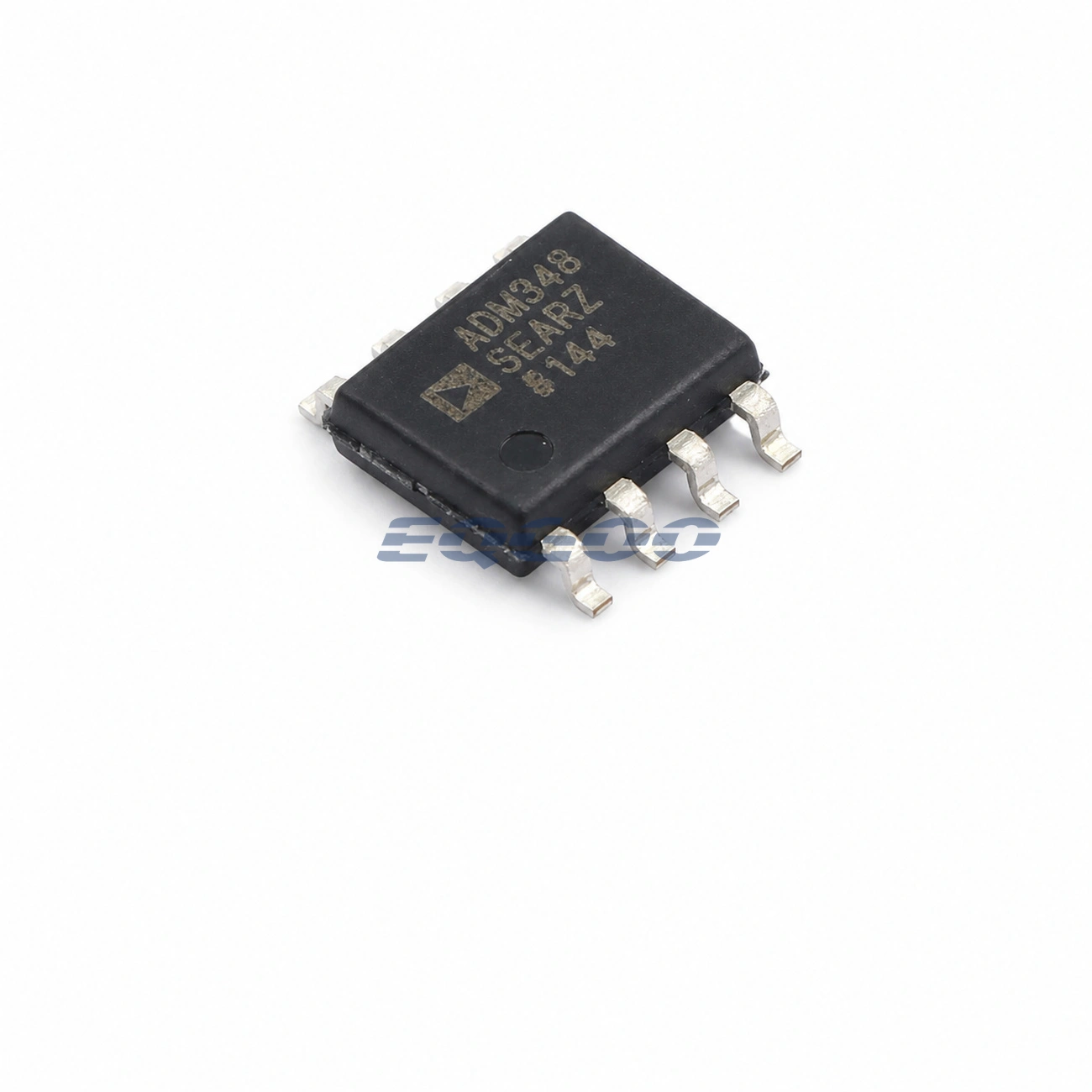

ADM3485EARZ-REEL7 is a 3.3 V half-duplex RS-485/RS-422 transceiver with 12 Mbps signaling and ±15 kV ESD protection on its RS-485 I/O. Driver and receiver share the differential bus pair, with separate enable controls for direction management.
The E-suffixed ADM3485E must be kept distinct from ADM3485. The supplied ADM3485E datasheet specifies 12 Mbps operation and the enhanced bus-pin ESD rating, so these values should not be transferred to a non-E order code.
Key Features
- 12 Mbps half-duplex operation from a 3.3 V rail.
- ±15 kV ESD protection on RS-485 I/O.
- −7 V to +12 V bus common-mode range.
- Open-circuit fail-safe receiver and thermal protection.
Functional Highlights
At 12 Mbps, line impedance, termination, and stub length become significant system constraints.
The 75176-compatible pin arrangement can simplify evaluation, but voltage, timing, ESD, and fail-safe behavior still need exact-part comparison before substitution.
Application Fit
- Industrial control networks.
- Telecommunications RS-485 links.
- Power and energy metering interfaces.
- EMI-sensitive multipoint serial systems.
Design Considerations
- Terminate the bus for the actual cable impedance and keep stubs short.
- Coordinate DE and /RE timing to avoid bus contention.
- Check the −7 V to +12 V common-mode range against expected ground offset.
- Use the exact R-8 SOIC_N land pattern.
Product Status
Manufacturer status: PRODUCTION
Analog Devices currently lists ADM3485EARZ-REEL7 as PRODUCTION.
Related Engineering Resources
Alternative Candidates for Engineering Evaluation
| MPN | Manufacturer | Package |
|---|---|---|
| ADM3485EARZ-REEL | ADI | SOIC-8 |
| GM3485E | GATEMODE | SOP-8 |
| HG3485EIM/TR | HGSEMI | SOP-8 |
| ADM3485EARZ | ADI | SOIC-8 |
| HT6508ARZ | HTCSEMI | SOP-8 |
| HT3485EARZ | HTCSEMI | SOP-8 |
| HT3485EBRZ | HTCSEMI | SOP-8 |
| HT83485ARZ | HTCSEMI | SOP-8 |
| HT4853ARZ | HTCSEMI | SOP-8 |
| HT6506ARZ | HTCSEMI | SOP-8 |
| CBM3485AS8 | Corebai Microelectronics | SOIC-8 |
Candidate alternative parts require engineering verification before substitution. Electrical characteristics, pinout, package, qualification, and application requirements should be verified before use.
