Procurement Snapshot
| Procurement Field | Value |
|---|---|
| Exact MPN | ADM3485EARZ-REEL |
| Manufacturer | Analog Devices |
| Package | SOIC-8 |
| Availability | Contact for current stock and lead time |
| Datasheet | Verified PDF |
Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Type | Transceiver |
| Voltage – Supply | 3V~3.6V |
| Data Rate | 12Mbps |
| Communication Mode | Half-Duplex |
| Number of Nodes | 32 |
| ESD Protect | ±15kV |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
Product Overview

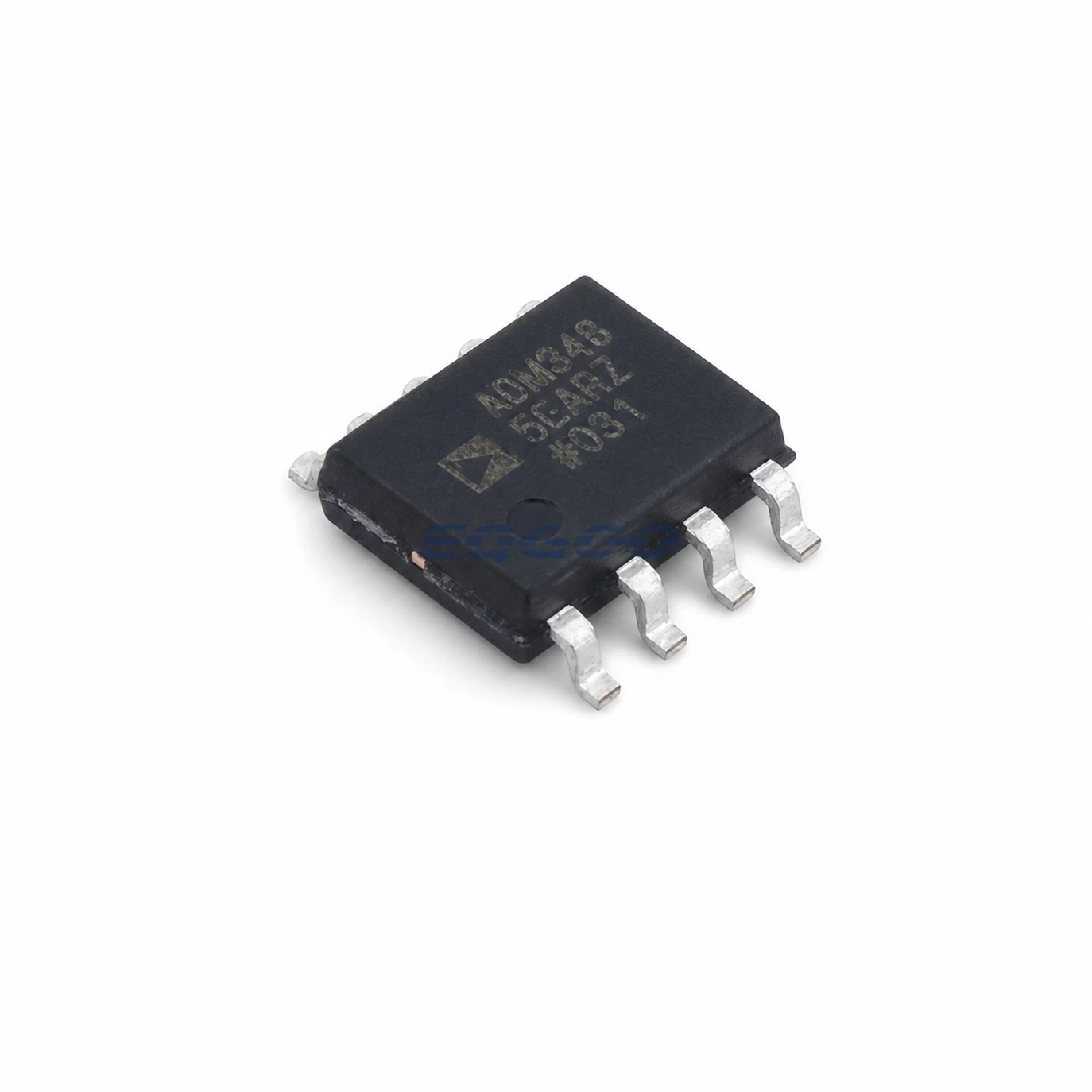

ADM3485EARZ-REEL is a ±15 kV ESD-Protected, 3.3 V,12 Mbps, EIA RS-485/RS-422 Transceiver ADM3485E from Analog Devices. The exact order code is preserved for BOM, RFQ and incoming-inspection control. The verified package for this listing is SOIC-8. For engineering selection, the most relevant confirmed values include Type Transceiver, Voltage – Supply 3V~3.6V, Data Rate 12Mbps, Communication Mode Half-Duplex.
Application Fit
- Industrial serial networks
- RS-485/RS-422 field interfaces
- Multipoint communication links
Design Considerations
- Check data rate against cable length and bus topology.
- Use termination and biasing appropriate to the actual network.
- Verify supply voltage, duplex mode, ESD/isolation requirements and exact package before substitution.
Alternative Candidates for Engineering Evaluation
| MPN | Manufacturer | Package |
|---|---|---|
| ADM3485EARZ-REEL7 | ADI | SOIC-8 |
| ADM3485EARZ | ADI | SOIC-8 |
| MAX3485ECSA-TUDI | Tudi | SOP-8 |
| ADM3485EARZ-REEL-TUDI | Tudi | SOP-8 |
| MAX3485EESA-TUDI | Tudi | SOP-8 |
| MAX3485ESA+T-JSM | JSMSEMI | SOP-8 |
| HT6575ARZ | HTCSEMI | SOP-8 |
| MAX3485AEASA+ | MAXIM | SOIC-8 |
| SP485EEN-JSM | JSMSEMI | SOP-8 |
| ISL4485EIBZ-T | RENESAS | SOIC-8 |
| SN75176BDR | ElecSuper | SOP-8 |
| MAX3485AEASA+T | MAXIM | SO-8 |
| ISL43485IBZ-T | RENESAS | SOIC-8 |
| MAX14841EASA+T | MAXIM | SOIC-8 |
| MAX14840EASA+T | MAXIM | SOP-8 |
| MAX14840EASA+ | MAXIM | SOIC-8 |
| MAX3485CSA-JSM | JSMSEMI | SOP-8 |
| SN65HVD3082EDR | JSMSEMI | SOP-8 |
| BL1590 | BL | SOP-8 |
| MAX14841EASA+ | MAXIM | SOIC-8 |
These candidates are listed by LCSC. Verify electrical characteristics, pinout, package, qualification and application requirements before substitution.
Quality & RFQ Support
For quotation or inspection requirements, provide the exact MPN, quantity, destination, target Date Code if applicable, and any requested third-party testing before shipment.
