Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | 8-channel analog multiplexer/demultiplexer |
| Configuration | SP8T / 8:1 bidirectional |
| Select inputs | 3 |
| Enable | Active-high disable |
| Supply family | 2.0 V to 6.0 V HC domain |
| Analog range | Up to −5 V to +5 V with appropriate rails |
| Package | SO16 / SOT109-1 |
| Packing | ,653 orderable |
| Product status | Production |
Product Overview

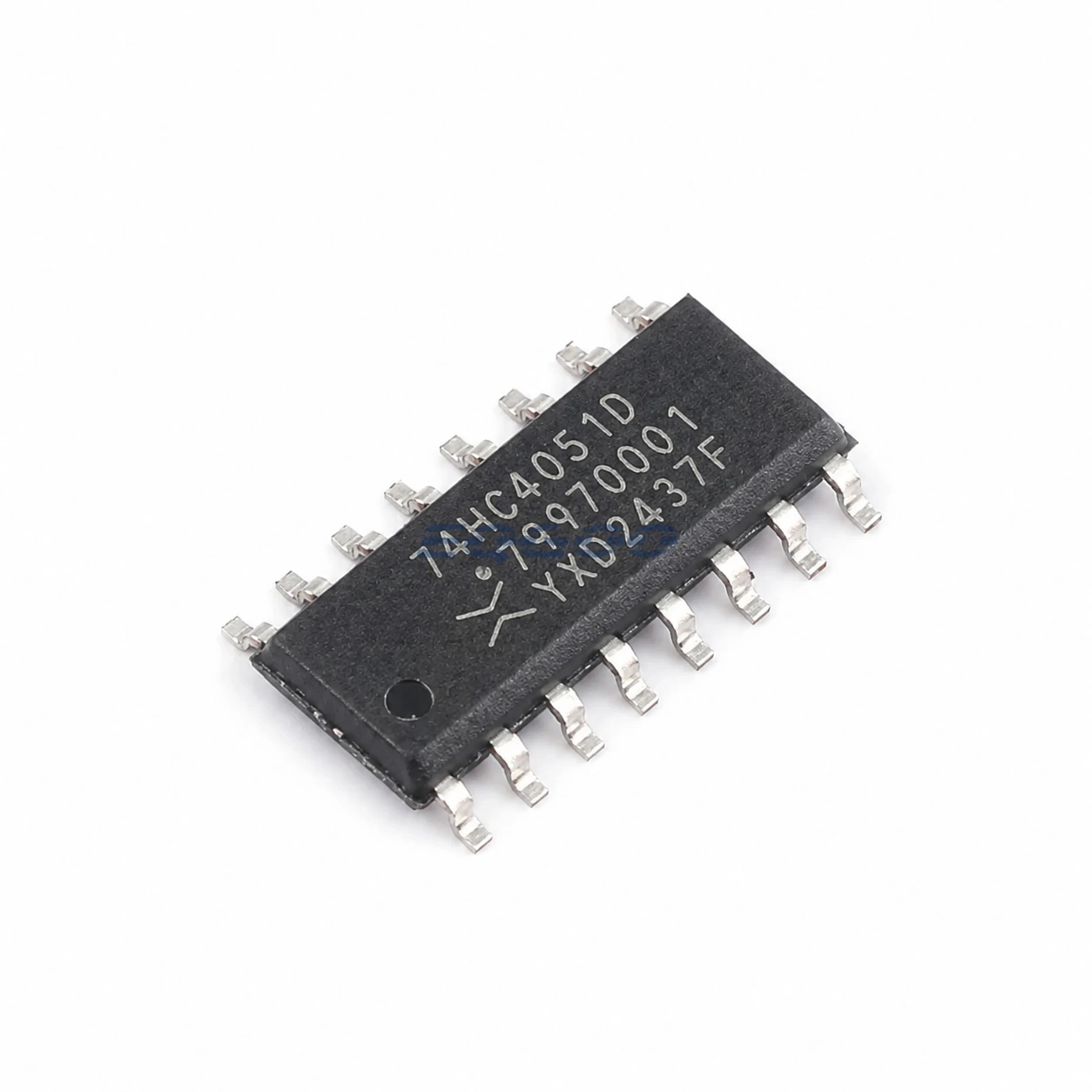

74HC4051D,653 is the SO16 orderable of Nexperia’s 74HC4051 eight-channel analog multiplexer/demultiplexer. Three binary select inputs choose one of eight bidirectional analog channels, while the enable input disconnects all paths when HIGH.
The D,653 code uses the SOT109-1 SO16 footprint and should be retained when the assembly is qualified for this package rather than the smaller QFN version.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Switches | 8 |
| Configuration | SP8T |
| Signal direction | Bidirectional |
| Control | S0, S1, S2 plus enable |
| HC supply range | 2.0 V to 6.0 V |
| Analog signal span | Up to −5 V to +5 V with proper VEE/VCC rails |
| Package | SO16 / SOT109-1 |
| Exact orderable | 74HC4051D,653 |
Analog-Supply Considerations
Bipolar analog routing requires the VEE rail to be planned along with digital logic thresholds. The analog inputs must stay within the permitted supply range even though the switches are bidirectional.
Manufacturer Resource
Nexperia 74HC4051D product page
Quality & Verification Support
Exact D,653 order code, SO16 package, packing, marking and lot/date information can be reviewed before shipment.
Request a Quote
Request 74HC4051D,653 exactly and include quantity, date-code and traceability requirements.
For the same Nexperia 74HC4051 eight-channel analog multiplexer in a compact surface-mount package, compare 74HC4051BQ,115 (DHVQFN16, SOT763-1) with this 74HC4051D,653 (SO16, SOT109-1). Nexperia lists both as 74HC4051 variants, but their footprint and pin layout differ; the smaller no-lead package is not a drop-in mechanical substitute for SO16.
