Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | Dual 4:1 analog multiplexer/demultiplexer |
| Channels | Two independent 4-channel banks |
| Signal path | Bidirectional |
| Maximum supply class | 20 V |
| Single-supply range | 3 V to 20 V family range |
| Dual-supply range | Up to ±10 V family range |
| Switching | CMOS analog switch |
| Package | SOIC-16 |
| Operating temperature | −55°C to +125°C |
| Product status | Active |
Product Overview

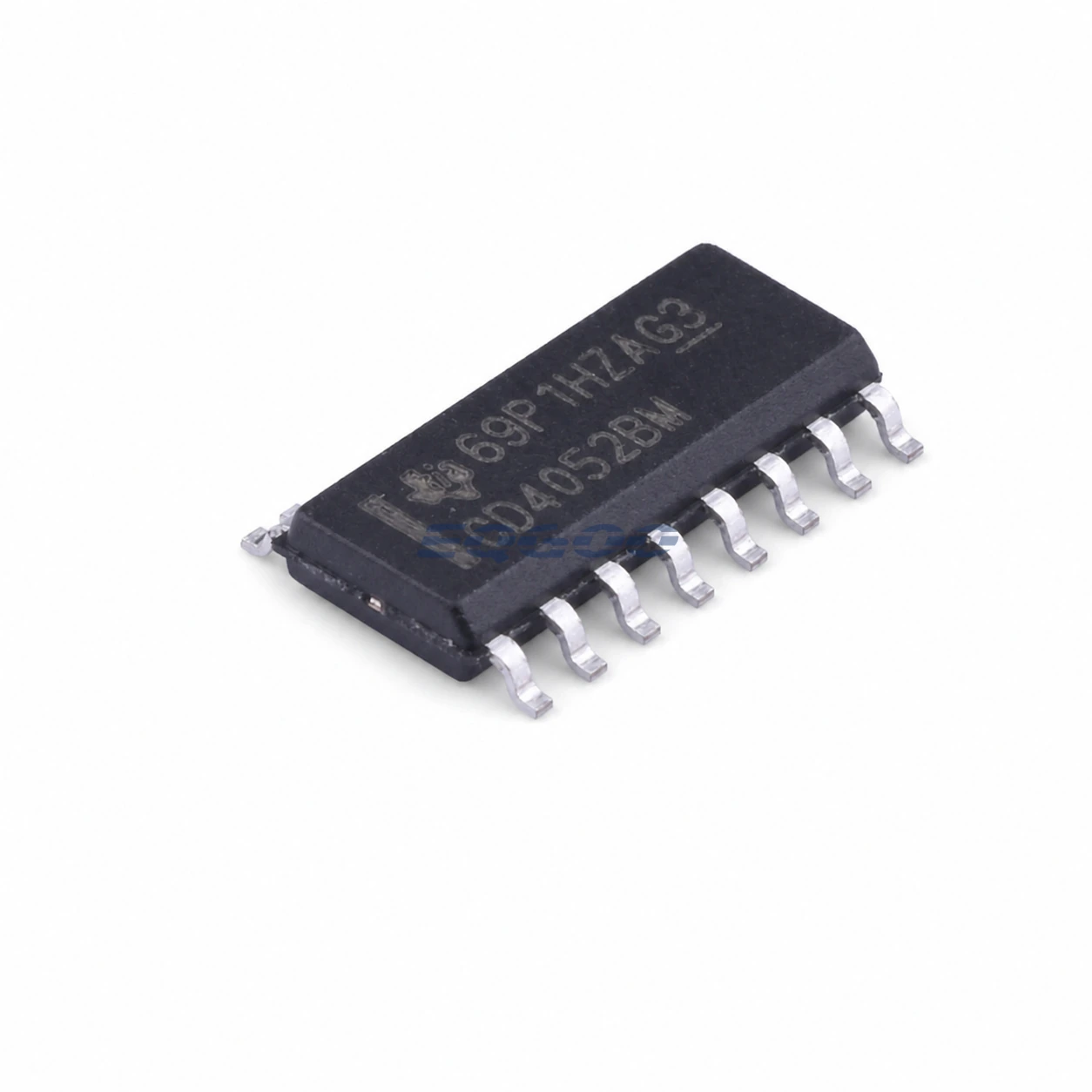

CD4052BM96 is a Texas Instruments dual 4-channel CMOS analog multiplexer/demultiplexer in SOIC-16. Two common signal nodes share the same pair of binary select inputs, allowing two related analog or digital paths to be switched simultaneously among four positions.
The CD4052B family supports a much wider signal span than low-voltage logic multiplexers, including dual-supply operation for signals that extend below ground. The M96 order code identifies the SOIC tape-and-reel form.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Configuration | Dual 4:1 |
| Number of common nodes | 2 |
| Select inputs | 2 shared binary address inputs |
| Signal direction | Bidirectional |
| Supply | Up to 20 V single-supply class / ±10 V dual-supply class |
| Logic conversion | Supports control logic referenced to VSS while analog range may use VEE |
| Package | SOIC-16 |
| Temperature | −55°C to +125°C |
Dual-Channel Routing Considerations
Because both 4:1 banks share the address lines, CD4052B is well suited to paired signals or stereo/measurement paths that must change channel together. If the two banks must be selected independently, a different switch topology is required.
Source impedance, switch RON and load current should be included in precision analog error calculations.
Manufacturer Resource
Texas Instruments CD4052B product page
Quality & Verification Support
Exact CD4052BM96 order code, SOIC-16 package, reel format, marking and lot/date information can be reviewed before shipment.
Request a Quote
Request CD4052BM96 exactly and include quantity, date-code and traceability requirements.
