Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | 8-channel analog multiplexer/demultiplexer |
| Configuration | SP8T / 8:1 bidirectional |
| Select inputs | 3 |
| Enable | Active-low switching enable function |
| Analog input range | Up to −5 V to +5 V with suitable rails |
| Logic family | HC CMOS |
| Package | DHVQFN16 / SOT763-1 |
| Order code | 74HC4051BQ,115 |
| Product status | Active |
Product Overview

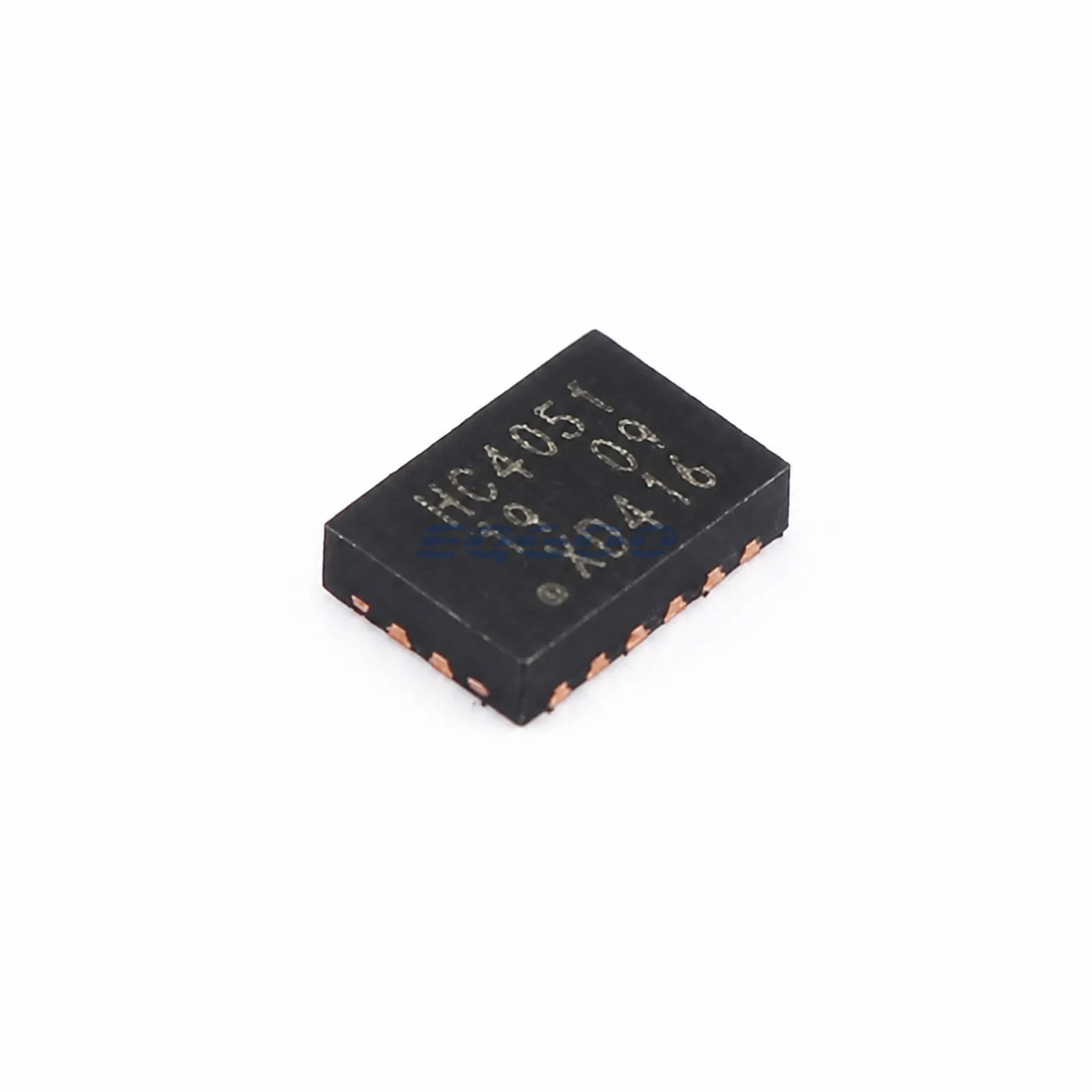

74HC4051BQ,115 is the compact DHVQFN16 orderable of Nexperia’s 74HC4051 eight-channel analog multiplexer/demultiplexer. Three binary select inputs connect one of eight Y channels to the common Z node, and the enable input opens all switch paths when asserted HIGH.
The device is bidirectional, so it can be used as either an 8-to-1 multiplexer or a 1-to-8 demultiplexer. The QFN package is useful where the same 4051 switching function is needed in substantially less board area than a leaded SO16 option.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Channels | 8 |
| Configuration | SP8T |
| Signal direction | Bidirectional |
| Analog range | −5 V to +5 V class with appropriate supply arrangement |
| Supply family | 2 V to 6 V HC logic operating domain |
| Power | CMOS low-power architecture |
| Input protection | Clamp diodes on control inputs |
| Package | DHVQFN16, SOT763-1 |
| Exact orderable | 74HC4051BQ,115 |
Multiplexer Integration Considerations
The analog channel voltage must remain within the permitted supply rails. When bipolar analog signals are required, the VEE connection and logic thresholds need to be planned together rather than treating the device as a simple single-supply logic mux.
For BOM control, the BQ package code and ,115 packing suffix should be retained because other 74HC4051 orderables use different footprints.
