Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | High-speed switching/signal diode |
| Breakdown voltage | 100 V |
| Working peak reverse voltage | 75 V |
| Average rectified current | 200 mA at TA = 75°C |
| Reverse recovery | 5 ns maximum |
| Capacitance | 4 pF maximum at 0 V, 1 MHz |
| Package | Hermetic glass DO-35 |
| Family status | In Production |
Product Overview

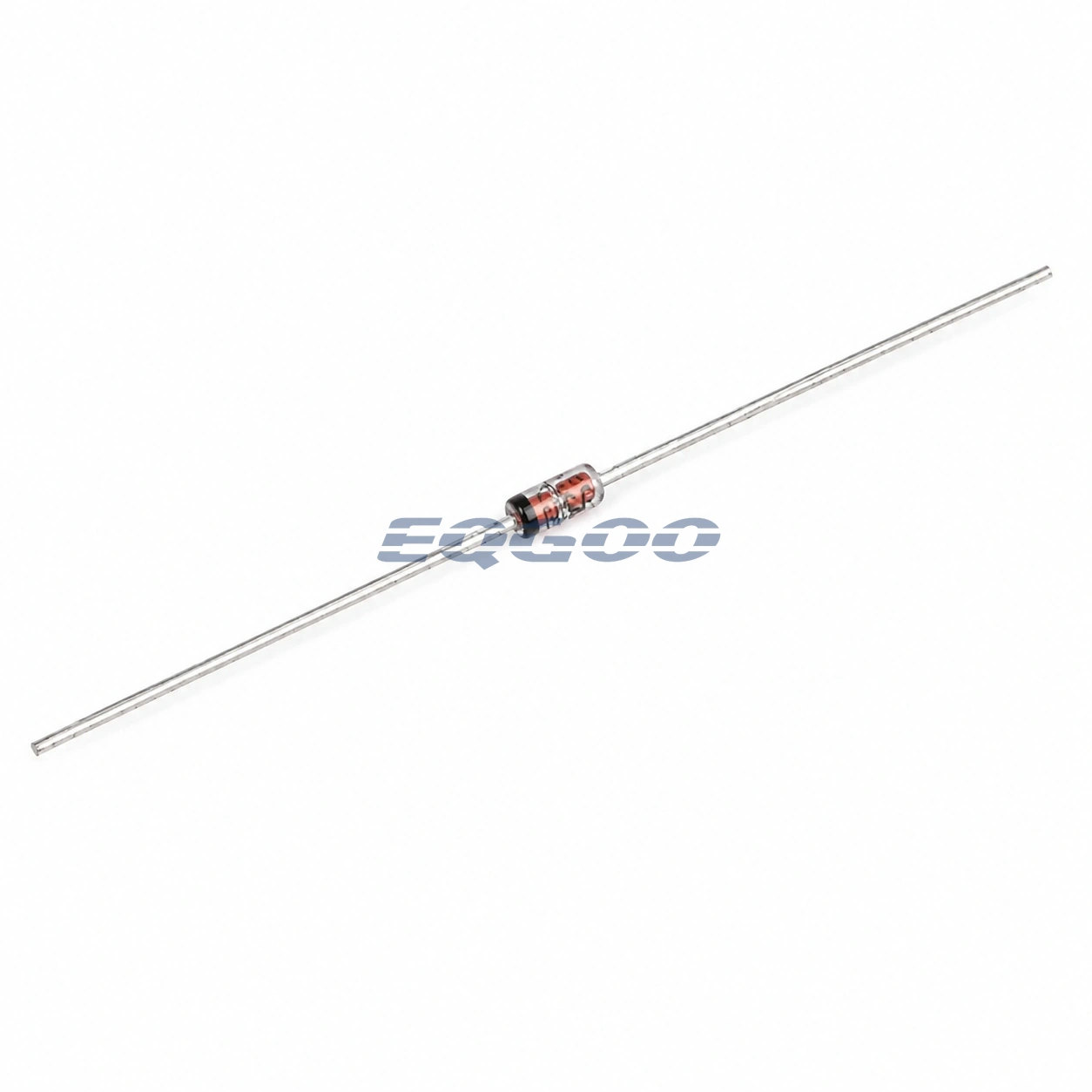

The Microchip 1N914 is a hermetic glass axial switching diode for high-speed signal steering, blocking, detector and general switching functions. It combines a 75 V working reverse rating with low junction capacitance and a 5 ns maximum reverse-recovery specification.
The 200 mA current value is defined with thermal conditions and should not be interpreted as unrestricted current at any ambient temperature.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Breakdown voltage | 100 V |
| Working reverse voltage | 75 V |
| Average rectified current | 200 mA at TA = 75°C |
| Surge current | 2 A peak, 8.3 ms |
| VF max | 0.8 V at 10 mA |
| VF max | 1.2 V at 50 mA |
| Reverse recovery | 5 ns max at IF = IR = 10 mA |
| Capacitance | 4 pF max at 0 V, 1 MHz |
| Junction/storage temperature | -65°C to +175°C |
| Package | DO-35 axial glass |
Design Considerations
Use the cathode band for polarity during assembly and inspection. For repetitive signal switching, reverse-recovery and capacitance can be more important than forward-current rating.
Continuous current should be checked against forward-voltage loss and lead/ambient thermal conditions.
