Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | Medium-power Schottky diode |
| Reverse voltage | 30 V |
| Forward current | 1 A |
| VF maximum | 550 mV at IF = 1 A, pulsed, 25°C |
| Reverse current | 20 µA maximum at 30 V, 25°C |
| Junction capacitance | 33 to 40 pF reference range at 5 V, 1 MHz |
| Package | SOD323 |
| Junction temperature | Up to 150°C |
Product Overview

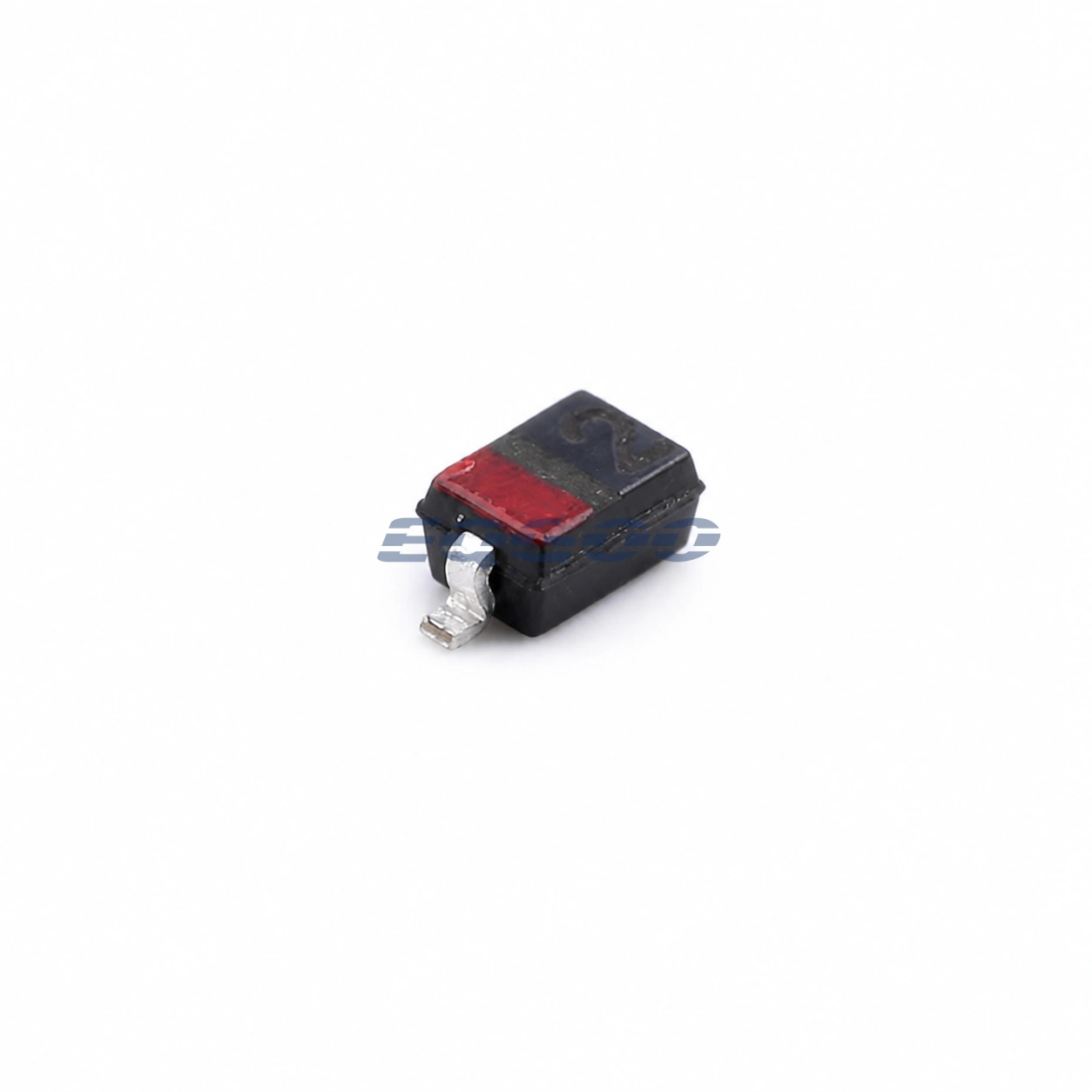

The BAS3010B03WE6327HTSA1 is the full Infineon orderable for the BAS3010B-03W 30 V, 1 A Schottky diode in SOD323. It is intended for low-voltage rectification, DC/DC conversion, clamping and protection where low forward drop is important.
Infineon’s 550 mV maximum forward-voltage figure at 1 A is specified with a short pulsed test. Continuous-current operation needs a separate thermal check because the small SOD323 package cannot be evaluated from the pulsed VF figure alone.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Reverse voltage | 30 V |
| Forward current | 1 A |
| VF typical / max at 1 A | 480 / 550 mV, 25°C pulsed test |
| VF range at 500 mA | Approximately 420 to 480 mV under stated pulsed test |
| Reverse current max | 20 µA at VR = 30 V, 25°C |
| Junction capacitance | 33 to 40 pF at VR = 5 V, 1 MHz |
| Junction-to-solder-point thermal resistance | ≤82 K/W |
| Operating temperature | -65°C to +125°C |
| Maximum junction temperature | 150°C |
| Package | SOD323 |
Design Considerations
Schottky leakage increases strongly with temperature. For reverse-biased standby paths, use the hot leakage curves rather than only the 25°C specification.
At high forward current, copper area around the diode affects junction temperature. Calculate loss from the actual VF/current waveform and use the package thermal path in the board design.
