Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Channels | 2 independent low-side drivers |
| Peak Drive | 5 A typical source / sink each |
| Supply | 4.5 V to 26 V operating range |
| Input Robustness | Input/enable pins tolerate −10 V stated feature |
| Output Robustness | Outputs tolerate −2 V transients stated feature |
| Timing | 17 ns typical delay; ~1 ns channel matching |
| Switch Types | MOSFET, IGBT, SiC and GaN drive |
| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large tape and reel |
Product Overview
UCC27624DR extends the dual 5 A low-side-driver concept to a much wider 26 V operating supply and −10 V input/enable robustness. This can be useful in industrial power stages using higher gate-drive rails or long/noisy control paths.
The two channels are independently enabled and can be paralleled for additional drive. Inputs use VDD-independent TTL-compatible thresholds, simplifying interface from low-voltage control logic even when the gate-driver supply is much higher.
The active DR order code is SOIC-8, 2500-piece large reel. Its 30 V absolute VDD rating should not be confused with the recommended 26 V operating ceiling.
For related devices, see HKEQGOO’s Gate Drivers category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | UCC27624DR |
| Channels | 2 independent low-side drivers |
| Peak Drive | 5 A typical source / sink each |
| Supply | 4.5 V to 26 V operating range |
| Input Robustness | Input/enable pins tolerate −10 V stated feature |
| Output Robustness | Outputs tolerate −2 V transients stated feature |
| Timing | 17 ns typical delay; ~1 ns channel matching |
| Switch Types | MOSFET, IGBT, SiC and GaN drive |
| Exact Package / Packing | SOIC (D), 8 pins; 2500-piece large tape and reel |
| Manufacturer Status | Active / Production |

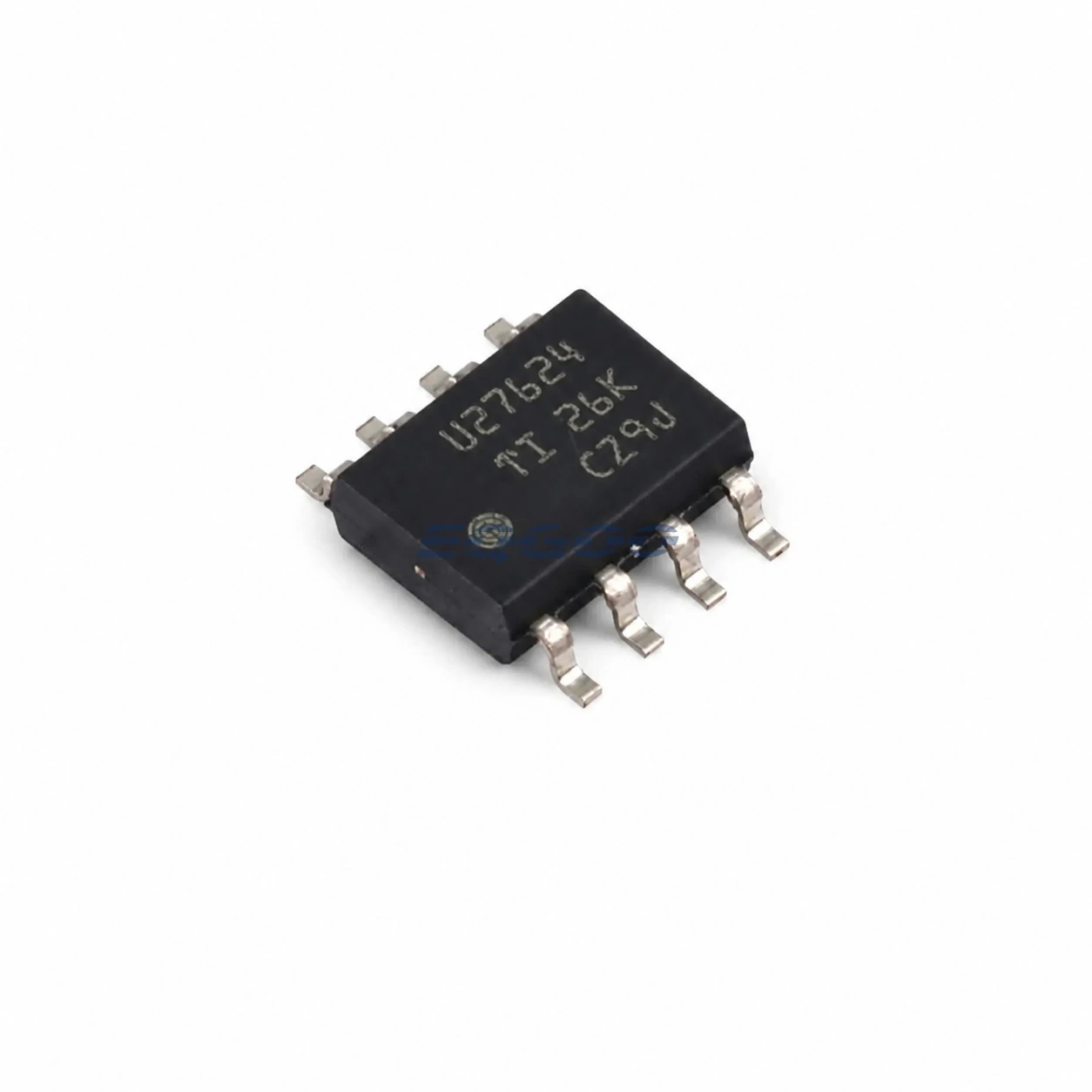

| Part Marking | U27624 |
Functional Highlights
26 V operation supports higher gate-drive rails
This gives more headroom for IGBT/SiC configurations than 18 V-class low-side drivers, while the logic input threshold remains controller-friendly.
−10 V input tolerance targets harsh switching environments
Negative ringing on PWM/enable lines is common near high-dv/dt power stages; the increased tolerance improves robustness but does not replace good grounding/routing.
Design Considerations
- Stay inside 26 V recommended VDD even though the absolute maximum is 30 V.
- Use the −10 V input capability as transient margin, not as a normal signal level.
- Keep each gate loop short; higher VDD and 5 A drive can create severe ringing/EMI with excess inductance.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists UCC27624DR as Active / Production; SOIC (D), 8 pins; 2500-piece large tape and reel; Level-1-260C-UNLIM; −40°C to +150°C; marking U27624.
