Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | SOIC-8 |
| Supply voltage | 4.5V~18V |
| Operating Temperature | -40℃~+140℃ |
| Input Logic Level – Low | 1V~1.4V |
| Input Logic Level – High | 1.9V~2.3V |
| Driven Configuration | Low Side |
| Current – Output Low(IOL) | 5A |
Product Overview

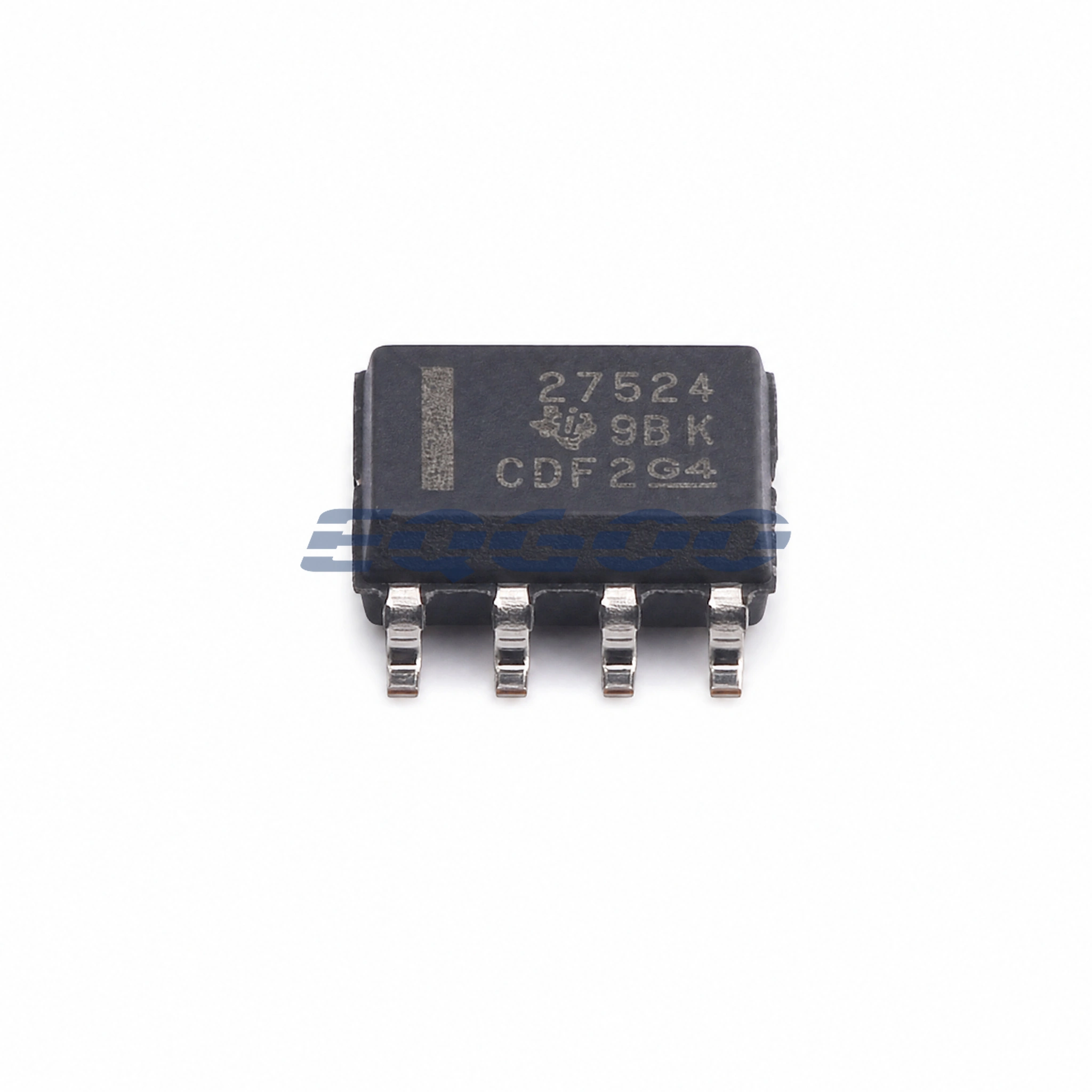

UCC27524DR is a Texas Instruments gate driver identified by the exact orderable code UCC27524DR. Its confirmed technical identity includes Supply voltage 4.5V~18V, Operating Temperature -40℃~+140℃, Input Logic Level – Low 1V~1.4V, Input Logic Level – High 1.9V~2.3V.
The exact device is described as: 4.5V~18V 5A 5A SOIC-8 Gate Drivers. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | SOIC-8 |
| Supply voltage | 4.5V~18V |
| Operating Temperature | -40℃~+140℃ |
| Input Logic Level – Low | 1V~1.4V |
| Input Logic Level – High | 1.9V~2.3V |
| Driven Configuration | Low Side |
| Current – Output Low(IOL) | 5A |
| Rise Time | 7ns |
| Fall Time | 9ns |
| Features | Enable shutdown;Interleaved conduction protection |
| Current – Output High(IOH) | 5A |
| Load Type | MOSFET |
Selection Notes
- Package: SOIC-8
- Supply voltage: 4.5V~18V
- Operating Temperature: -40℃~+140℃
- Input Logic Level – Low: 1V~1.4V
- Input Logic Level – High: 1.9V~2.3V
Application Fit
This exact part is appropriate for designs that require a gate driver with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.
Use the exact SOIC-8 footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
