Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | SOT-583 |
| Operating/input voltage | 3V~17V |
| Output Voltage | 400mV~5.5V |
| Output Current | 1A |
| Frequency – Switching | 1MHz;2.5MHz |
| Topology | Buck |
| Operating Temperature | -40℃~+150℃ |
Product Overview

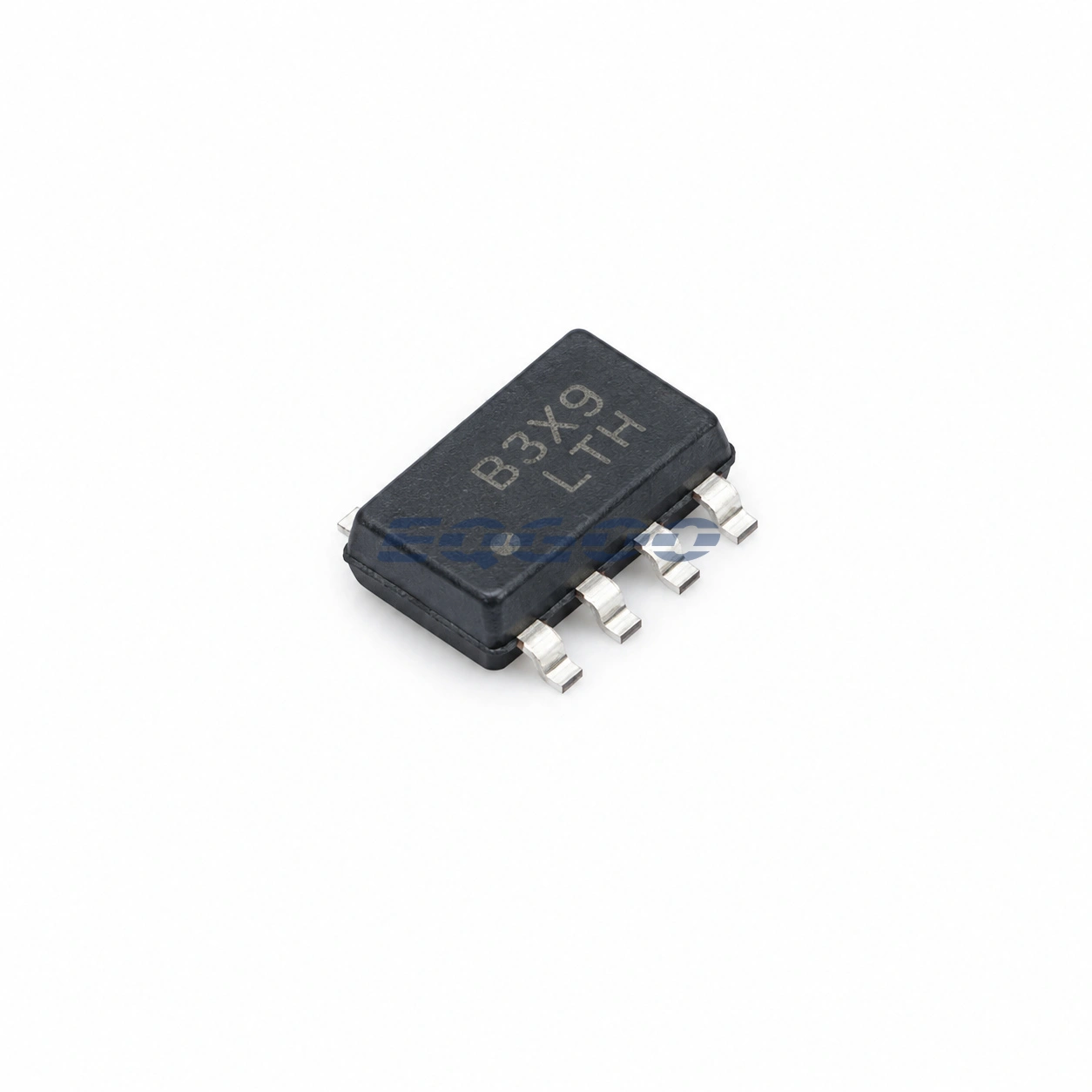

TPS629210QDYCRQ1 is a Texas Instruments DC-DC switching regulator identified by the exact orderable code TPS629210QDYCRQ1. Its confirmed technical identity includes Operating/input voltage 3V~17V, Output Voltage 400mV~5.5V, Output Current 1A, Frequency – Switching 1MHz;2.5MHz.
The exact device is described as: Step-down type Adjustable 400mV~5.5V 1A SOT-583 Voltage Regulators – DC DC Switching Regulators. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | SOT-583 |
| Operating/input voltage | 3V~17V |
| Output Voltage | 400mV~5.5V |
| Output Current | 1A |
| Frequency – Switching | 1MHz;2.5MHz |
| Topology | Buck |
| Operating Temperature | -40℃~+150℃ |
| Function | Step-down type |
| Number of Outputs | 1 |
| Features | Light load efficient mode;Output discharge;Overcurrent Protection;Operating status indication |
| Output Type | Adjustable |
| Switch tube (built-in/external) | Built-in |
| Quiescent Current | 4uA |
Exact-Part Selection Insight
This regulator combines a 3V~17V operating/input range, 1A output-current rating and 1MHz;2.5MHz switching frequency. Those three values interact with inductor/diode or FET selection, capacitor ripple requirements and thermal margin; the current rating should not be evaluated independently of input voltage and switching conditions.
Selection Notes
- Package: SOT-583
- Operating/input voltage: 3V~17V
- Output Voltage: 400mV~5.5V
- Output Current: 1A
- Frequency – Switching: 1MHz;2.5MHz
Application Fit
This exact part is appropriate for designs that require a DC-DC switching regulator with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.
Check current, power dissipation and board thermal conditions at the intended operating point rather than using the headline rating alone.
Use the exact SOT-583 footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
Related Engineering Resources
- Datasheet — verified HKEQGOO-hosted technical document for this exact product identity.
Alternative Parts
The following source-displayed parts may be useful for engineering comparison. They are not claimed to be drop-in replacements; verify electrical ratings, package, pinout, lifecycle, and application conditions before substitution.
- TPS629210QDRLRQ1 — TI; SOT-583-8
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
Alternative Candidates for Engineering Evaluation
Candidate alternative parts require engineering verification before substitution. Electrical characteristics, pinout, package, qualification, and application requirements should be verified before use.
| MPN | Manufacturer | Package |
|---|---|---|
| TPS629210QDRLRQ1 | TI | SOT-583-8 |
