Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | SOT-563 |
| Supply voltage | 1.4V~3.6V |
| Interface | I2C |
| Tolerance | ±0.5℃ |
| Detection Temperature Range | -40℃~+125℃ |
| Standby Current | 1uA |
| Temperature Conversion Time | 26ms |
Product Overview

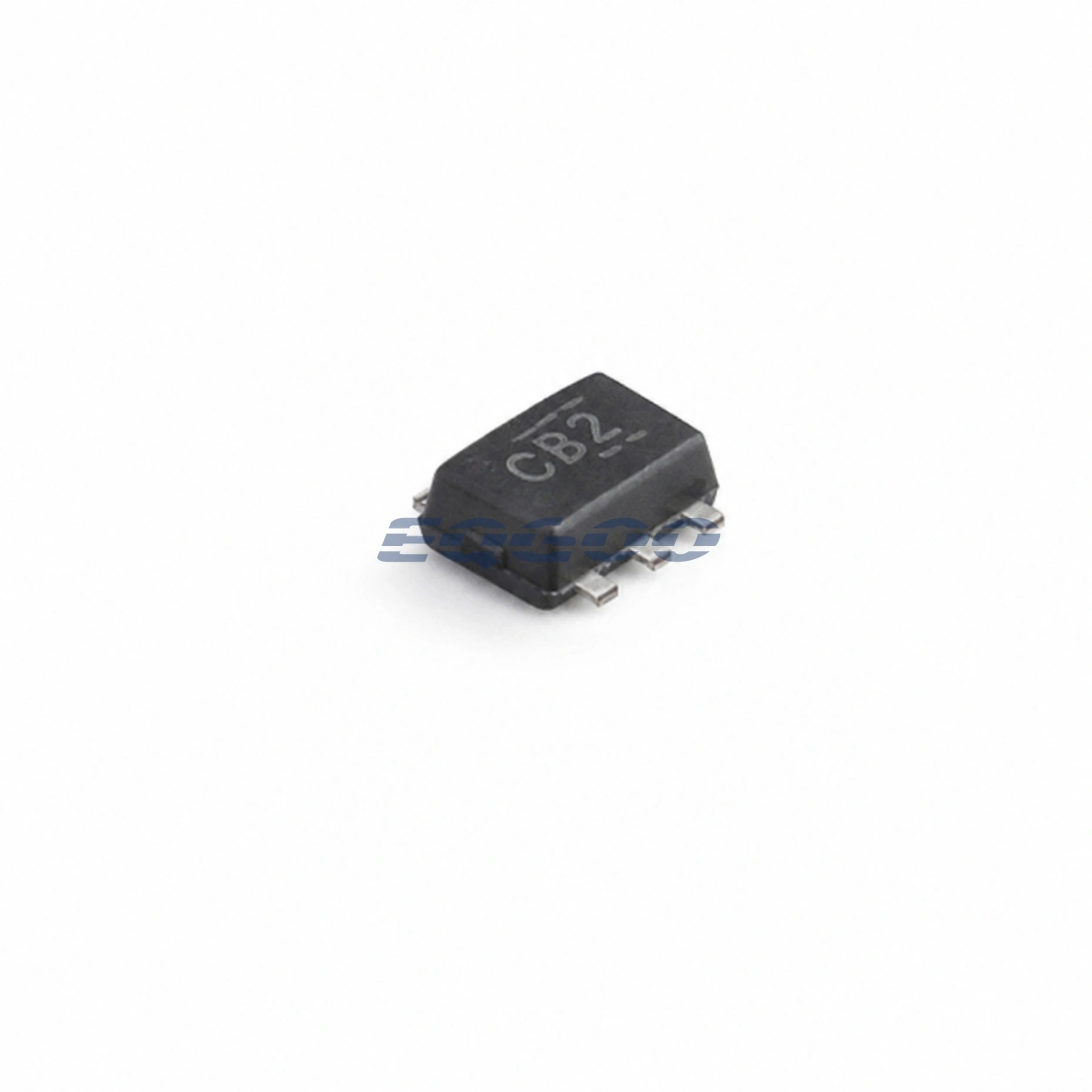

TMP102AIDRLR is a Texas Instruments analog and digital output identified by the exact orderable code TMP102AIDRLR. Its confirmed technical identity includes Supply voltage 1.4V~3.6V, Interface I2C, Tolerance ±0.5℃, Detection Temperature Range -40℃~+125℃.
The exact device is described as: -40℃~+125℃ I2C ±0.5℃ SOT-563 Analog and Digital Output. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | SOT-563 |
| Supply voltage | 1.4V~3.6V |
| Interface | I2C |
| Tolerance | ±0.5℃ |
| Detection Temperature Range | -40℃~+125℃ |
| Standby Current | 1uA |
| Temperature Conversion Time | 26ms |
| Features | Factory temperature calibration;Temperature threshold monitoring;Low-power standby;Configurable temperature output |
| Temperature Resolution | 12bit |
Selection Notes
- Package: SOT-563
- Supply voltage: 1.4V~3.6V
- Interface: I2C
- Tolerance: ±0.5℃
- Detection Temperature Range: -40℃~+125℃
Application Fit
This exact part is appropriate for designs that require a analog and digital output with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.
Verify interface voltage levels, bus topology and timing/data-rate requirements against the rest of the system.
Confirm capacitance, dielectric/tolerance, voltage rating and the exact case size against the circuit and land pattern requirements.
Use the exact SOT-563 footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
Related Engineering Resources
- Datasheet — verified HKEQGOO-hosted technical document for this exact product identity.
Alternative Parts
The following source-displayed parts may be useful for engineering comparison. They are not claimed to be drop-in replacements; verify electrical ratings, package, pinout, lifecycle, and application conditions before substitution.
- TMP112AIDRLR — TI; SOT-563
- TMP112AIDRLR-TUDI — Tudi; SOT-563
- TMP102AIDRLT — TI; SOT-563
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
Alternative Candidates for Engineering Evaluation
Candidate alternative parts require engineering verification before substitution. Electrical characteristics, pinout, package, qualification, and application requirements should be verified before use.
| MPN | Manufacturer | Package |
|---|---|---|
| TMP112AIDRLR | TI | SOT-563 |
| TMP112AIDRLR-TUDI | Tudi | SOT-563 |
| TMP102AIDRLT | TI | SOT-563 |
