Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | SOIC-8 |
| Supply voltage | 4.5V~5.5V |
| Data Rate | 5Mbps |
| Operating Temperature | -55℃~+125℃ |
| Type | CAN Transceiver |
| Features | ESD protection;Bus fault protection;Undervoltage Protection;TXD dominant timeout;Thermal shutdown protection;Silent mode;Integrated level shifting |
| Supply Current | 70mA |

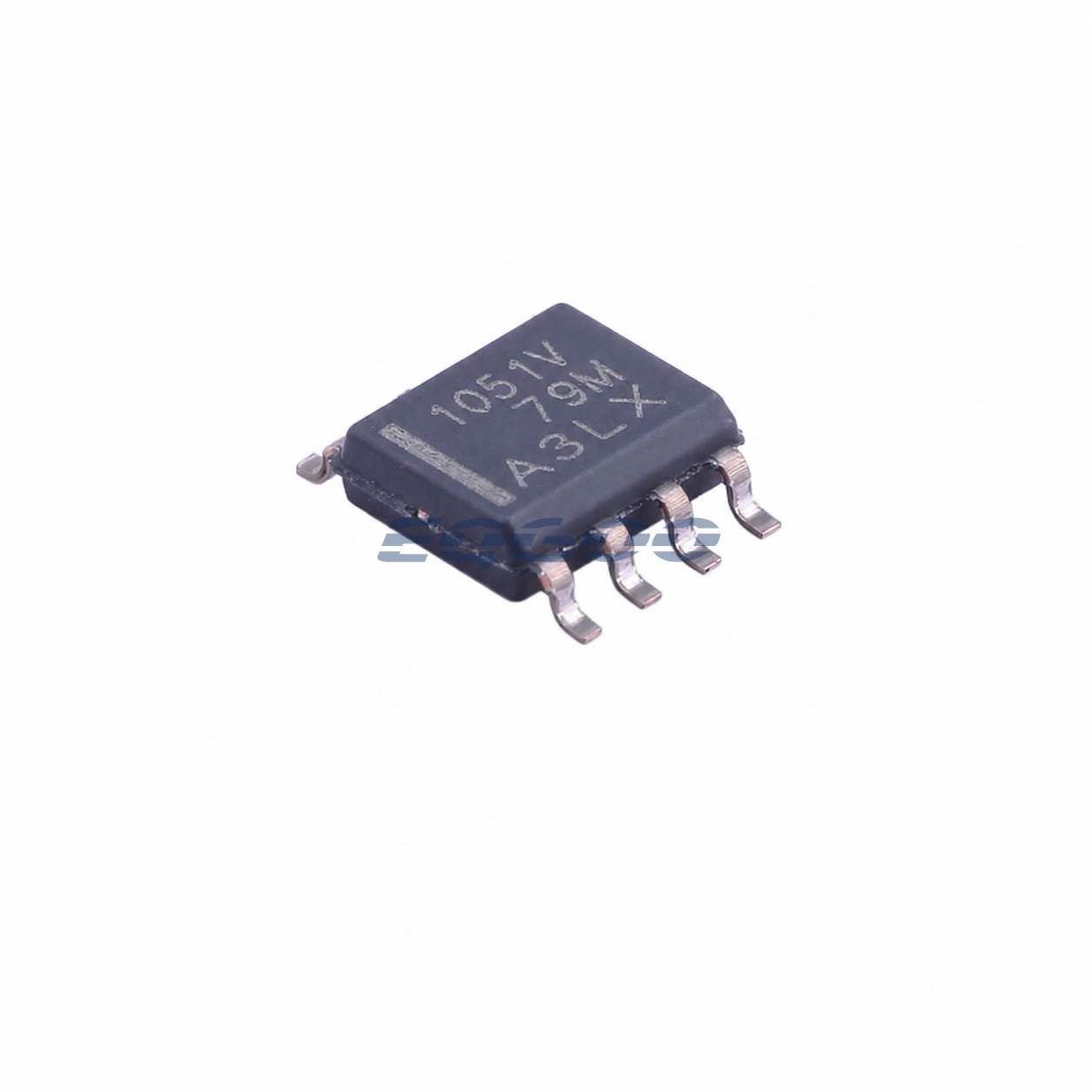

Product Overview
TCAN1051HGVDRQ1 is a Texas Instruments interface transceiver identified by the exact orderable code TCAN1051HGVDRQ1. Its confirmed technical identity includes Supply voltage 4.5V~5.5V, Data Rate 5Mbps, Operating Temperature -55℃~+125℃, Type CAN Transceiver.
The exact device is described as: 4.5V~5.5V CAN Transceiver 5Mbps SOIC-8 Drivers, Receivers, Transceivers. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | SOIC-8 |
| Supply voltage | 4.5V~5.5V |
| Data Rate | 5Mbps |
| Operating Temperature | -55℃~+125℃ |
| Type | CAN Transceiver |
| Features | ESD protection;Bus fault protection;Undervoltage Protection;TXD dominant timeout;Thermal shutdown protection;Silent mode;Integrated level shifting |
| Supply Current | 70mA |
| Quiescent Supply Current | 2.5mA |
Exact-Part Selection Insight
The exact transceiver/interface part is rated for 5Mbps data rate from 4.5V~5.5V supplies. Bus termination, common-mode range, node count and logic-side voltage must match the target network; a protocol-family label by itself is not enough to establish substitution compatibility.
Selection Notes
- Package: SOIC-8
- Supply voltage: 4.5V~5.5V
- Data Rate: 5Mbps
- Operating Temperature: -55℃~+125℃
- Type: CAN Transceiver
Application Fit
This exact part is appropriate for designs that require a interface transceiver with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.
Verify interface voltage levels, bus topology and timing/data-rate requirements against the rest of the system.
Use the exact SOIC-8 footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
Related Engineering Resources
- Datasheet — verified HKEQGOO-hosted technical document for this exact product identity.
Alternative Parts
The following source-displayed parts may be useful for engineering comparison. They are not claimed to be drop-in replacements; verify electrical ratings, package, pinout, lifecycle, and application conditions before substitution.
- XL1051T/3 — XINLUDA; SOP-8
- HX1051/3-S — ZHHXDZ; SOP-8
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
Alternative Candidates for Engineering Evaluation
Candidate alternative parts require engineering verification before substitution. Electrical characteristics, pinout, package, qualification, and application requirements should be verified before use.
| MPN | Manufacturer | Package |
|---|---|---|
| XL1051T/3 | XINLUDA | SOP-8 |
| HX1051/3-S | ZHHXDZ | SOP-8 |
