Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | UFQFPN-28(4×4) |
| Supply voltage | 1.8V~3.6V |
| CPU Core | STM8 |
| Maximum CPU speed | 16MHz |
| Program memory | 32KB |
| Operating Temperature | -40℃~+85℃ |
| Number of I/O | 26 |
Product Overview

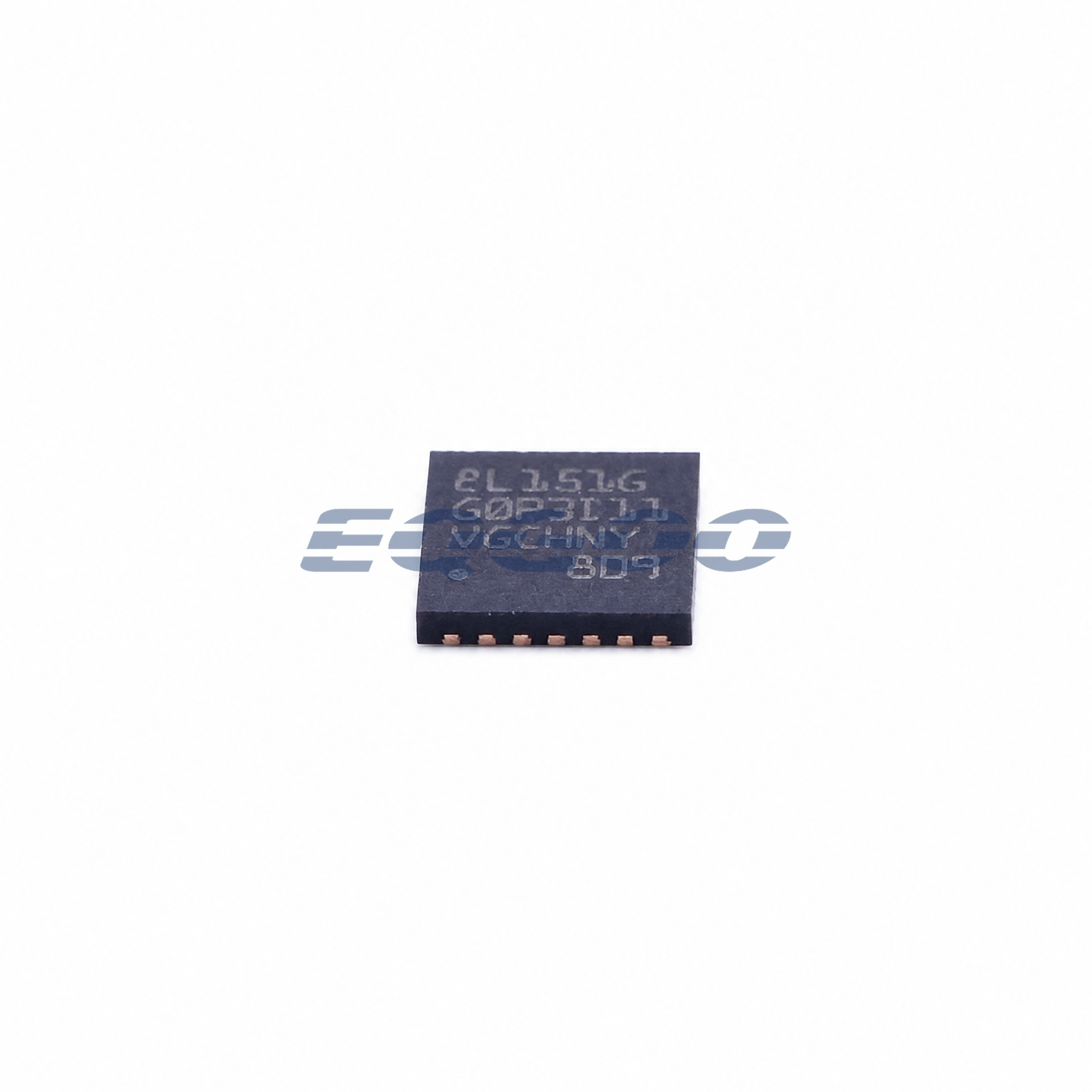

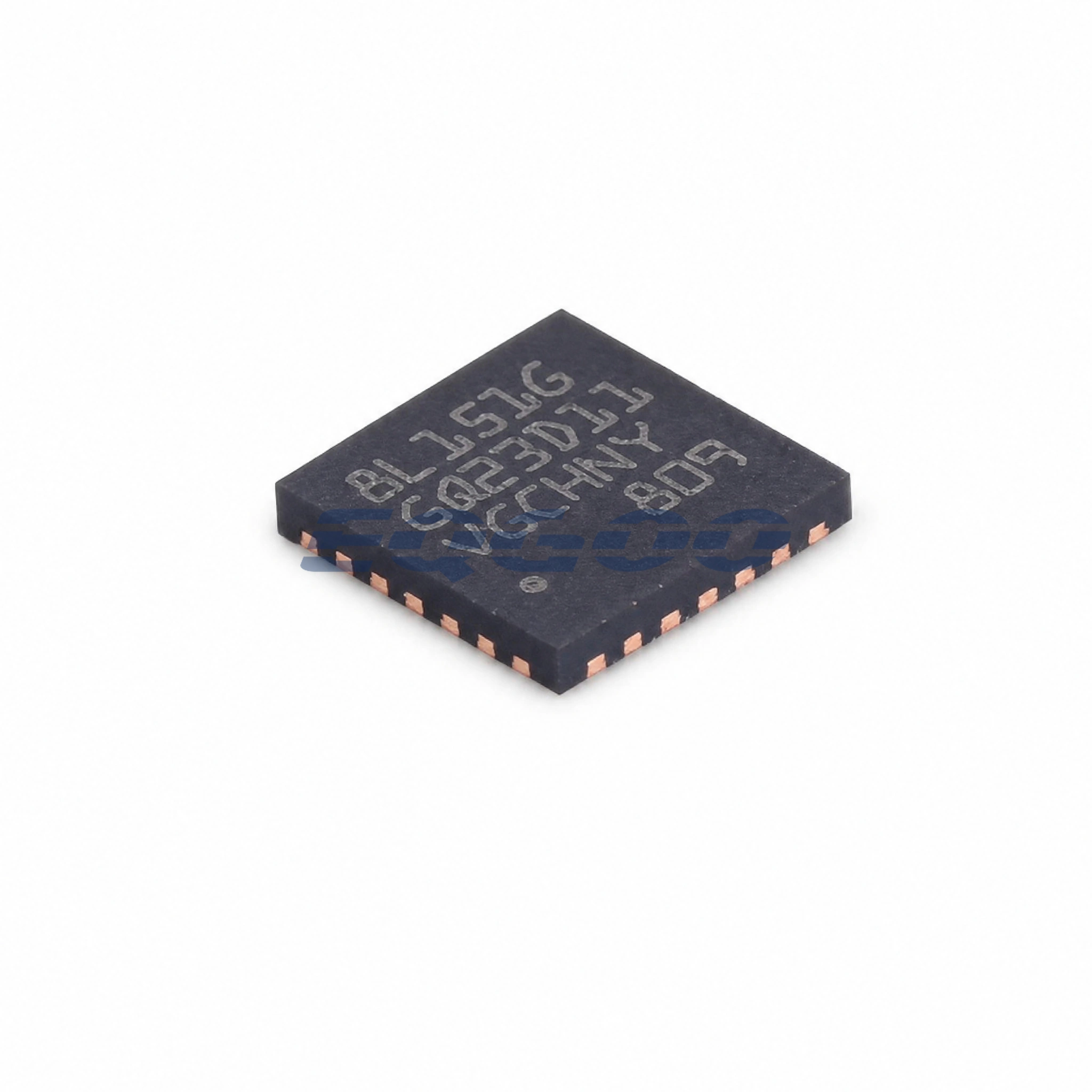

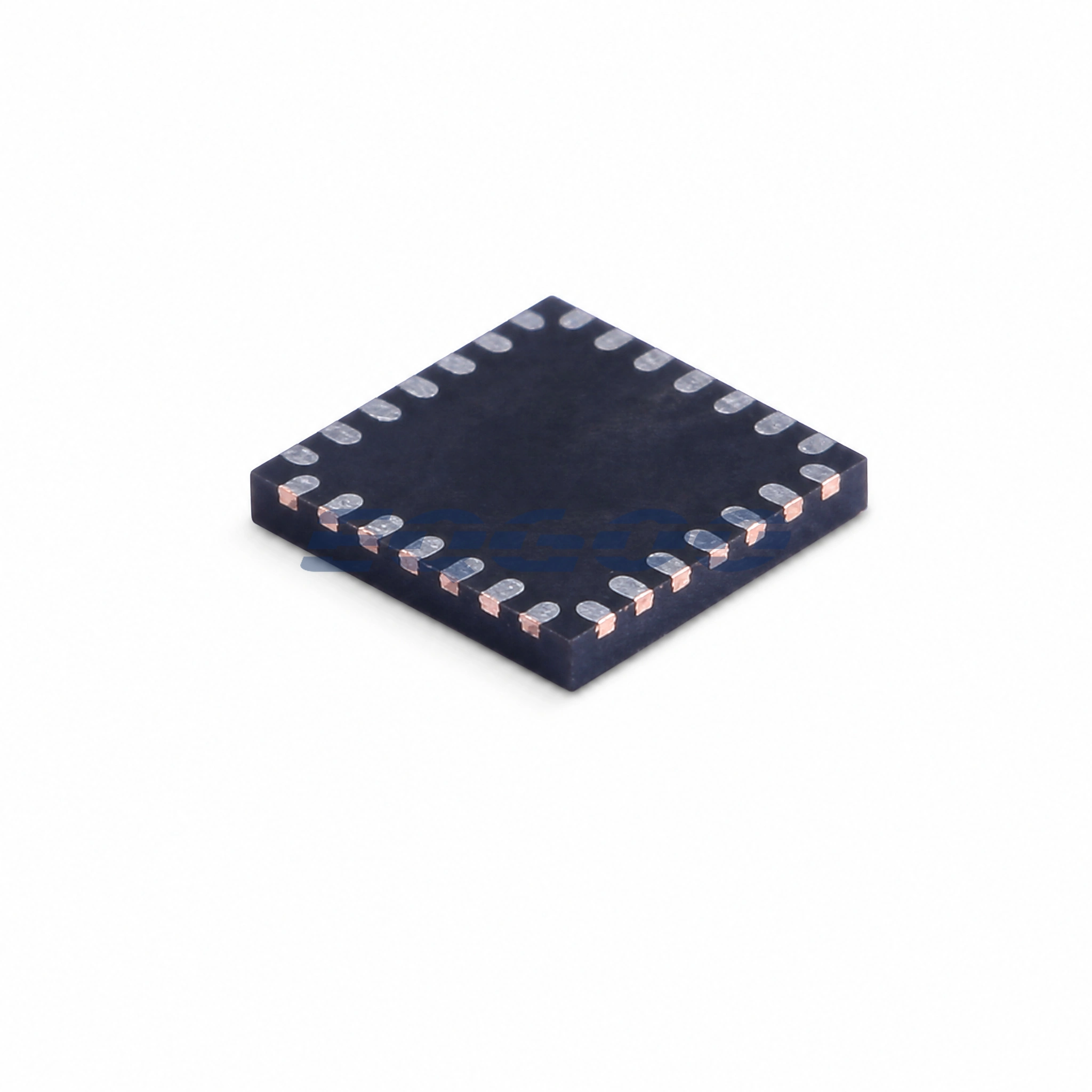

STM8L151G6U6TR is a STMicroelectronics microcontroller identified by the exact orderable code STM8L151G6U6TR. Its confirmed technical identity includes Supply voltage 1.8V~3.6V, CPU Core STM8, Maximum CPU speed 16MHz, Program memory 32KB.
The exact device is described as: STM8 8 Bit 16MHz UFQFPN-28(4×4) Microcontrollers. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | UFQFPN-28(4×4) |
| Supply voltage | 1.8V~3.6V |
| CPU Core | STM8 |
| Maximum CPU speed | 16MHz |
| Program memory | 32KB |
| Operating Temperature | -40℃~+85℃ |
| Number of I/O | 26 |
| DAC (Bit) | 12bit |
| ADC (Bit) | 12bit |
| Program Memory Type | FLASH |
| EEPROM | 1KB |
| Core Size | 8 Bit |
| Oscillator Type | Built-in |
Exact-Part Selection Insight
The exact STM8L151G6U6TR orderable code ties 32KB program memory to the UFQFPN-28(4×4) implementation and 26 listed I/O. Moving to a nearby family member can change memory capacity or pin availability, so the firmware memory map and PCB pinout should be checked together rather than treating the family name as interchangeable.
Selection Notes
- Package: UFQFPN-28(4×4)
- Supply voltage: 1.8V~3.6V
- CPU Core: STM8
- Maximum CPU speed: 16MHz
- Program memory: 32KB
Application Fit
This exact part is appropriate for designs that require a microcontroller with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.
Confirm memory size, available I/O, clocking and required peripheral set for the exact orderable device before freezing firmware and PCB pinout.
Use the exact UFQFPN-28(4×4) footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
