Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | SOIC-8 |
| Supply voltage | 3.3V |
| Data Rate | 1Mbps |
| number of channels | 1 |
| Operating Temperature | -40℃~+85℃ |
| Type | CAN Transceiver |
| Features | ESD protection;Thermal shutdown protection;Bus fault protection;Hot-swap protection |
Product Overview

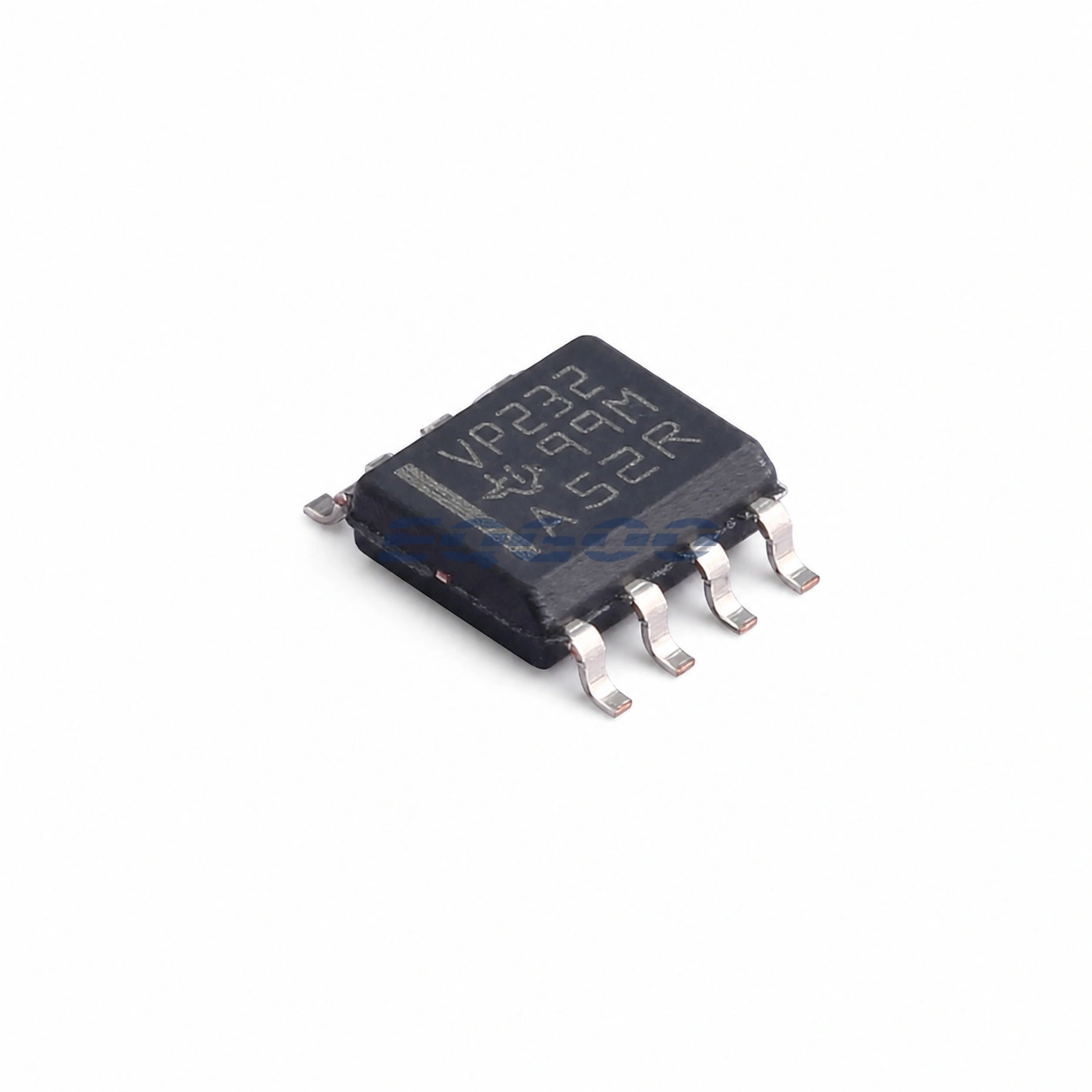

SN65HVD232DR is a Texas Instruments interface transceiver identified by the exact orderable code SN65HVD232DR. Its confirmed technical identity includes Supply voltage 3.3V, Data Rate 1Mbps, number of channels 1, Operating Temperature -40℃~+85℃.
The exact device is described as: 3.3V CAN Transceiver 1Mbps SOIC-8 Drivers, Receivers, Transceivers. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | SOIC-8 |
| Supply voltage | 3.3V |
| Data Rate | 1Mbps |
| number of channels | 1 |
| Operating Temperature | -40℃~+85℃ |
| Type | CAN Transceiver |
| Features | ESD protection;Thermal shutdown protection;Bus fault protection;Hot-swap protection |
| Supply Current | 17mA |
Exact-Part Selection Insight
The exact transceiver/interface part is rated for 1Mbps data rate from 3.3V supplies. Bus termination, common-mode range, node count and logic-side voltage must match the target network; a protocol-family label by itself is not enough to establish substitution compatibility.
Selection Notes
- Package: SOIC-8
- Supply voltage: 3.3V
- Data Rate: 1Mbps
- number of channels: 1
- Operating Temperature: -40℃~+85℃
Application Fit
This exact part is appropriate for designs that require a interface transceiver with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.
Verify interface voltage levels, bus topology and timing/data-rate requirements against the rest of the system.
Use the exact SOIC-8 footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
