Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Channels | 2 bidirectional lines for SDA/SCL |
| Interfaces | I²C and SMBus; also suitable for similar open-drain signals |
| VREF1 | 1.2 V to 3.3 V class |
| VREF2 | 1.8 V to 5.5 V class |
| Direction | No direction pin |
| On-Resistance | 3.5 Ω stated low ON resistance |
| Enable | High-impedance isolation when EN is low |
| Exact Package / Packing | SSOP (DCT), 8 pins; 3000-piece large reel; −40°C to +85°C; marking 7BD variants |
Product Overview
PCA9306DCTR is a classic two-line pass-FET translator focused on I²C/SMBus domain bridging. It allows the pull-ups on each side to establish different bus-high voltages while preserving open-drain wired-AND behavior.
Its low propagation delay is primarily the pass-path delay; real bus speed is still governed by pull-up resistance and capacitance on each side. It is therefore appropriate to think of PCA9306 as a voltage-domain bridge, not an active edge accelerator.
Compared with newer TCA39306, PCA9306 has a higher minimum low-side reference voltage and older temperature/speed positioning. The exact DCTR option is an SSOP-8 3000-piece reel.
For related devices, see HKEQGOO’s Translators, Level Shifters category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | PCA9306DCTR |
| Channels | 2 bidirectional lines for SDA/SCL |
| Interfaces | I²C and SMBus; also suitable for similar open-drain signals |
| VREF1 | 1.2 V to 3.3 V class |
| VREF2 | 1.8 V to 5.5 V class |
| Direction | No direction pin |
| On-Resistance | 3.5 Ω stated low ON resistance |
| Enable | High-impedance isolation when EN is low |
| Exact Package / Packing | SSOP (DCT), 8 pins; 3000-piece large reel; −40°C to +85°C; marking 7BD variants |
| Manufacturer Status | Active / Production |

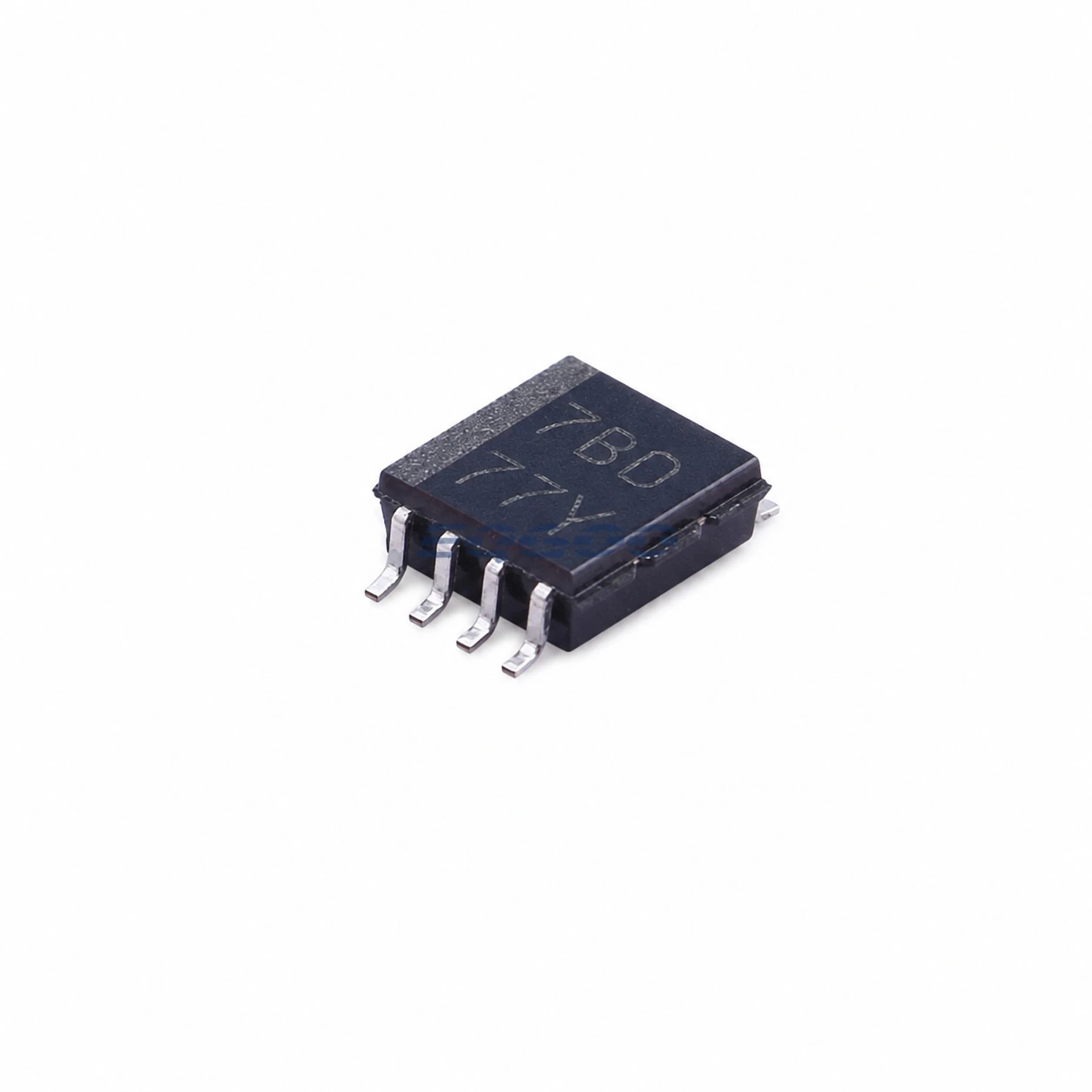

| Part Marking | 7BD family marking variants |
Functional Highlights
Open-drain semantics are preserved across domains
Multiple I²C controllers/slaves can still pull the shared line low without a direction state machine.
EN provides clean bus isolation
A downstream domain can be disconnected during power-off or fault recovery, leaving both sides high impedance.
Design Considerations
- Calculate pull-ups separately on each bus side.
- Do not use the pass translator to “fix” a bus whose capacitance already violates I²C rise-time limits.
- Check VREF1/VREF2 bias relationship during sequencing.
Product Status and Exact Order Code
Texas Instruments/source evidence identifies PCA9306DCTR as Active / Production; SSOP (DCT), 8 pins; 3000-piece large tape and reel; −40°C to +85°C.
