Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Channels | 2 bidirectional SDA/SCL-class lines |
| Protocols | I²C standard/fast/Fast-Mode Plus and SMBus; I3C compatible to 12.5 MHz stated |
| Low-Side Reference | Down to 0.9 V stated |
| High-Side Reference | 1.8 V to 5.5 V class |
| Direction | No DIR pin |
| Enable | High-impedance isolation when EN low |
| Temperature | −40°C to +125°C |

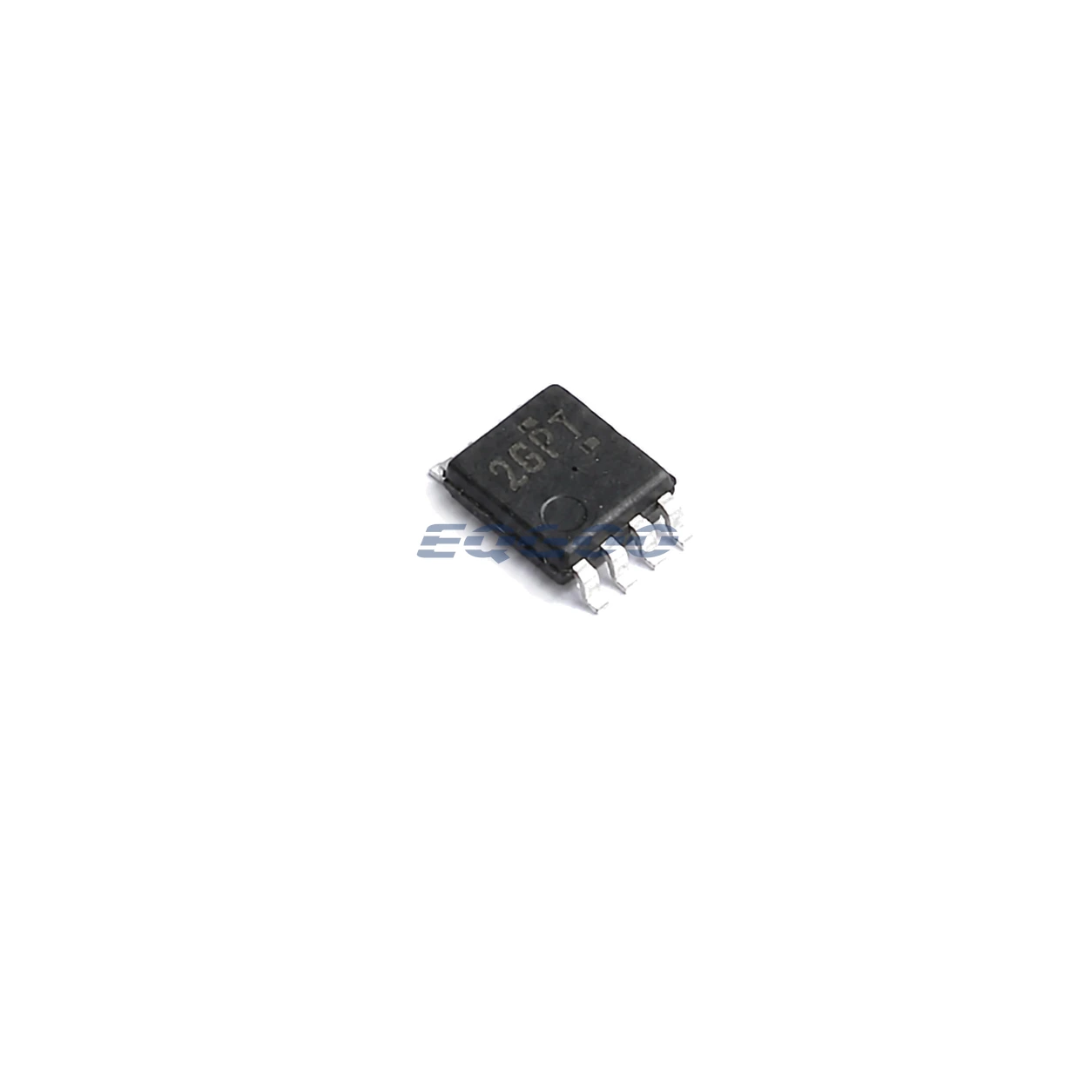

| Exact Package / Packing | VSSOP (DCU), 8 pins; 3000-piece large reel; markings 2GPT/2GVI |
Product Overview
TCA39306DCUR is the newer high-speed two-line translator for modern low-voltage I²C and I3C-adjacent buses. Its 0.9-V low-side support addresses processor domains below the practical range of older PCA9306 implementations.
TI explicitly positions it for Fast-Mode Plus I²C and I3C-compatible operation up to 12.5 MHz. That higher-speed capability still depends on bus capacitance and pull-up/driver behavior, but the device is characterized for a more demanding protocol environment.
The exact DCUR order code is a VSSOP-8 3000-piece reel rated to +125°C, giving both voltage-domain and temperature margin improvements over older bus translators.
For related devices, see HKEQGOO’s Translators, Level Shifters category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TCA39306DCUR |
| Channels | 2 bidirectional SDA/SCL-class lines |
| Protocols | I²C standard/fast/Fast-Mode Plus and SMBus; I3C compatible to 12.5 MHz stated |
| Low-Side Reference | Down to 0.9 V stated |
| High-Side Reference | 1.8 V to 5.5 V class |
| Direction | No DIR pin |
| Enable | High-impedance isolation when EN low |
| Temperature | −40°C to +125°C |
| Exact Package / Packing | VSSOP (DCU), 8 pins; 3000-piece large reel; markings 2GPT/2GVI |
| Manufacturer Status | Active / Production |
| Part Marking | 2GPT / 2GVI |
Functional Highlights
0.9-V domain support fits newer processors
Very-low-voltage controller buses can be translated directly to 1.8/3.3/5-V peripheral domains.
I3C-compatible speed expands beyond legacy 400-kHz translation
The device is appropriate when Fast-Mode Plus or I3C-class edge/timing requirements exceed older PCA9306 positioning.
Design Considerations
- Validate I3C open-drain/push-pull phases against the exact system topology and pull-up scheme.
- Keep bus capacitance within the protocol’s rise/fall budget.
- Sequence reference/bus domains so unpowered devices remain isolated as intended.
Product Status and Exact Order Code
Texas Instruments/source evidence identifies TCA39306DCUR as Active / Production; VSSOP (DCU), 8 pins; 3000-piece large tape and reel; −40°C to +125°C; markings 2GPT/2GVI.
