Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | 7-bit volatile digital rheostat |
| Nominal resistance | 10 kΩ |
| Wiper positions | 128 |
| Interface | I²C-compatible |
| Operating supply | 1.8 V to 5.5 V |
| Configuration | Rheostat |
| Temperature range | -40°C to +125°C |
| Product status | Active exact orderable / family In Production |
Product Overview

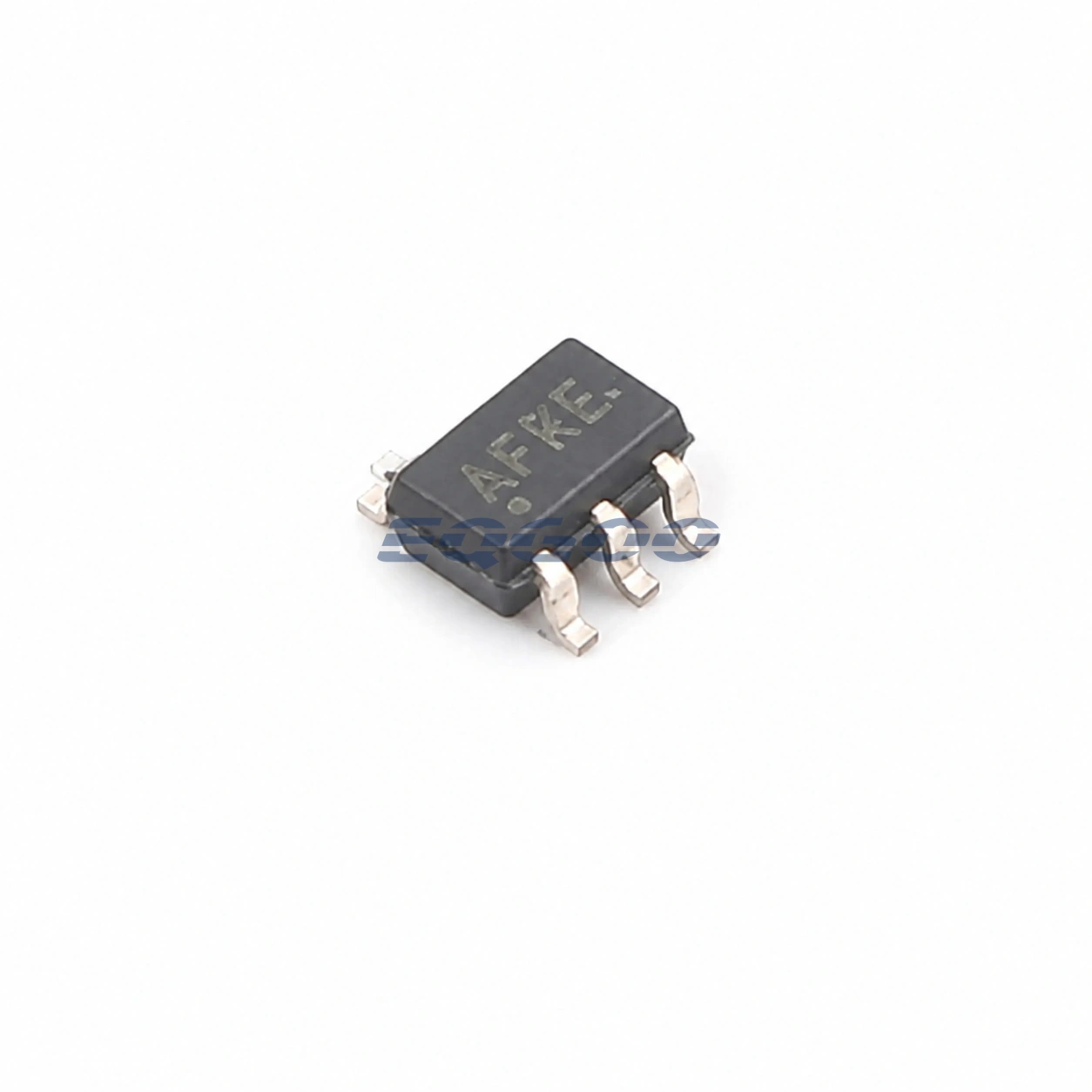

The MCP4017T-103E/LTY is Microchip’s current 10 kΩ tape-and-reel ordering option for the MCP4017 volatile digital rheostat in SC70-6. It provides 128 programmable resistance positions over an I²C-compatible interface and is intended for calibration, trim and programmable resistance functions where the setting can be restored by the host after power-up.
This LTY orderable is particularly relevant when replacing the older MCP4017T-103E/LT code: the electrical design remains based on the MCP4017 -103 device, while procurement should use the currently recognized LTY ordering suffix rather than assuming the legacy reel code remains interchangeable in supply-chain systems.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Resolution | 7 bit / 128 taps |
| Nominal end-to-end resistance | 10 kΩ |
| Resistance tolerance | ±20% orderable-device listing |
| Operating voltage | 1.8 V to 5.5 V |
| Analog characteristics supply range | 2.7 V to 5.5 V |
| I²C fast-mode clock | Up to 400 kHz at 2.7 V to 5.5 V |
| Typical static current | 2.5 µA with interface inactive |
| Typical wiper resistance | Operating-point dependent; datasheet characterizes MCP4017 wiper resistance |
| Power-on behavior | Volatile wiper, mid-scale default |
| Operating temperature | -40°C to +125°C |
| Package | SC70-6 |
Design Considerations
The MCP4017 is a rheostat, not a three-terminal potentiometer. Its pinout and resistor-terminal access should therefore be checked against the circuit topology before substituting an MCP4018, MCP4019 or another digital-potentiometer family.
Because the wiper memory is volatile, firmware should write the required operating code after startup if the circuit depends on a calibrated value. The 10 kΩ end-to-end tolerance and wiper resistance should be included in absolute-resistance error calculations.
