Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | Analog temperature sensor |
| Output slope | 10 mV/°C |
| Output offset | 600 mV |
| Supply range | 2.7 V to 10 V |
| Temperature range | −30°C to +100°C sensor family |
| B-grade specified range | −25°C to +85°C |
| B-grade accuracy | ±3°C class over −25°C to +85°C |
| Supply current | 125 µA maximum class |
| Package | TO-92 |
Product Overview

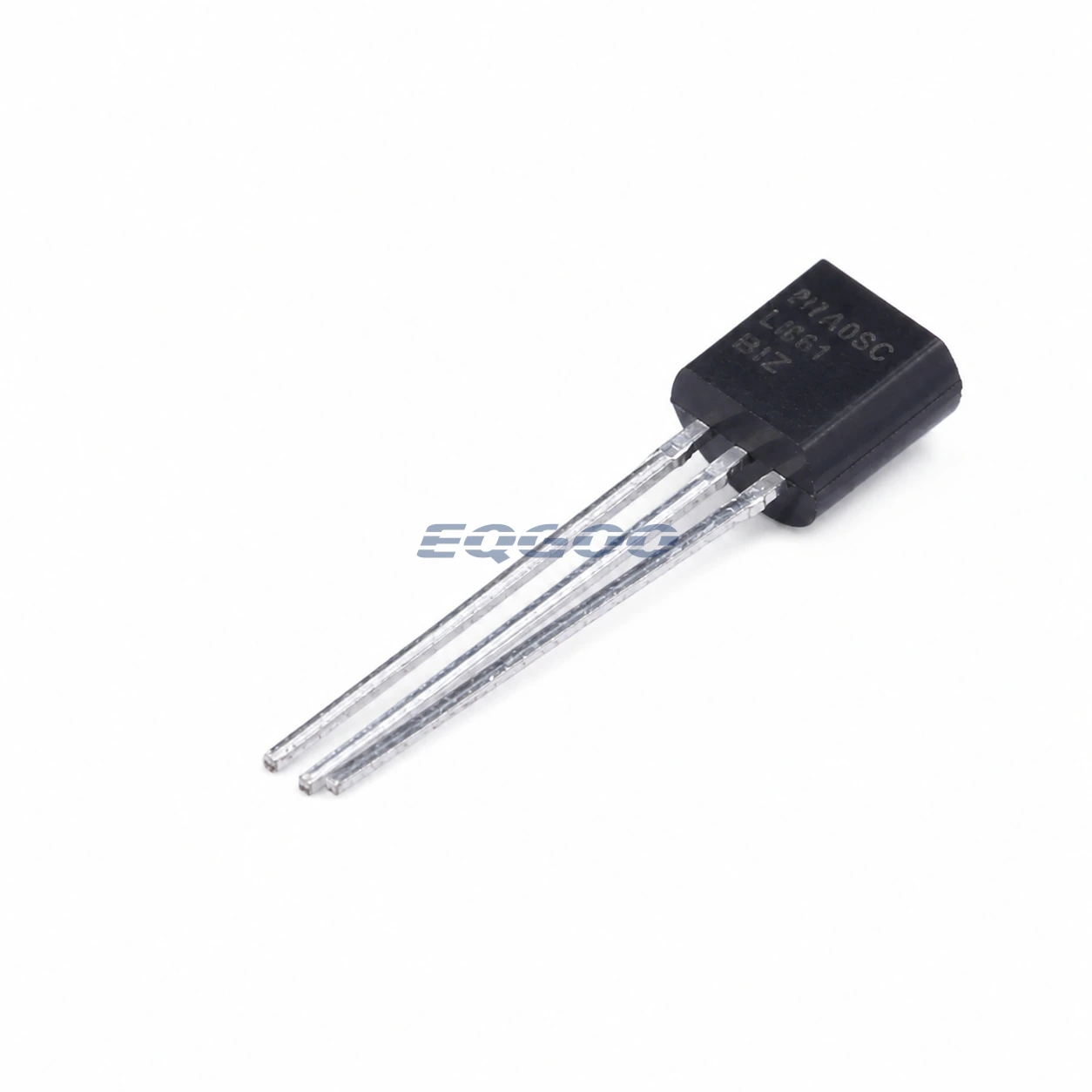

LM61BIZ/NOPB is a three-terminal analog temperature sensor with an output of 10 mV/°C plus a 600 mV offset. The offset keeps the output positive for temperatures below 0°C, allowing straightforward measurement with a single-supply ADC.
The BIZ orderable uses the through-hole TO-92 package and is specified over the B-grade −25°C to +85°C accuracy range.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Sensitivity | 10 mV/°C |
| Offset | 600 mV |
| Supply voltage | 2.7 V to 10 V |
| Sensor range | −30°C to +100°C |
| B-grade operating specification | −25°C to +85°C |
| Accuracy class | ±3°C over B-grade range |
| Supply current | ≤125 µA class |
| Package | TO-92 |
ADC Interface Considerations
Temperature is derived directly from output voltage using the sensor’s 600 mV offset and 10 mV/°C slope. ADC reference tolerance and input error should be added to the sensor accuracy when estimating total temperature uncertainty.
