Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | HSIC USB 2.0 to 10/100 Ethernet controller |
| USB interface | High-Speed Inter-Chip (HSIC) USB 2.0 |
| Ethernet | Integrated 10/100 MAC and PHY |
| Package | 56-pin QFN |
| Temperature range | -40°C to +85°C |
| Packing | Tray |
| Product status | In Production |
| Exact order code | LAN9730I-ABZJ |
Product Overview

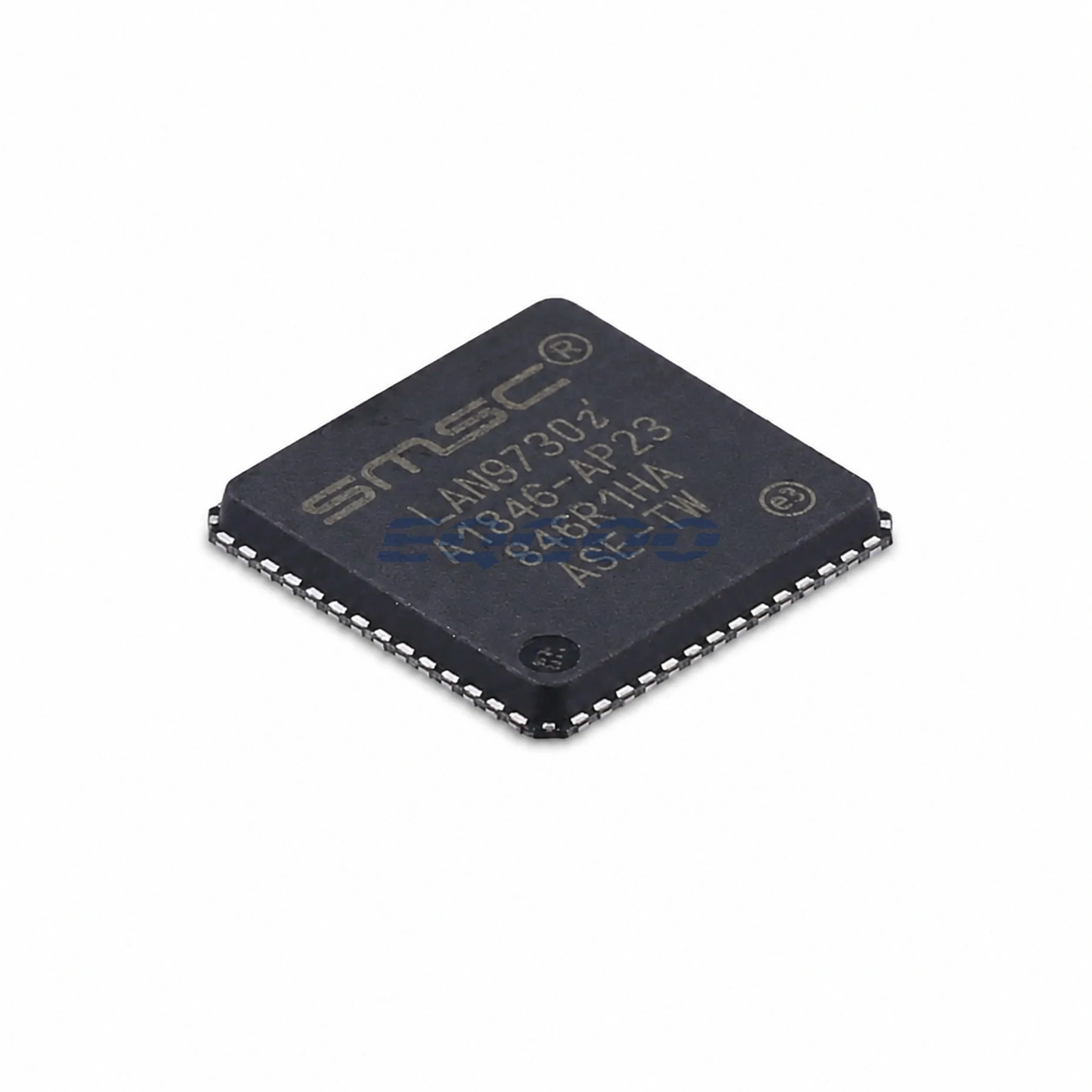

The LAN9730I-ABZJ is Microchip’s industrial-temperature HSIC USB 2.0 to 10/100 Ethernet controller. Unlike a conventional external USB transceiver bridge, the LAN9730 uses the High-Speed Inter-Chip USB interface for direct connection between ICs on the same board while integrating the Ethernet MAC and PHY.
The I-ABZJ order code identifies the -40°C to +85°C industrial version in a 56-pin QFN tray package. The HSIC interface is the main architectural selection point: this device is intended for embedded inter-chip USB connectivity rather than a standard external USB connector PHY path.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| USB architecture | USB 2.0 HSIC |
| Ethernet | 10/100 Mbps |
| Ethernet MAC | Integrated |
| Ethernet PHY | Integrated |
| Core regulation | Internal regulator can be enabled or bypassed |
| Main I/O supply | 3.3 V system interface architecture |
| Package | 56-pin QFN |
| Temperature range | -40°C to +85°C |
| Packing | Tray |
| Product status | In Production |
Design Considerations
HSIC routing rules differ from conventional USB D+/D− routing because the interface is designed for short inter-chip connections. Preserve the HSIC timing, impedance and routing guidance instead of treating it like an external USB cable interface.
The integrated Ethernet PHY still needs the appropriate magnetics and connector network. Power sequencing and the internal-versus-external core-regulator choice should also follow the exact LAN9730 power-connection guidance.
Related Engineering Resources
- LAN9730/LAN9730i High-Speed Inter-Chip USB 2.0 to 10/100 Ethernet Controller Data Sheet
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
