Procurement Snapshot
| Procurement Field | Value |
|---|---|
| Exact MPN | IMZC120R017M2HXKSA1 |
| Manufacturer | Infineon Technologies |
| Package | TO-247-4 |
| Availability | Request current stock and lead time by RFQ |
| Datasheet | Verified PDF |
Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Drain to Source Voltage | 1.2kV |
| Gate Threshold Voltage (Vgs(th)) | 5.1V |
| Current – Continuous Drain(Id) | 97A |
| Pd – Power Dissipation | 382W |
| Operating Temperature | -55℃~+175℃ |
| Type | N-Channel |
| Package | TO-247-4 |
| Output Capacitance(Coss) | 126pF |
Product Overview

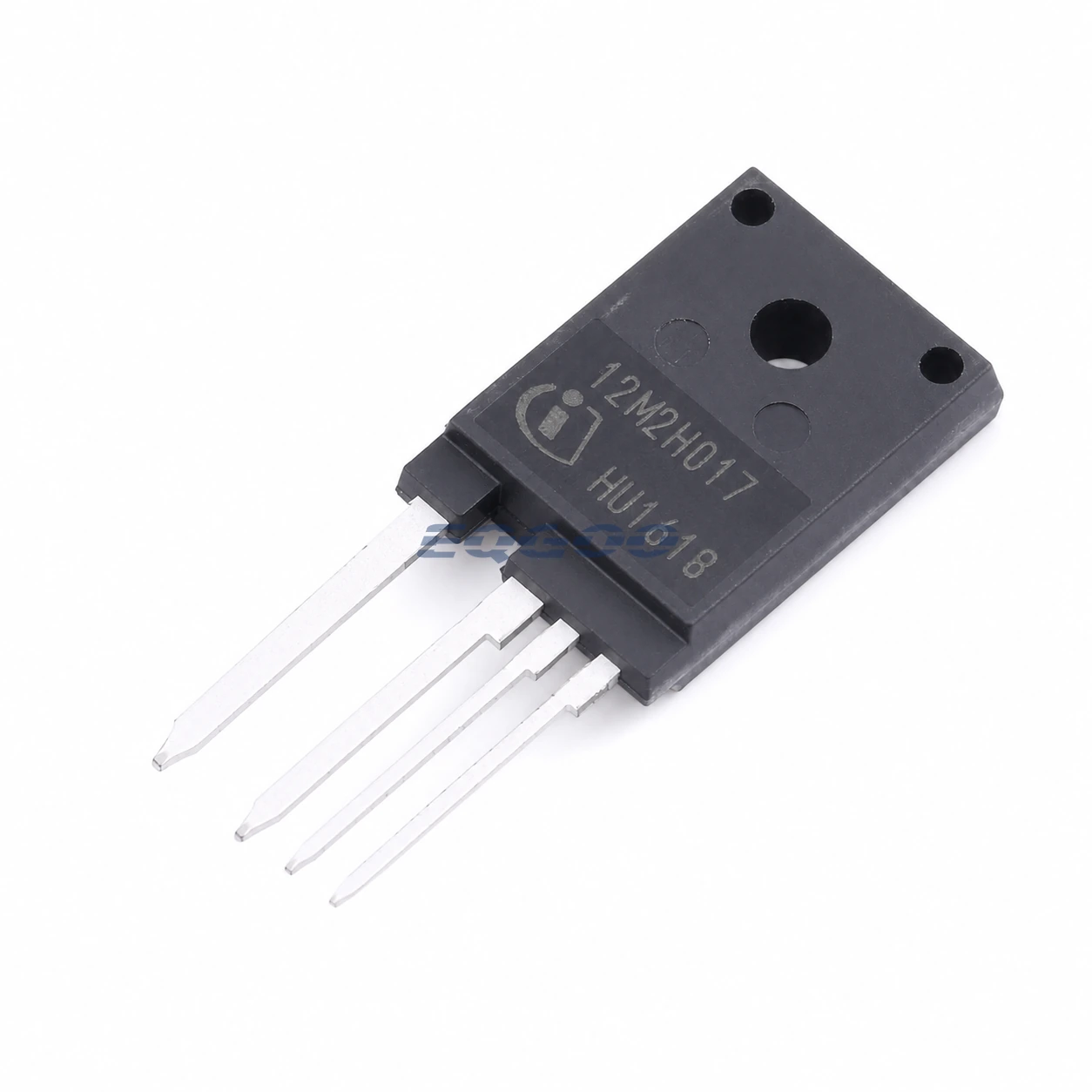

IMZC120R017M2HXKSA1 is a 1.2kV 97A 5.1V 382W 17mΩ 1 N-channel N-Channel TO-247-4 Single FETs, MOSFETs from Infineon Technologies. The exact manufacturer order code is preserved for BOM, RFQ and incoming-inspection control. The verified package is TO-247-4, and the verified functional category is MOSFETs. Confirmed selection data for this exact listing includes Drain to Source Voltage 1.2kV, Gate Threshold Voltage (Vgs(th)) 5.1V, Current – Continuous Drain(Id) 97A, Pd – Power Dissipation 382W.
Alternative Candidates
| MPN | Manufacturer | Package |
|---|---|---|
| IMYR140R019M2HXLSA1 | Infineon | TO247-4 |
| AIMZH120R020M1TXKSA1 | Infineon | TO-247-4 |
| AIMZHN120R020M1TXKSA1 | Infineon | TO-247-4 |
| IMZA120R020M1HXKSA1 | Infineon | TO-247-4 |
| SG2M023120LJ | Sichainsemi | TO-247-4L |
| IMZA120R012M2HXKSA1 | Infineon | TO-247-4 |
| JNCF120R016ZJ2 | JIAENSEMI | TO-247-4 |
| NCES120P020T4 | NCE | TO-247-4L |
| SCT020W120G3-4AG | ST | HiP247-4 |
| NCES120P013T4 | NCE | TO-247-4L |
These candidates are listed by LCSC. Verify electrical characteristics, pinout, package, qualification and application requirements before substitution.
Quality & RFQ Support
For quotation or inspection requirements, provide the exact MPN, quantity, destination, target Date Code if applicable, and any requested third-party testing before shipment.
