Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | SOD-923 |
| Operating Temperature | -40℃~+125℃ |
| Clamping Voltage | 10V |
| Peak Pulse Current (Ipp) | 8A@8/20us |
| Peak Pulse Power Dissipation (Ppp) | 80W@8/20us |
| Voltage – Breakdown | 5.6V |
| type | ESD |
Product Overview

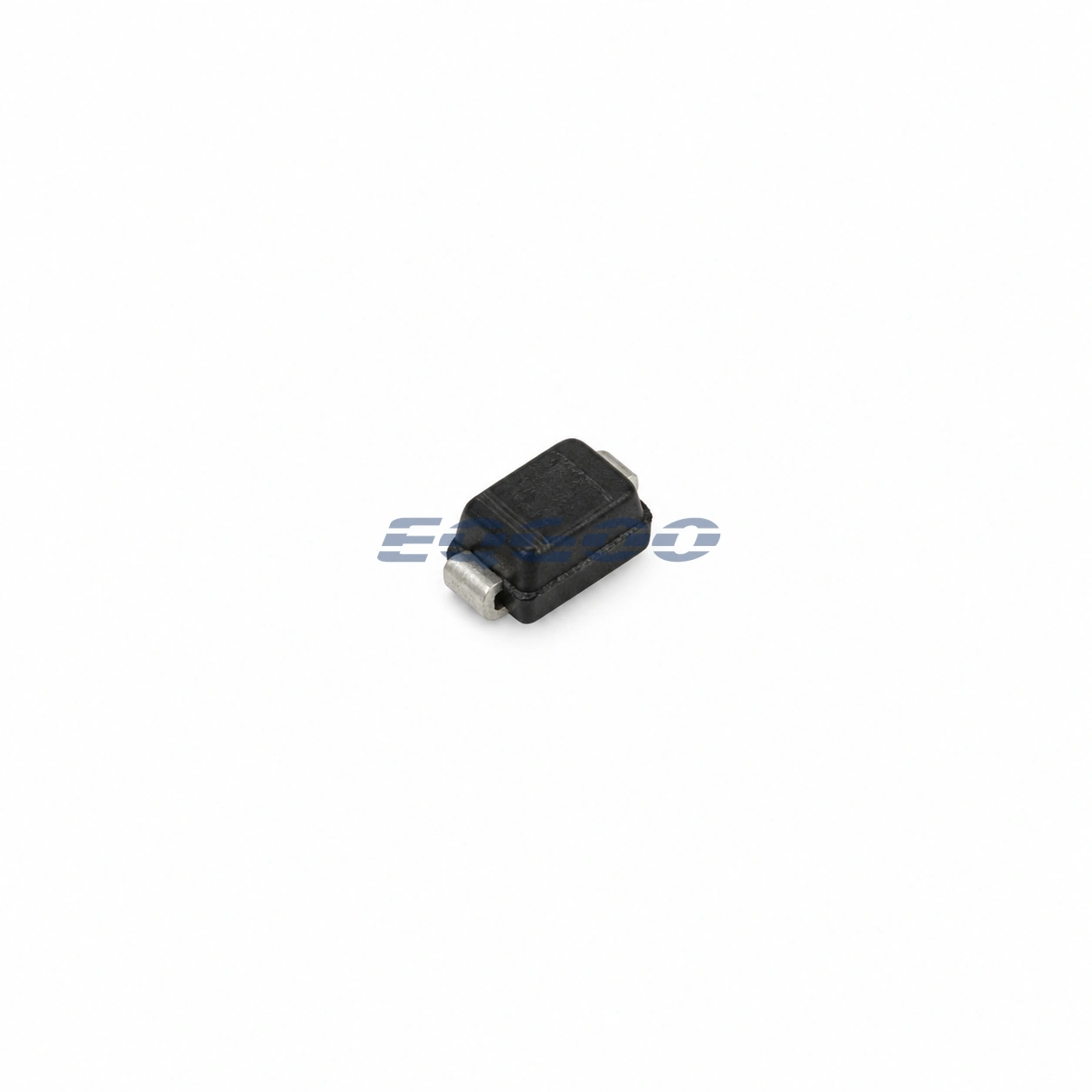

ESD9B5.0ST5G-SL is a Slkor diode / rectifier identified by the exact orderable code ESD9B5.0ST5G-SL. Its confirmed technical identity includes Operating Temperature -40℃~+125℃, Clamping Voltage 10V, Peak Pulse Current (Ipp) 8A@8/20us, Peak Pulse Power Dissipation (Ppp) 80W@8/20us.
The exact device is described as: 10V 8A@8/20us 80W@8/20us 5.6V Bidirectional 5V SOD-923 TVS Diodes. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | SOD-923 |
| Operating Temperature | -40℃~+125℃ |
| Clamping Voltage | 10V |
| Peak Pulse Current (Ipp) | 8A@8/20us |
| Peak Pulse Power Dissipation (Ppp) | 80W@8/20us |
| Voltage – Breakdown | 5.6V |
| type | ESD |
| Polarity | Bidirectional |
| Reverse Leakage Current (Ir) | 100nA |
| Reverse Stand-Off Voltage (Vrwm) | 5V |
Selection Notes
- Package: SOD-923
- Operating Temperature: -40℃~+125℃
- Clamping Voltage: 10V
- Peak Pulse Current (Ipp): 8A@8/20us
- Peak Pulse Power Dissipation (Ppp): 80W@8/20us
Application Fit
This exact part is appropriate for designs that require a diode / rectifier with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Use the exact SOD-923 footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
