Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Manufacturer | Littelfuse |
| Exact MPN | SMBJ30CA |
| Product Category | TVS Diodes |
| Package | DO-214AA |
| Packing | 3,000 pcs/reel |
| Polarity | Bidirectional |
| Reverse Standoff Voltage (VRWM) | 30V |
| Clamping Voltage | 48.4V |
| Peak Pulse Current (IPP) | 12.4A |

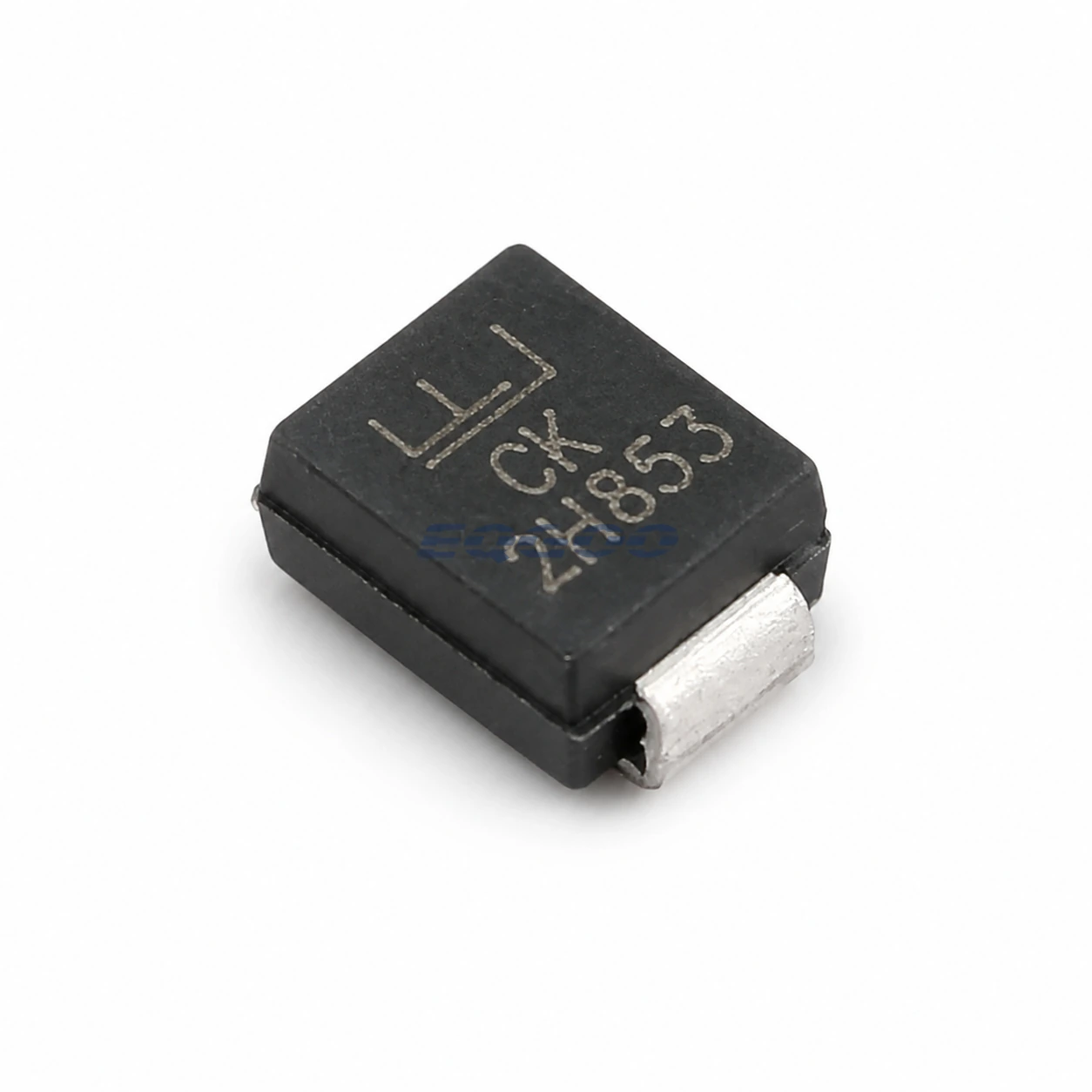

Product Overview
Bidirectional, surface-mount 600 W TVS diode for suppressing voltage transients from lightning and other transient events.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Littelfuse |
| Exact MPN | SMBJ30CA |
| Functional Category | TVS Diodes |
| Package | DO-214AA |
| Packing | 3,000 pcs/reel |
| Source Catalog ID | C83847 |
| Polarity | Bidirectional |
| Reverse Standoff Voltage (VRWM) | 30V |
| Clamping Voltage | 48.4V |
| Peak Pulse Current (IPP) | 12.4A |
Selection Notes
Exact comparison anchors for SMBJ30CA: Polarity: Bidirectional; Reverse Standoff Voltage (VRWM): 30V; Clamping Voltage: 48.4V; Peak Pulse Current (IPP): 12.4A.
Coordinate VRWM with the normal signal/rail voltage and verify clamping voltage plus pulse-current/power capability for the surge waveform.
Design Considerations
- Coordinate VRWM with the normal signal/rail voltage and verify clamping voltage plus pulse-current/power capability for the surge waveform.
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. Physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
For SMBJ30CA quotation, provide the exact MPN, required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
