Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Configuration | 2 channels, each 4:1 |
| Single Supply | 5 V to 24 V |
| Dual Supply | Up to ±12 V; asymmetric supplies supported |
| Logic | 1.8 V compatible control |
| Signal Path | Rail-to-rail from VSS to VDD, bidirectional |
| Switching | Break-before-make |
| Temperature | −55°C to +125°C family range |
| Exact Package / Packing | TSSOP (PW), 16 pins; active large-reel option |
Product Overview
TMUX4052PWR is a modern dual 4:1 multiplexer for signal ranges that exceed 5 V. It can operate from a 24 V single supply, ±12 V dual supplies or asymmetric rails, while still accepting 1.8 V logic controls from a low-voltage processor.
Its two 4:1 banks make it suitable for differential or paired analog channels, although channel matching and source impedance should still be evaluated for precision differential measurements. It is pin-compatible in concept with industry-standard 4052-class muxes while offering modern logic thresholds.
Wide analog voltage range is the core selection value here; a low-voltage precision TMUX110x part may offer lower leakage/Ron precision but cannot replace the ±12 V signal capability.
For related devices, see HKEQGOO’s Analog Switches & Multiplexers category.
Technical Specifications

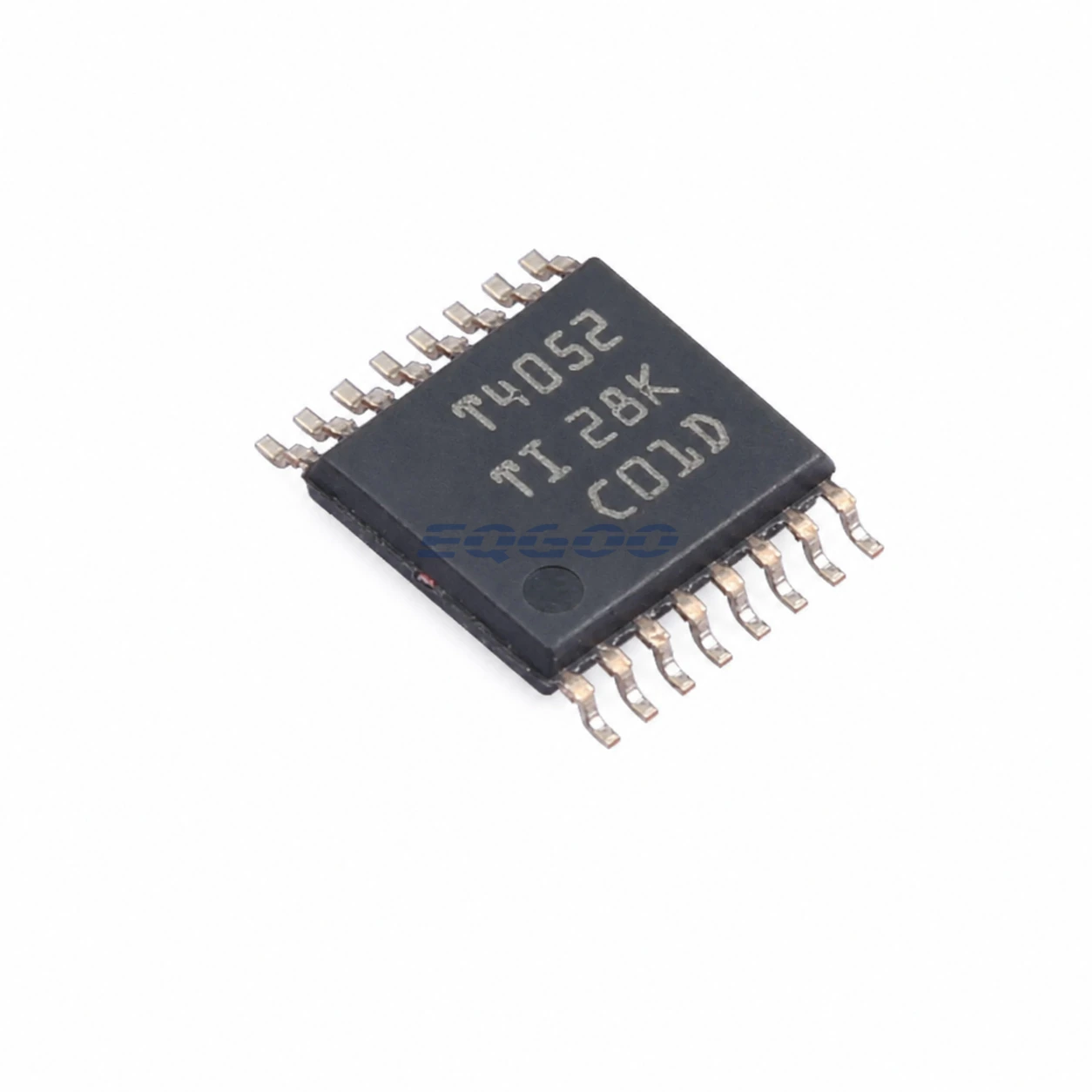

| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TMUX4052PWR |
| Configuration | 2 channels, each 4:1 |
| Single Supply | 5 V to 24 V |
| Dual Supply | Up to ±12 V; asymmetric supplies supported |
| Logic | 1.8 V compatible control |
| Signal Path | Rail-to-rail from VSS to VDD, bidirectional |
| Switching | Break-before-make |
| Temperature | −55°C to +125°C family range |
| Exact Package / Packing | TSSOP (PW), 16 pins; active large-reel option |
| Manufacturer Status | Active / Production |
| Part Marking | T4052 family PWR marking per TI addendum |
Functional Highlights
High analog rails and low-voltage logic can coexist
A 1.8 V MCU can select ±10 V-class industrial signals without discrete logic translation, simplifying mixed-voltage DAQ control.
Dual-bank topology suits paired signals but does not guarantee perfect pair matching
Settling and gain error still depend on each bank’s on-resistance/capacitance and the external source/load network.
Design Considerations
- Choose VDD/VSS from the actual signal extrema with switching/transient margin.
- For differential pairs, validate bank-to-bank mismatch and settling in the complete ADC/input network.
- Do not use 24 V capability as a substitute for external surge/fault protection.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TMUX4052PWR as Active / Production; TSSOP (PW), 16 pins; large tape-and-reel option; −55°C to +125°C.
