Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | Low-leakage switching diode |
| Continuous reverse voltage | 75 V |
| Repetitive peak reverse voltage | 85 V |
| Forward current | 215 mA maximum |
| Repetitive peak forward current | 500 mA |
| Reverse recovery time | 3 µs maximum |
| Capacitance | 2 pF maximum |
| Packing | 3,000 pieces |
Product Overview

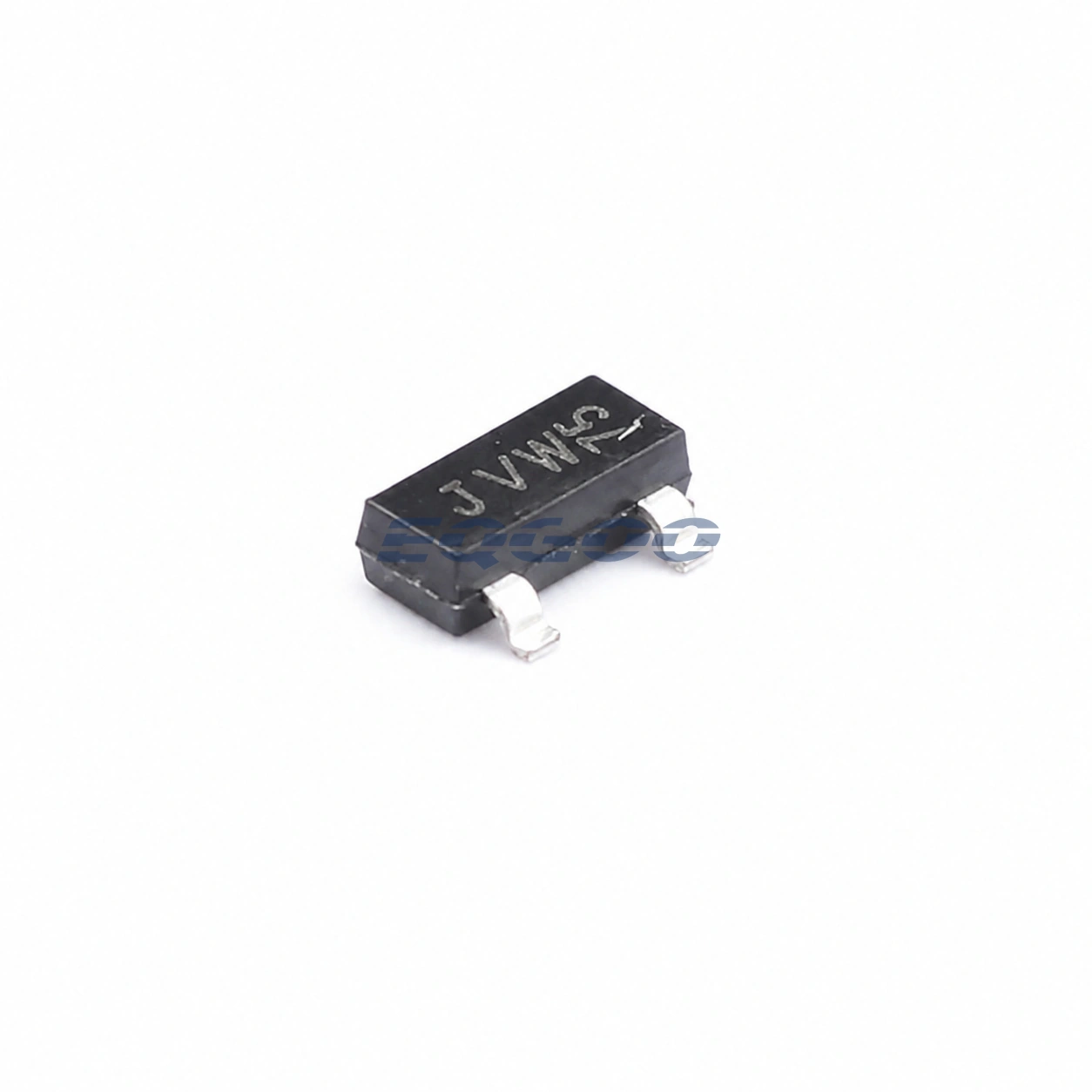

The BAS116,215 is Nexperia’s active 3,000-piece reel orderable for the BAS116 low-leakage switching diode in SOT-23. It combines a 75 V continuous reverse-voltage rating with very low leakage and low capacitance for high-impedance switching and signal-routing functions.
The ,215 suffix identifies the packing orderable. Nexperia lists the exact part as Active with sales item 934032170215.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Continuous reverse voltage | 75 V |
| Repetitive peak reverse voltage | 85 V |
| Forward current max | 215 mA |
| Repetitive peak forward current | 500 mA |
| Forward voltage max | 1.0 V at IF = 10 mA |
| Reverse current max | 5 nA at VR = 75 V |
| Reverse recovery time max | 3 µs |
| Capacitance max | 2 pF |
| Package | SOT-23 |
| Reel quantity | 3,000 |
| Product status | Active |
Design Considerations
Low leakage is the primary differentiator of this diode. In very high-impedance nodes, verify reverse leakage over temperature because hot-junction leakage can dominate the error budget even when the room-temperature value is very small.
The 3 µs maximum reverse-recovery time makes it a medium-speed low-leakage device rather than a substitute for every nanosecond switching diode.
