Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | High-speed switching diode |
| Breakdown voltage | 100 V minimum |
| Working peak reverse voltage | 75 V |
| Average rectified current | 200 mA at TA = 75°C under specified PCB conditions |
| Reverse recovery time | 5 ns maximum |
| Junction capacitance | 4.0 pF at 0 V, 1 MHz |
| Package | Hermetic glass DO-213AA |
| Product family status | In Production |
Product Overview

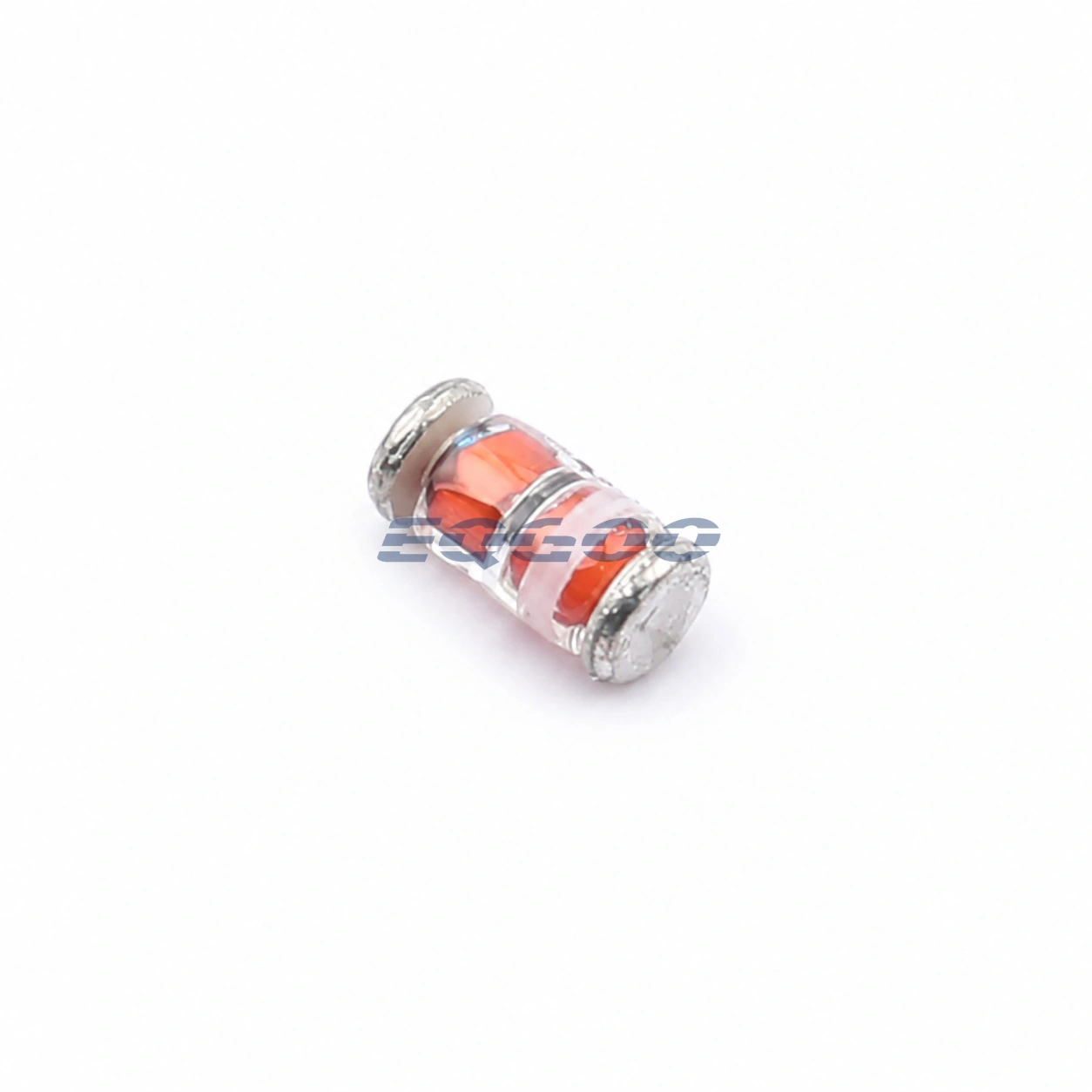

The 1N4148UR-1/TR is the tape-and-reel form of Microchip’s high-reliability 1N4148UR-1 surface-mount switching diode in a hermetic glass DO-213AA package. It is intended for fast switching, signal steering, detector and blocking functions where low capacitance and a robust glass package are useful.
This is not the same package as the axial 1N4148-1 or other small-signal diode variants. Mechanical substitution should preserve the DO-213AA MELF footprint, while electrical replacement should include reverse-recovery and capacitance requirements rather than matching only the 75 V working rating.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Breakdown voltage | 100 V |
| Working peak reverse voltage | 75 V |
| Average rectified current | 200 mA at TA = 75°C, specified PCB |
| Surge current | 2 A peak, 8.3 ms |
| VF maximum | 0.8 V at IF = 10 mA |
| VF maximum | 1.2 V at IF = 100 mA |
| Reverse recovery time | 5 ns max at IF = IR = 10 mA, RL = 100 Ω |
| Forward recovery time | 20 ns max at IF = 50 mA |
| Capacitance | 4.0 pF at VR = 0 V; 2.8 pF at VR = 1.5 V, 1 MHz |
| Junction/storage temperature | -65°C to +175°C |
| Package | DO-213AA hermetic glass |
Design Considerations
The 200 mA average-current rating is tied to the manufacturer’s mounting and ambient conditions. For continuous current, calculate diode dissipation from the actual forward-voltage operating point and the board thermal path instead of treating the current rating as package-independent.
For high-speed nodes, the 5 ns reverse-recovery limit and a few picofarads of capacitance are often more relevant than the DC forward-current rating. Compare those dynamic parameters when considering a substitute.
