Procurement Snapshot
| Procurement Field | Value |
|---|---|
| Exact MPN | ADM3202ARNZ-REEL |
| Manufacturer | Analog Devices |
| Package | SOIC-16 |
| Availability | Contact for current stock and lead time |
| Datasheet | Verified PDF |
Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Type | Transceiver |
| Voltage – Supply | 3V~5.5V |
| Data Rate | 460Kbps |
| ESD Protect | ±8kV |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Operating Temperature | -40℃~+85℃ |
| Package | SOIC-16 |
Product Overview

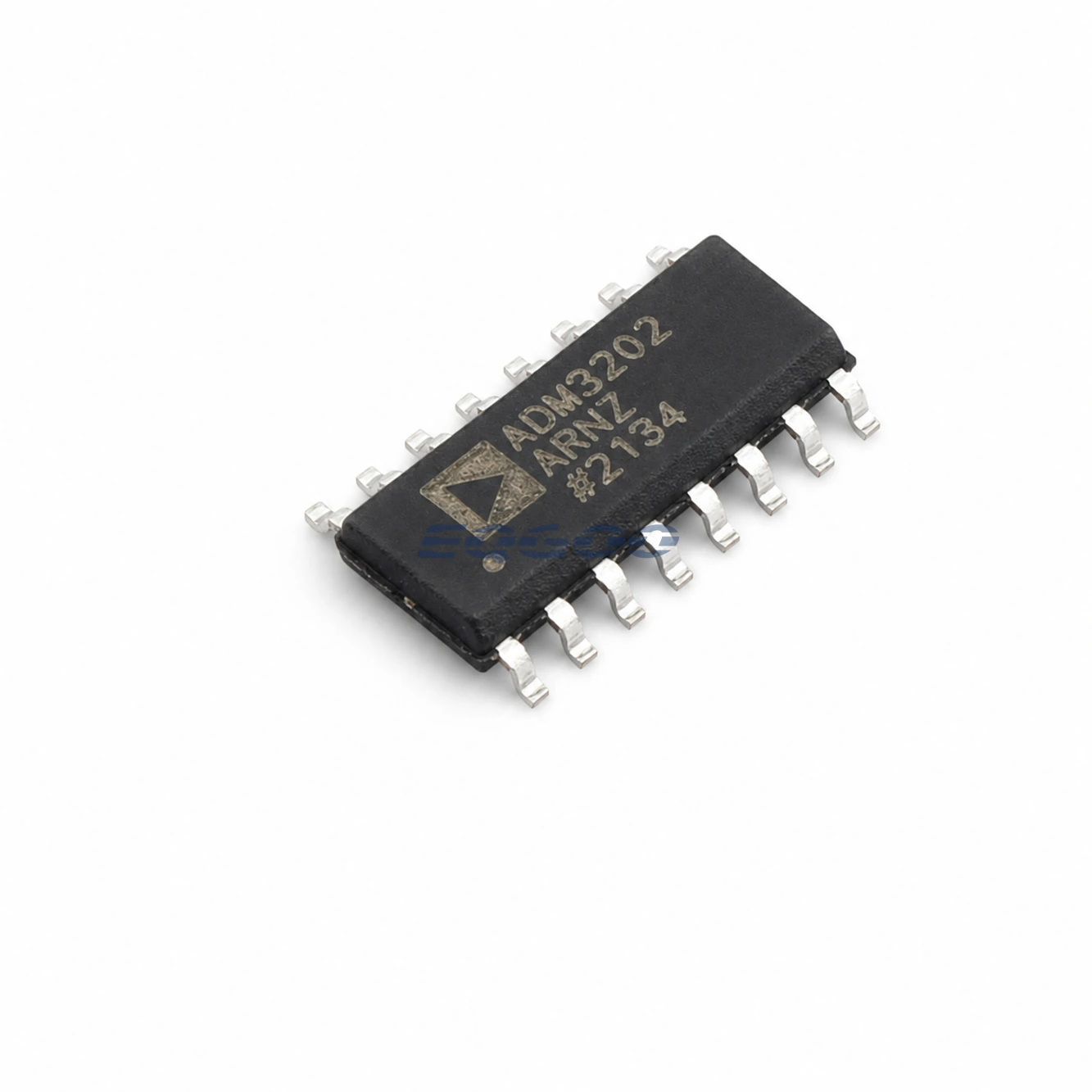

ADM3202ARNZ-REEL is a Low Power, 3.3 V, RS-232 Line Drivers/Receivers ADM3202/ADM3222/ADM1385 from Analog Devices. The exact order code is preserved for BOM, RFQ and incoming-inspection control. The verified package for this listing is SOIC-16. For engineering selection, the most relevant confirmed values include Type Transceiver, Voltage – Supply 3V~5.5V, Data Rate 460Kbps, ESD Protect ±8kV.
Application Fit
- Industrial and diagnostic serial ports
- Embedded RS-232 interfaces
- Instrumentation communication links
Design Considerations
- Confirm supply range, channel count and data-rate requirement.
- Place required charge-pump capacitors close to the device when applicable.
- Verify the exact package and pinout before replacing a related family member.
Alternative Candidates for Engineering Evaluation
| MPN | Manufacturer | Package |
|---|---|---|
| ADM3202ARNZ-REEL7 | ADI | SOIC-16 |
| ADM3202ARNZ-REEL-TUDI | Tudi | SOP-16 |
| ADM3202ARNZ | ADI | SOIC-16 |
| MAX3232IDR(UMW) | UMW | SOP-16 |
| ADM3232EARNZ-REEL7 | ADI | SOIC-16 |
| SP3232EEN(UMW) | UMW | SOP-16 |
| MAX3232ID(UMW) | UMW | SOP-16 |
| ST3232CDR(UMW) | UMW | SOP-16 |
| MAX3232CDR(UMW) | UMW | SOP-16 |
| MAX3232CSE(UMW) | UMW | SOP-16 |
| UT3232G-S16-R | UTC | SOP-16 |
| SP3232EEN | JSMSEMI | SOP-16 |
| MAX3232CSE+T-JSM | JSMSEMI | SOP-16 |
| MAX3232IDR-JSM | JSMSEMI | SOP-16 |
| UT232EG | UTC | SOP-16 |
| TPT3232E-SO3R | 3PEAK | SOP-16 |
| MAX3232EIDR-JSM | JSMSEMI | SOP-16 |
| SP3232EEN(LX) | lingxingic | SOP-16 |
| UM3232EESE | Union Semiconductor | SOP-16 |
| UT3232L-S16-R | UTC | SOP-16 |
These candidates are listed by LCSC. Verify electrical characteristics, pinout, package, qualification and application requirements before substitution.
If a 16-lead TSSOP layout is preferred over this ADM3202 16-lead SOIC package, compare ADM3202ARUZ-REEL. Both exact Analog Devices orderables belong to the ADM3202 RS-232 family, but the TSSOP and SOIC land patterns and assembly constraints differ; the part-number suffix and PCB footprint must be verified before selection.
Quality & RFQ Support
For quotation or inspection requirements, provide the exact MPN, quantity, destination, target Date Code if applicable, and any requested third-party testing before shipment.
