Device Overview

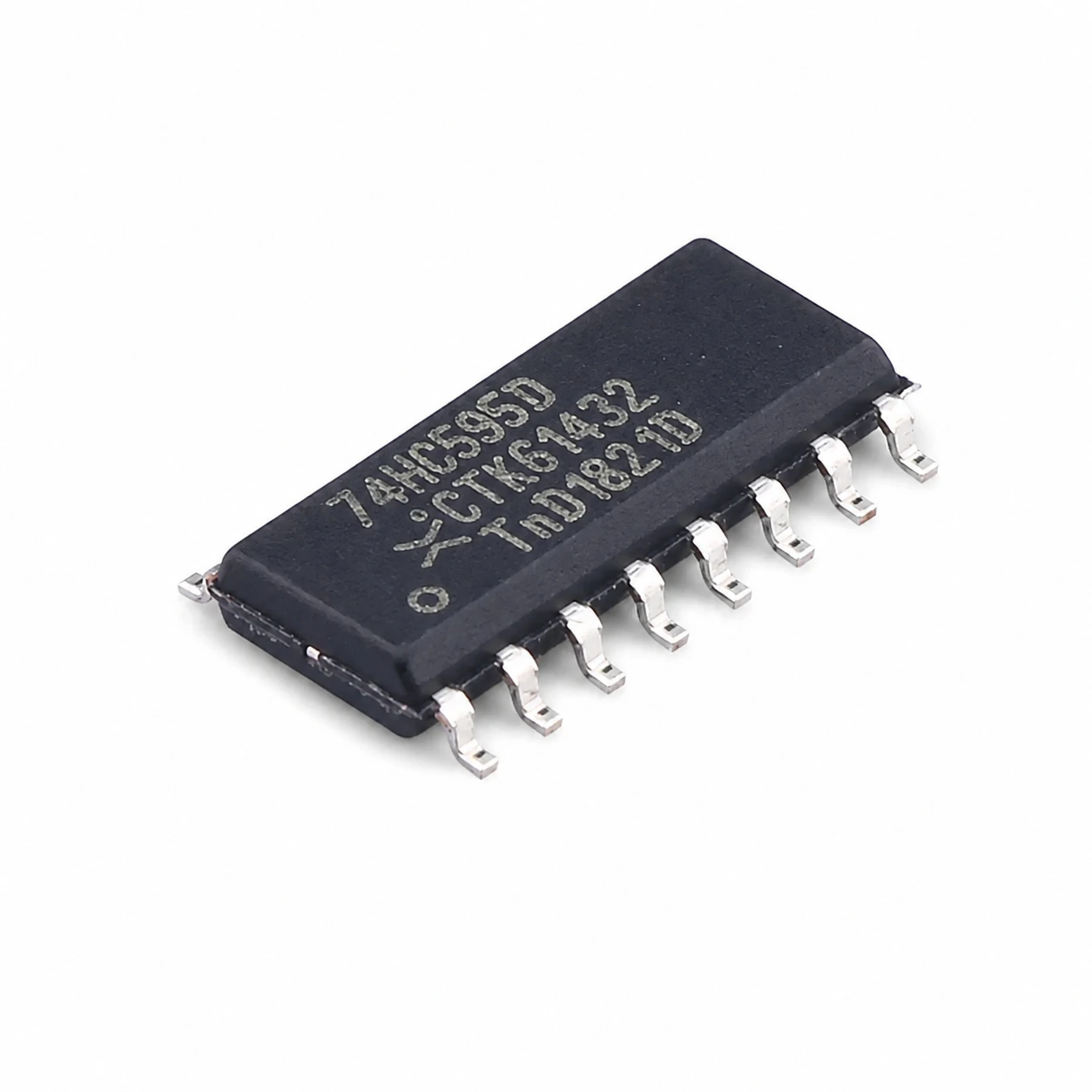

74HC595D,118 is the SOIC-16 tape-and-reel orderable of Nexperia's 74HC595 8-bit serial-in shift register with a separate storage register and 3-state parallel outputs. Separate shift and storage clocks let serial loading occur independently from the update of the external outputs.
Confirmed Technical and Ordering Data
| Parameter | Confirmed value | Scope / condition |
|---|---|---|
| Logic Function | 8-bit serial-in, serial/parallel-out shift register with output latch | Specified for the documented device/orderable |
| Supply Voltage | 2.0 to 6.0 V | 74HC recommended operating range |
| Input Levels | CMOS | 74HC input thresholds |
| Shift Clock | SHCP | data shifts on LOW-to-HIGH transitions |
| Storage Clock | STCP | shift-register data transfers to storage register on LOW-to-HIGH transition |
| Output Enable | OE HIGH places parallel outputs in high impedance | does not alter register state |
| Reset | MR LOW asynchronously clears the shift register | Specified for the documented device/orderable |
| Shift-Out Frequency | 100 MHz typical | manufacturer feature headline; not a guaranteed universal system clock |
| Operating Temperature | -40 to +125 °C | Specified for the documented device/orderable |
| Exact Package | SO16, SOT109-1 | 16 leads; D orderable |
Engineering Selection Guidance
SHCP and STCP are separate clocks: serial data can be shifted internally and then transferred to the storage register as one output update. Tying the clocks together changes that timing relationship.
OE only controls the 3-state output drivers; it does not clear the shift or storage register. MR is the asynchronous control that clears the shift register.
The 100 MHz figure is presented by Nexperia as a typical shift-out frequency headline, so it should not be interpreted as a guaranteed maximum for every supply, load and temperature condition.
Lifecycle and Procurement
Nexperia currently lists the exact orderable 74HC595D,118 as Active. The verified package is SOIC-16. Lifecycle information supports sourcing and design planning; it does not state HKEQGOO stock, lead time, MOQ or final availability.
Official Engineering Resources
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment.
Request a Quote
For 74HC595D,118 sourcing, provide the required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
