Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | Single-bit dual-supply bidirectional level translator |
| VCC(A) / VCC(B) | 0.8 V to 3.6 V |
| Output drive | ±12 mA class |
| Direction | DIR-controlled |
| Partial power-down | I/OFF |
| Package | TSSOP6 / SOT363-2 |
| Exact OPN | 74AVC1T45GW,125 |
| OPN state | RFS |

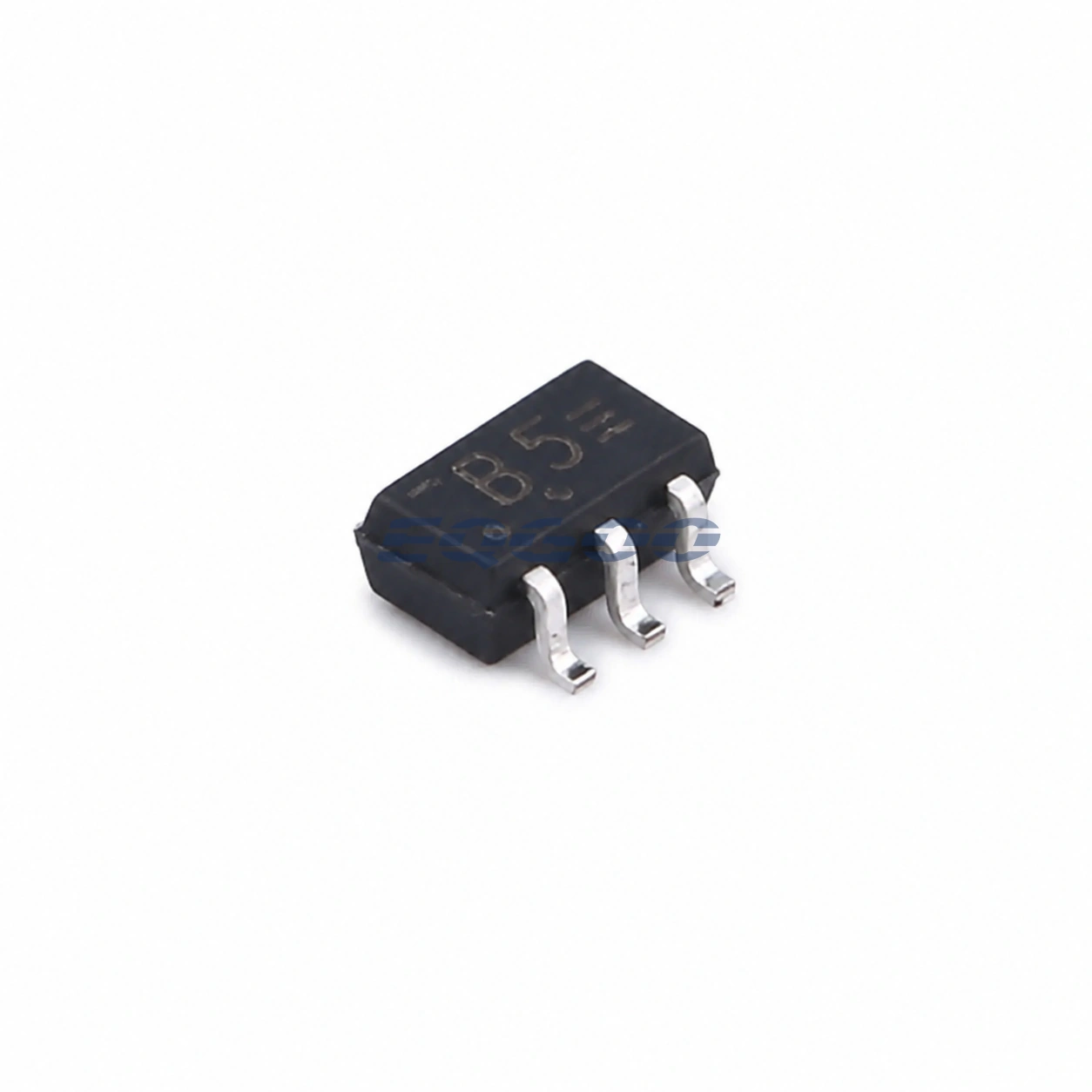

Product Overview
The 74AVC1T45GW,125 is Nexperia’s exact TSSOP6 orderable for a single-bit dual-supply bidirectional voltage translator. Both supply domains support 0.8 V to 3.6 V operation, enabling translation among very low-voltage logic rails.
A DIR input explicitly controls data direction; this is not an auto-direction-sensing translator.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Bits | 1 |
| VCC(A) | 0.8–3.6 V |
| VCC(B) | 0.8–3.6 V |
| Output drive | ±12 mA class |
| Input tolerance | To 3.6 V |
| Propagation delay | Supply-dependent, down to low-ns class |
| HBM ESD | >8 kV |
| CDM ESD | >1 kV |
| Partial power-down | I/OFF |
| Temperature range | -40°C to +125°C |
| Package | TSSOP6 |
Design Considerations
DIR low selects B-to-A according to the datasheet. Verify net naming carefully to avoid reversed translator direction.
During partial power-down, use the I/OFF behavior and supply sequencing rules to prevent back-powering.
