Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Manufacturer | AMD Xilinx |
| Exact MPN | XCKU035-2FFVA1156I |
| Device Family | Kintex-UltraScale |
| Functional Category | FPGAs (Field Programmable Gate Array) |
| Package | FCBGA-1156 |
| Logic Cells | 444343 |
| Operating Temperature | -40°C to +100°C |
Product Overview

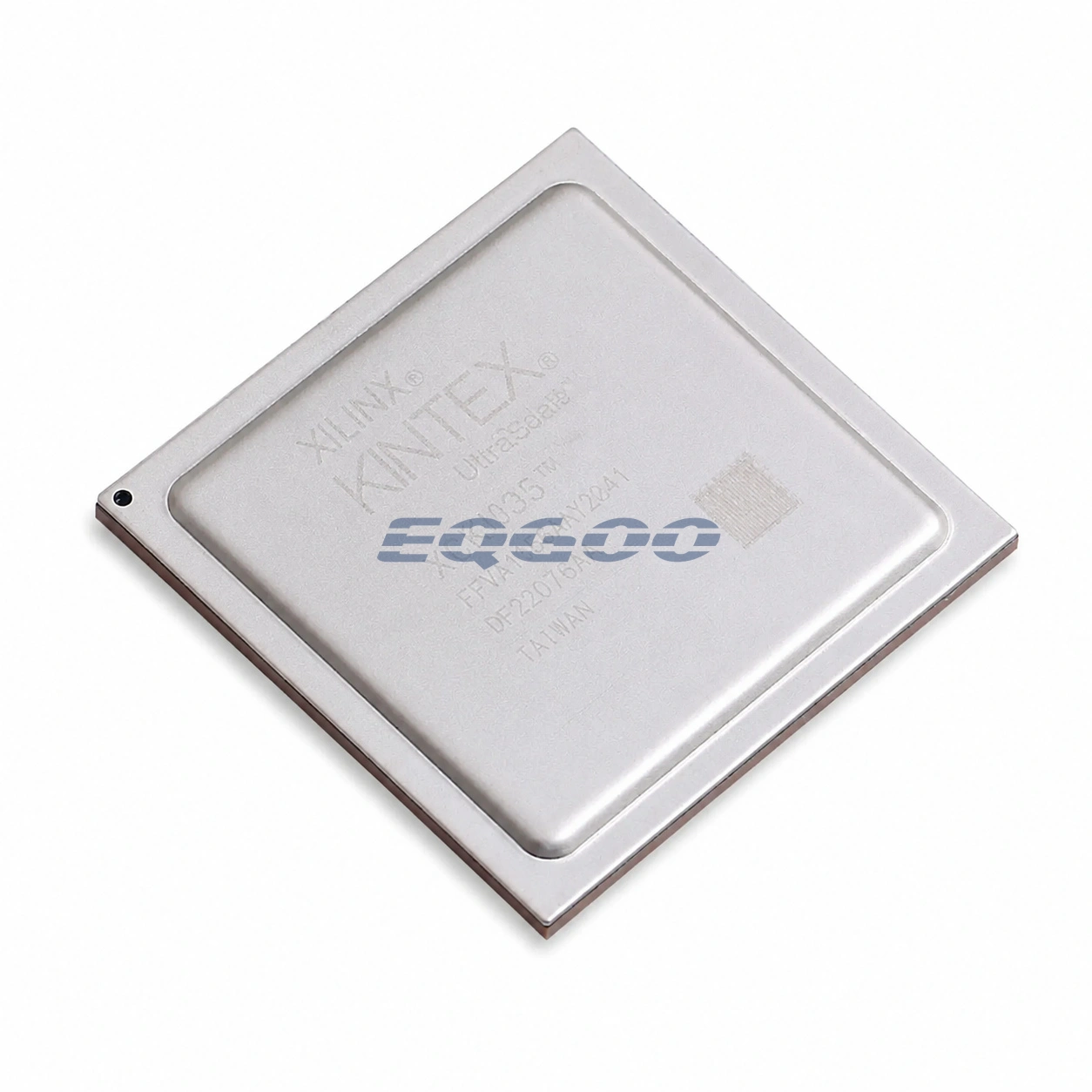

XCKU035-2FFVA1156I is an AMD Xilinx Kintex-UltraScale FPGA supplied in FCBGA-1156. The local exact-part source records logic cells: 444343, operating temperature: -40°C to +100°C.
FPGA substitution must keep the exact package, speed/temperature grade and family resources aligned with the target bitstream and PCB; a similar family name alone is not sufficient.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | AMD Xilinx |
| Exact MPN | XCKU035-2FFVA1156I |
| Device Family | Kintex-UltraScale |
| Functional Category | FPGAs (Field Programmable Gate Array) |
| Package | FCBGA-1156 |
| Packing | 24 pcs/tray |
| Logic Cells | 444343 |
| Operating Temperature | -40°C to +100°C |
| Source Catalog ID | C19724698 |
Selection Notes
Treat FCBGA-1156 as a hard PCB constraint. Closely related Kintex-UltraScale parts with another package are not footprint-equivalent replacements.
The local source records 444343 logic cells for this exact MPN; resource-fit review must also include memory, DSP, clocking, I/O and transceiver requirements where applicable.
Design Considerations
- Confirm logic, memory, DSP, clocking, I/O-bank and transceiver requirements against the compiled design for the exact FPGA.
- Recheck configuration method, supply rails, package pinout and speed/temperature grade before using an adjacent family device.
Exact Variant and Procurement Notes
Preserve the complete manufacturer part number in BOMs, RFQs and purchase orders. Package, speed grade, temperature grade and ordering suffixes can distinguish non-interchangeable programmable-logic variants.
The local source record lists 24 pcs/tray for this exact order code.
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. Physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
For XCKU035-2FFVA1156I quotation, provide the exact MPN, required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
For a Kintex UltraScale configuration with a larger logic and DSP budget, compare XCKU040-1FFVA1156I. AMD lists XCKU035 and XCKU040 at 444K versus 530K system logic cells, with different DSP, block RAM and transceiver resources. Both order codes use FFVA1156, but their -2 and -1 speed grades differ. Check the actual package pinout, bank assignments, timing constraints and resource utilization before redesign or procurement; this is a comparison, not a pin-compatible or drop-in replacement claim.
