Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Manufacturer | AMD Xilinx |
| Exact MPN | XC7S100-2FGGA484I |
| Device Family | XC7S |
| Functional Category | FPGAs (Field Programmable Gate Array) |
| Package | FBGA-484 |
| Logic Cells | 102400 |
| Operating Temperature | -40°C to +100°C |
Product Overview

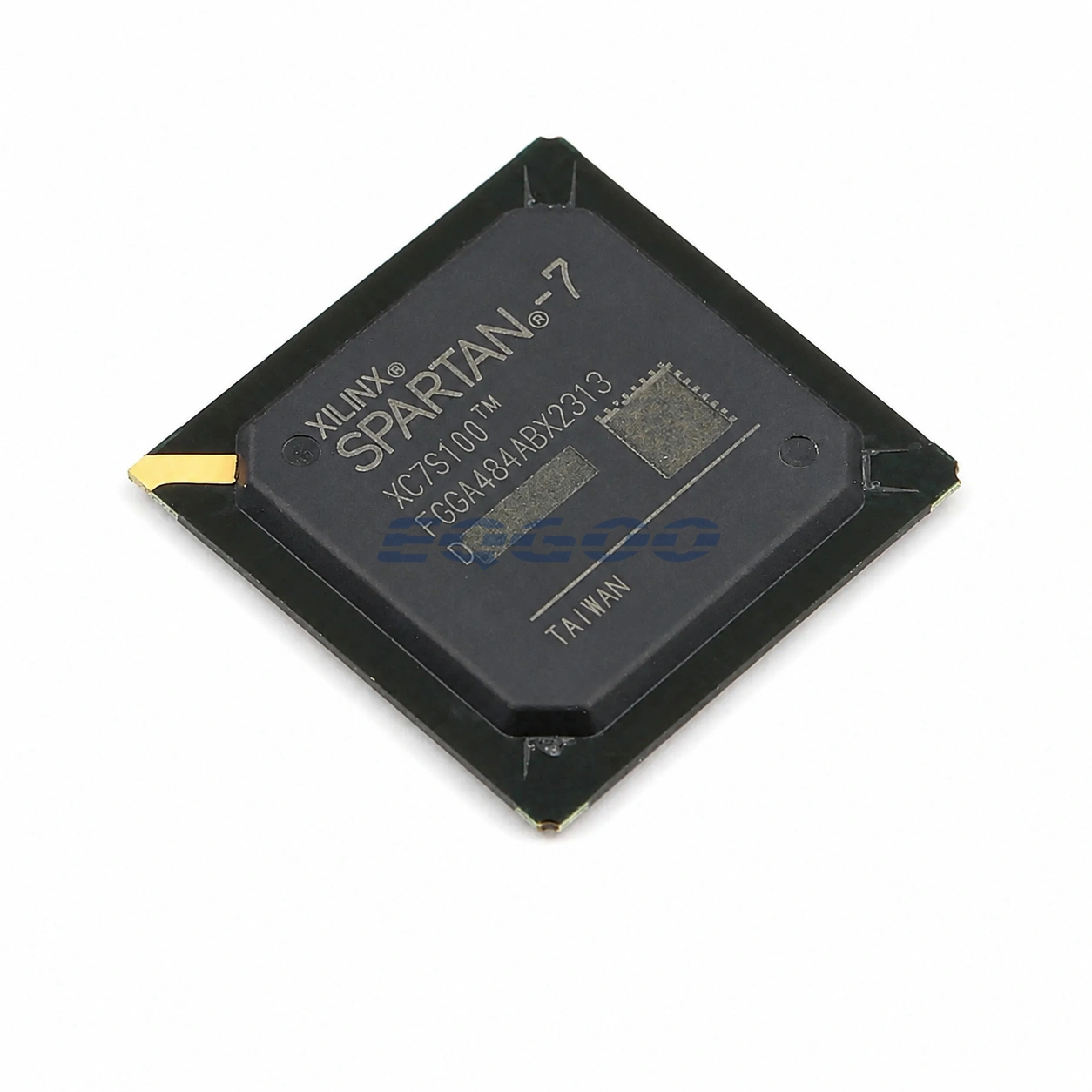

XC7S100-2FGGA484I is an AMD Xilinx XC7S FPGA supplied in FBGA-484. The local exact-part source records logic cells: 102400, operating temperature: -40°C to +100°C.
FPGA substitution must keep the exact package, speed/temperature grade and family resources aligned with the target bitstream and PCB; a similar family name alone is not sufficient.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | AMD Xilinx |
| Exact MPN | XC7S100-2FGGA484I |
| Device Family | XC7S |
| Functional Category | FPGAs (Field Programmable Gate Array) |
| Package | FBGA-484 |
| Packing | 126 pcs/tray |
| Logic Cells | 102400 |
| Operating Temperature | -40°C to +100°C |
| Source Catalog ID | C1521770 |
Selection Notes
Treat FBGA-484 as a hard PCB constraint. Closely related XC7S parts with another package are not footprint-equivalent replacements.
The local source records 102400 logic cells for this exact MPN; resource-fit review must also include memory, DSP, clocking, I/O and transceiver requirements where applicable.
Design Considerations
- Confirm logic, memory, DSP, clocking, I/O-bank and transceiver requirements against the compiled design for the exact FPGA.
- Recheck configuration method, supply rails, package pinout and speed/temperature grade before using an adjacent family device.
Exact Variant and Procurement Notes
Preserve the complete manufacturer part number in BOMs, RFQs and purchase orders. Package, speed grade, temperature grade and ordering suffixes can distinguish non-interchangeable programmable-logic variants.
The local source record lists 126 pcs/tray for this exact order code.
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. Physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
For XC7S100-2FGGA484I quotation, provide the exact MPN, required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
