Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Manufacturer | AMD Xilinx |
| Exact MPN | XC7A100T-1CSG324C |
| Device Family | Artix-7 |
| Functional Category | FPGAs (Field Programmable Gate Array) |
| Package | CSPBGA-324 |
Product Overview

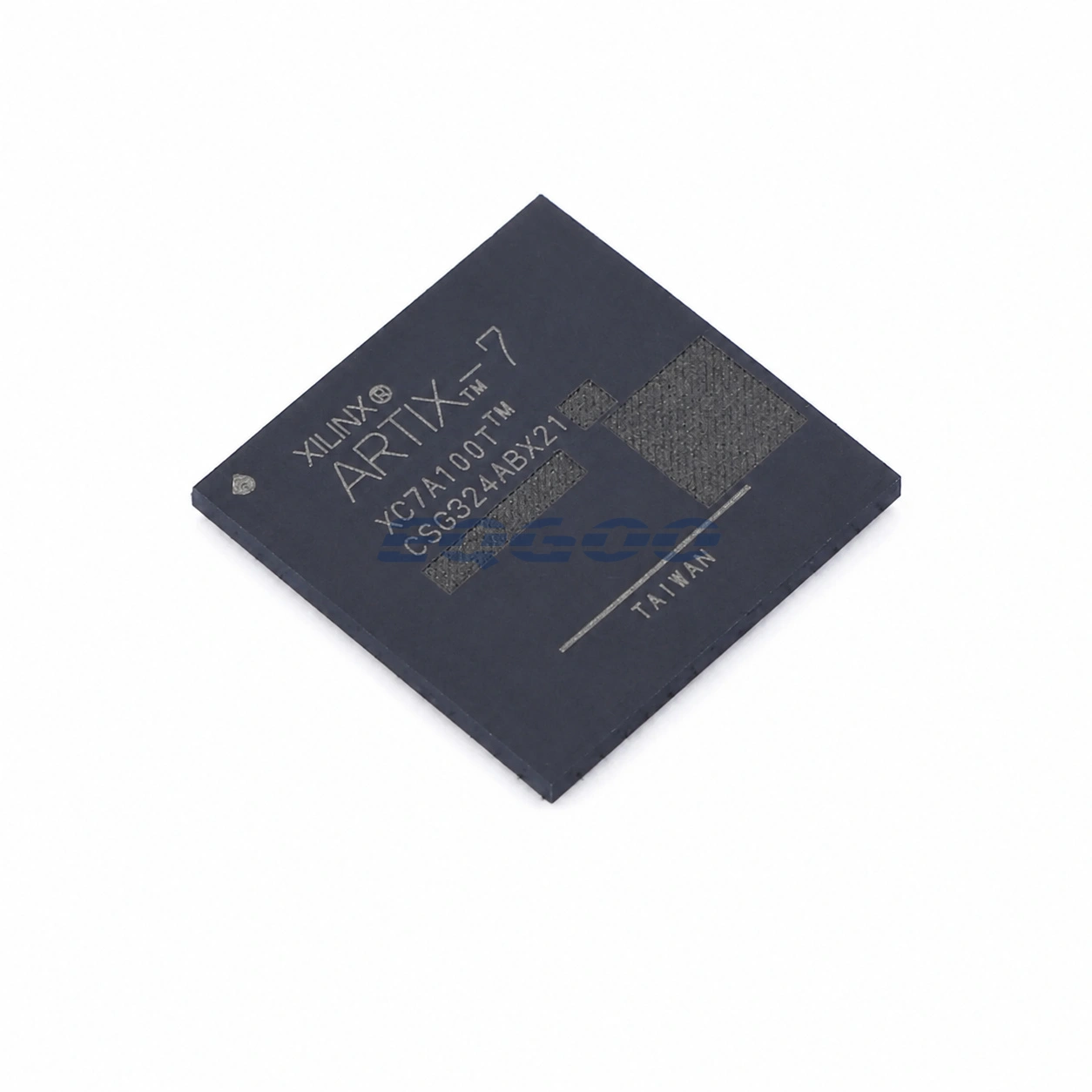

XC7A100T-1CSG324C is an AMD Xilinx Artix-7 FPGA supplied in CSPBGA-324.
FPGA substitution must keep the exact package, speed/temperature grade and family resources aligned with the target bitstream and PCB; a similar family name alone is not sufficient.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | AMD Xilinx |
| Exact MPN | XC7A100T-1CSG324C |
| Device Family | Artix-7 |
| Functional Category | FPGAs (Field Programmable Gate Array) |
| Package | CSPBGA-324 |
| Packing | 126 pcs/tray |
| Source Catalog ID | C1521768 |
Selection Notes
Treat CSPBGA-324 as a hard PCB constraint. Closely related Artix-7 parts with another package are not footprint-equivalent replacements.
Before substitution, compare the exact device resources, speed grade, temperature grade and I/O/package constraints rather than relying on the family prefix alone.
Design Considerations
- Confirm logic, memory, DSP, clocking, I/O-bank and transceiver requirements against the compiled design for the exact FPGA.
- Recheck configuration method, supply rails, package pinout and speed/temperature grade before using an adjacent family device.
Exact Variant and Procurement Notes
Preserve the complete manufacturer part number in BOMs, RFQs and purchase orders. Package, speed grade, temperature grade and ordering suffixes can distinguish non-interchangeable programmable-logic variants.
The local source record lists 126 pcs/tray for this exact order code.
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. Physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
For XC7A100T-1CSG324C quotation, provide the exact MPN, required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
For the same Artix-7 FPGA device, speed grade and package ordering code in the industrial (I) temperature category, compare XC7A100T-1CSG324I. AMD’s DS181 specifies a junction-temperature range of 0 to +85 °C for commercial (C) ordering variants and -40 to +100 °C for industrial (I) variants; this page is the commercial (C) code. Confirm exact package pinout, timing and application qualification before procurement. This is a temperature-grade selection comparison, not approval for direct substitution.
