Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | High-energy radial metal-oxide varistor |
| Series | UltraMOV 25S |
| Disc diameter | 25 mm |
| Maximum continuous AC voltage | 150 V RMS |
| Maximum continuous DC voltage | 200 V |
| Energy rating | 300 J |
| Peak surge current | 22 kA |
| Varistor-voltage range | 216 V to 264 V |
| Typical capacitance | 3200 pF |
Product Overview

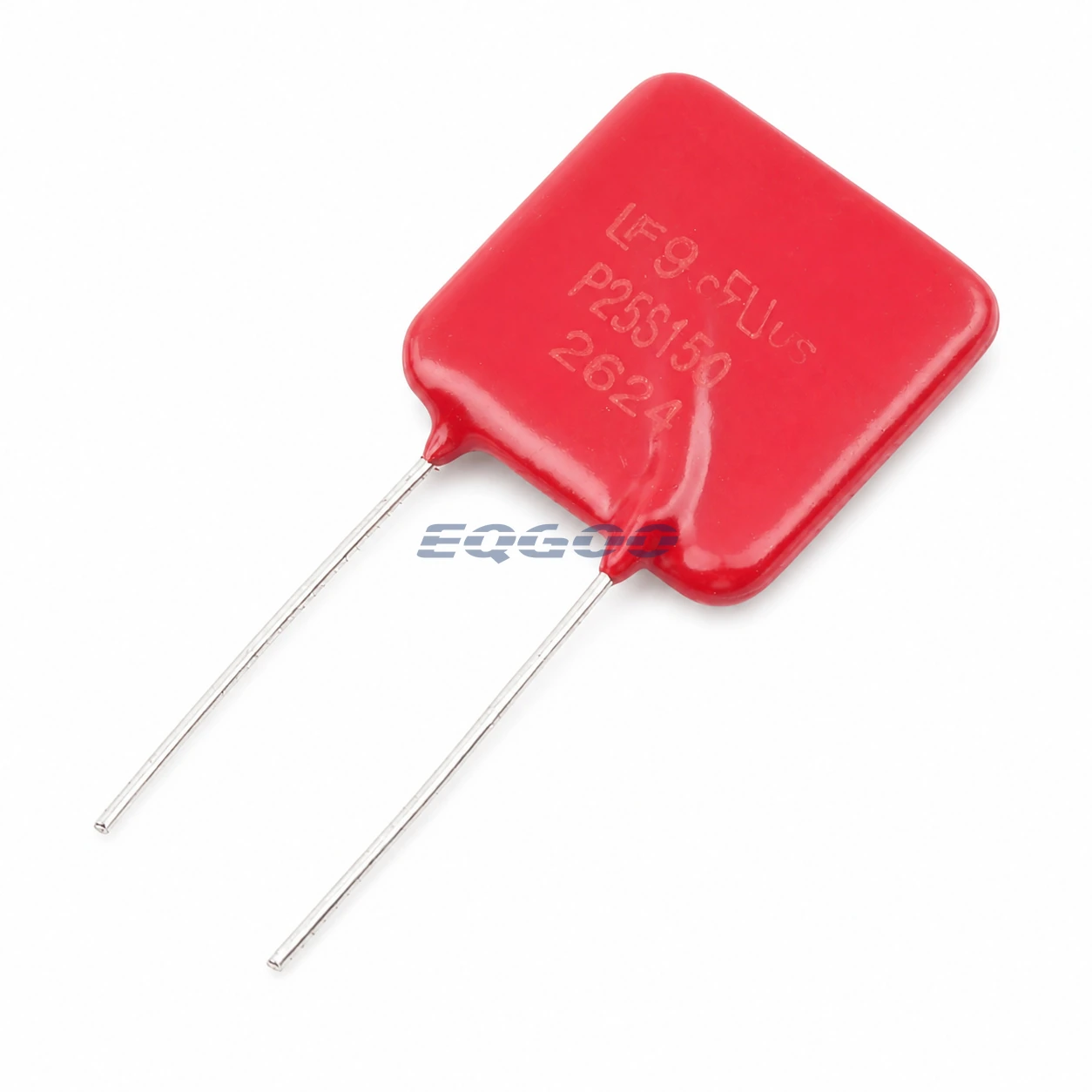

V25S150P is a 25 mm Littelfuse UltraMOV 25S high-energy MOV. The larger disc format provides substantially higher surge and energy capability than common 14 mm and 20 mm MOVs, with a 22 kA single-pulse 8/20 µs rating and 300 J energy specification.
The 150 V grade is rated for 150 VAC RMS or 200 VDC continuous operation and is intended for equipment that needs a robust radial surge suppressor rather than a compact board-level MLV.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| VAC continuous | 150 V RMS |
| VDC continuous | 200 V |
| Energy, 2 ms | 300 J |
| Peak surge current | 22,000 A |
| Varistor voltage at 1 mA | 216 V to 264 V |
| Maximum clamping voltage | 390 V at 100 A |
| Typical capacitance | 3200 pF |
| Disc diameter | 25 mm |
High-Energy MOV Considerations
A high single-pulse rating does not mean unlimited repetitive surge life. Expected surge count, waveform, ambient temperature and protective coordination should be included when determining margin.
Manufacturer Resource
Littelfuse UltraMOV 25S datasheet
Quality & Verification Support
Exact V25S150P grade, 25 mm body, marking and lot/date information can be reviewed before shipment.
Request a Quote
Request V25S150P exactly and include quantity, compliance and traceability requirements.
