Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | Surface-mount multilayer varistor |
| Series | MLA |
| Package | 1210 / 3225 metric |
| Maximum continuous DC voltage | 120 V |
| Maximum continuous AC voltage | 107 V RMS |
| Peak surge current | 125 A, 8/20 µs |
| Surge energy | 2 J, 10/1000 µs |
| Termination | Nickel-barrier MLA construction |
| Packaging | H reel option |
Product Overview

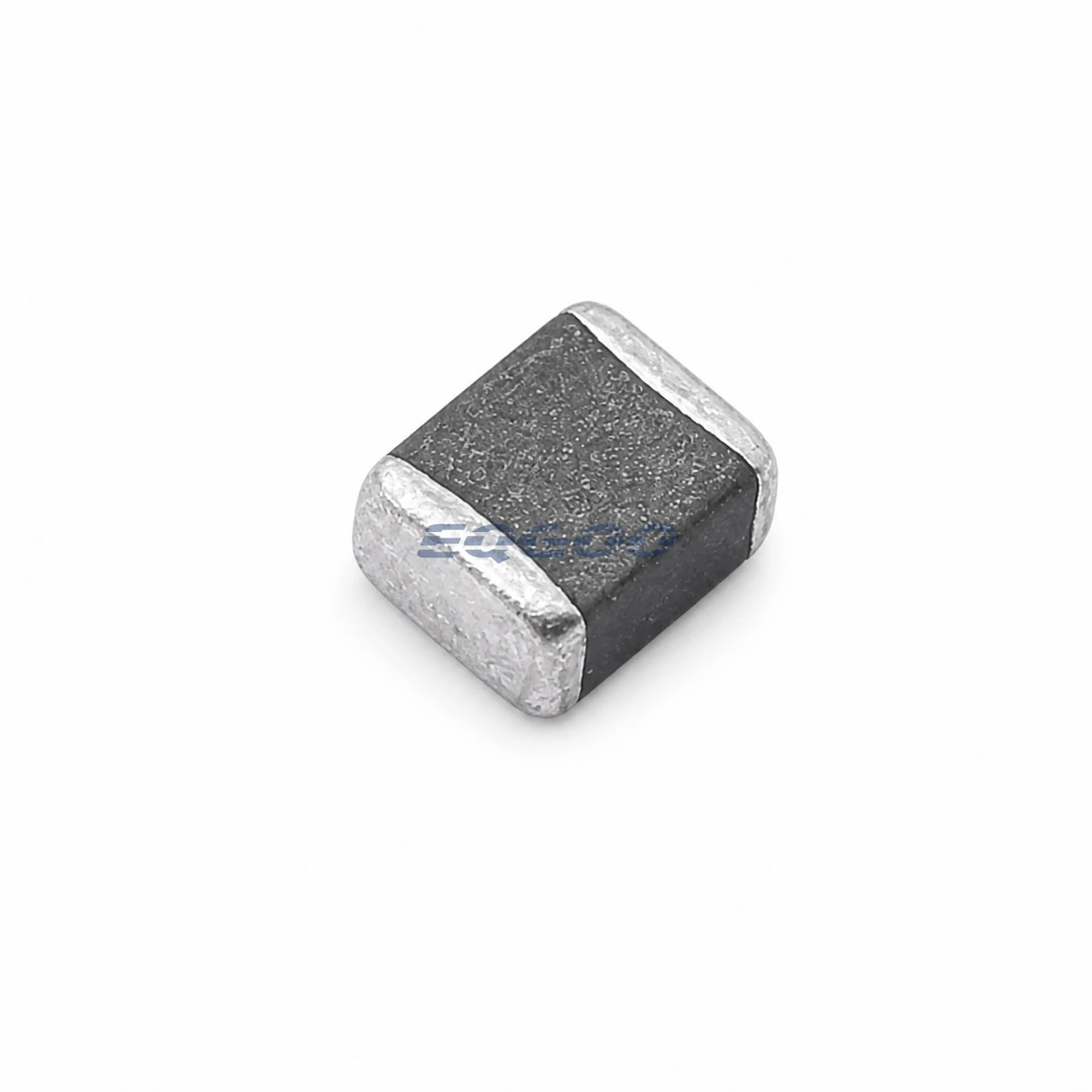

V120MLA1210NH is a Littelfuse MLA-series multilayer varistor for board-level transient suppression in a 1210 surface-mount package. It is the high-voltage 120 VDC member of the 1210 MLA range and is intended for protecting semiconductor and control circuitry from short-duration surge and ESD-related events.
The exact N/H ending identifies the nickel-barrier termination and reel packaging configuration. Electrically, the underlying V120MLA1210N grade is rated for 120 VDC or 107 VAC continuous operation.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Maximum DC working voltage | 120 V |
| Maximum AC working voltage | 107 V RMS |
| Non-repetitive surge current | 125 A |
| Non-repetitive surge energy | 2 J |
| Maximum clamping voltage | 260 V at 2.5 A |
| Nominal varistor-voltage range | 135 V to 165 V at 1 mA |
| Typical capacitance | 70 pF at 1 MHz |
| Operating temperature | −40°C to +125°C |
| Package | 1210 |
Board-Level Protection Considerations
MLA parts are intended for transient events rather than continuous overvoltage absorption. PCB trace inductance between the protected node and the varistor should be kept low because long routing can add overshoot during fast transients.
Manufacturer Resource
Littelfuse MLA varistor datasheet
Quality & Verification Support
Exact V120MLA1210NH suffix, termination, 1210 package, reel format and lot/date information can be reviewed before shipment.
Request a Quote
Request V120MLA1210NH exactly and include quantity, compliance and traceability requirements.
