Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Package | HTSSOP-28-EP |
| Supply voltage | 8V~26V |
| Output Power | 15Wx2@8Ω |
| Speaker Channels | 2-Channel |
| Operating Temperature | -40℃~+85℃ |
| Quiescent Current | 50mA |
| Features | Filterless architecture;Digitally programmable gain;Automatic mute/no-noise switch |
Product Overview

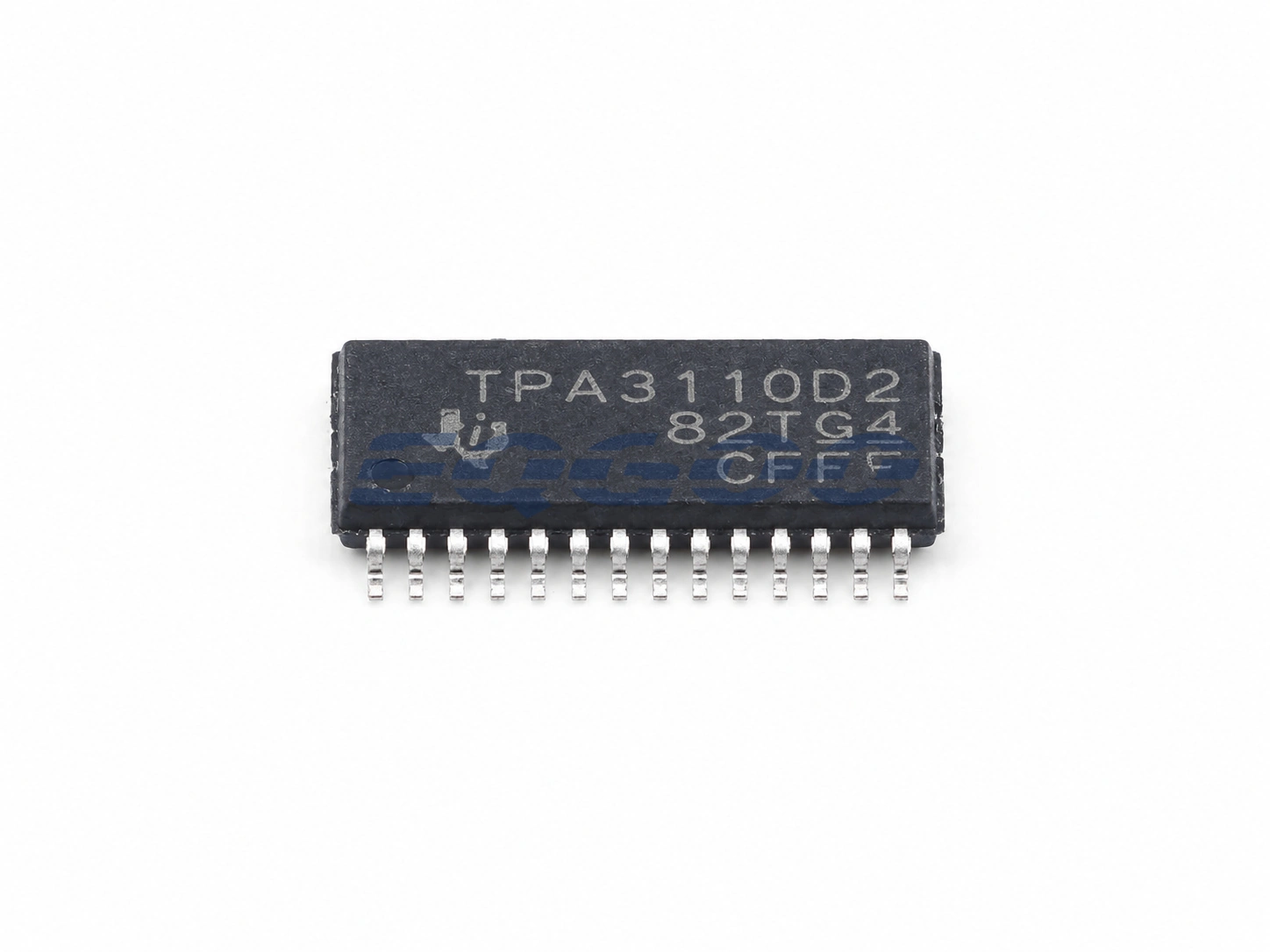

TPA3110D2PWPR is a Texas Instruments audio amplifier identified by the exact orderable code TPA3110D2PWPR. Its confirmed technical identity includes Supply voltage 8V~26V, Output Power 15Wx2@8Ω, Speaker Channels 2-Channel, Operating Temperature -40℃~+85℃.
The exact device is described as: 50mA 8V~26V 2-Channel 15Wx2@8Ω Class D HTSSOP-28-EP Audio Amplifiers. Selection should be based on the exact package and the operating conditions required by the design, rather than on a nearby family member or a generic part number.
Technical Specifications
| Parameter | Value |
|---|---|
| Package | HTSSOP-28-EP |
| Supply voltage | 8V~26V |
| Output Power | 15Wx2@8Ω |
| Speaker Channels | 2-Channel |
| Operating Temperature | -40℃~+85℃ |
| Quiescent Current | 50mA |
| Features | Filterless architecture;Digitally programmable gain;Automatic mute/no-noise switch |
| Total Harmonic Distortion + Noise (THD+N) | 0.1% |
| Signal-to-Noise Ratio | 102dB |
| Efficiency | 90% |
| Class | Class D |
| Power Supply Rejection Ratio (PSRR) | -70dB |
Exact-Part Selection Insight
The stated 15Wx2@8Ω output-power condition is tied to the amplifier’s 8V~26V supply range and the load condition embedded in that rating. Thermal design, speaker impedance and available supply voltage must be evaluated together before using the headline wattage as a continuous design target.
Selection Notes
- Package: HTSSOP-28-EP
- Supply voltage: 8V~26V
- Output Power: 15Wx2@8Ω
- Speaker Channels: 2-Channel
- Operating Temperature: -40℃~+85℃
Application Fit
This exact part is appropriate for designs that require a audio amplifier with the confirmed package and electrical/function parameters above. Final fit depends on the surrounding circuit, interface, thermal and mechanical requirements of the target design.
Design Considerations
Confirm the available supply rail stays inside the stated operating range, including startup and transient conditions.
Check current, power dissipation and board thermal conditions at the intended operating point rather than using the headline rating alone.
Use the exact HTSSOP-28-EP footprint/package definition when checking PCB land pattern, assembly clearance and sourcing equivalence.
Related Engineering Resources
- TPA3110D2PWPR Datasheet (PDF) ??official manufacturer datasheet verified for this exact order code or documented product family.
- Manufacturer product resource — official manufacturer-controlled product information for the exact part or product family.
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
For a higher-output-power TI stereo Class-D audio amplifier, compare TPA3116D2DADR (up to 50 W per channel at 21 V into 4 ohms, per TI conditions) with this TPA3110D2 design (15 W per channel at 16 V into 8 ohms, at 10% THD+N). The 32-pin DAD and 28-pin PWP packages and external thermal, supply and speaker-load constraints differ; these are not board-level drop-in options.
