Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Qualification | AEC-Q100 automotive, Grade 1 −40°C to +125°C |
| Configuration | 1-channel 8:1 bidirectional mux |
| Supply | 1.62 V to 5.5 V |
| Protection | Injection-current control and no ESD-diode back-power path to VDD |
| Logic | 1.8 V compatible, fail-safe |
| Switching | Rail-to-rail, break-before-make |
| Compatibility | Pin-compatible target with industry-standard 4051/4851 |
| Exact Package / Packing | WQFN (BQB), 16 pins; 3000-piece large tape and reel |
Product Overview

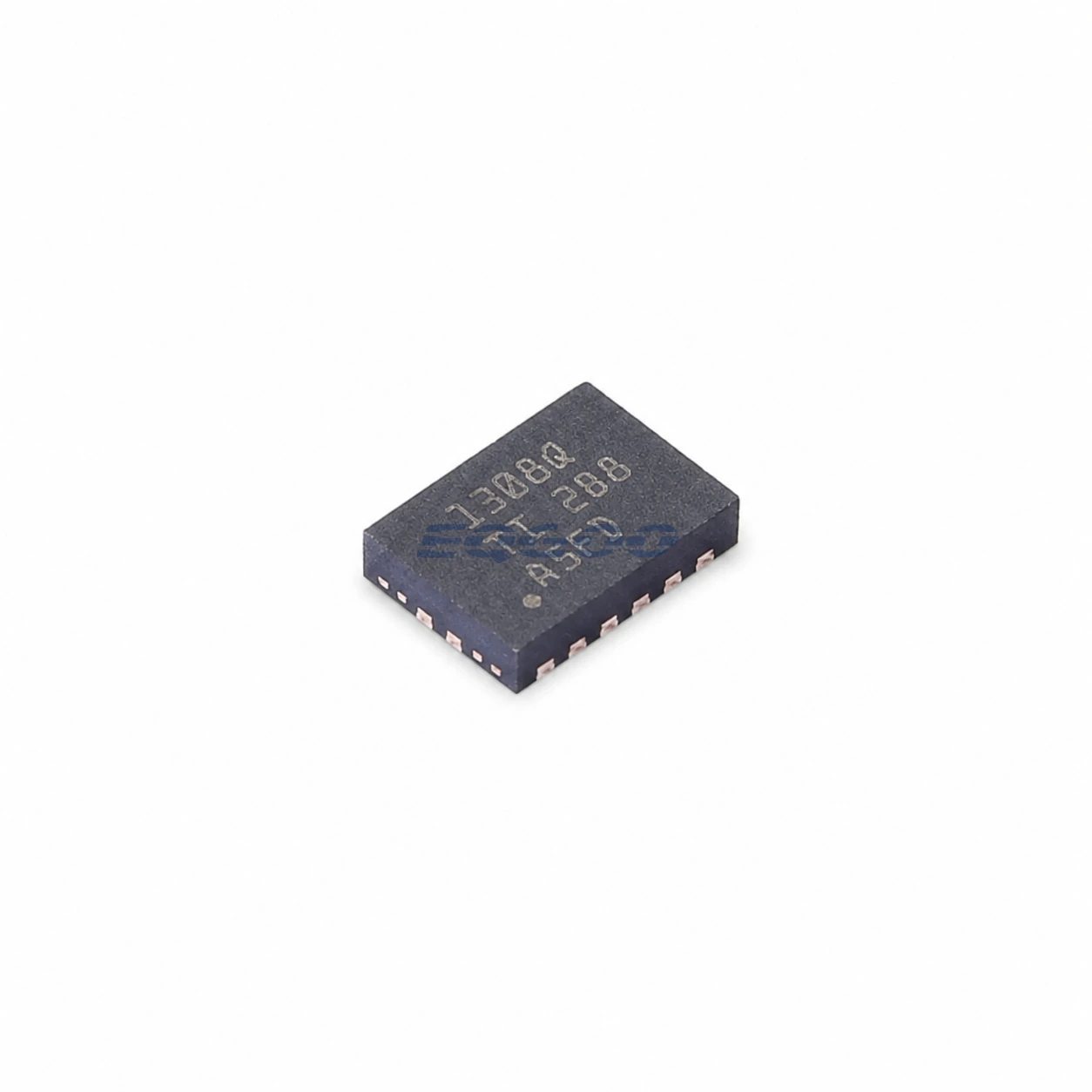

TMUX1308QBQBRQ1 is the automotive-qualified TMUX1308-Q1 8:1 multiplexer, not the generic commercial TMUX1308 identity. It is designed for diagnostics/monitoring nodes where analog inputs may be driven before the mux supply is valid or may experience injection current.
The injection-current-control/back-power architecture helps prevent an overdriven channel from corrupting other channels or powering VDD through a conventional ESD diode. This is particularly useful in automotive sensor diagnostics and multi-rail systems with independent sequencing.
The exact QBQBRQ1 order code is active AEC-Q100 Grade-1, WQFN(BQB)-16, −40°C to +125°C and 3000-piece large-reel packaging. The Q1 suffix is an automotive qualification identity, not packing decoration.
For related devices, see HKEQGOO’s Analog Switches & Multiplexers category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | TMUX1308QBQBRQ1 |
| Qualification | AEC-Q100 automotive, Grade 1 −40°C to +125°C |
| Configuration | 1-channel 8:1 bidirectional mux |
| Supply | 1.62 V to 5.5 V |
| Protection | Injection-current control and no ESD-diode back-power path to VDD |
| Logic | 1.8 V compatible, fail-safe |
| Switching | Rail-to-rail, break-before-make |
| Compatibility | Pin-compatible target with industry-standard 4051/4851 |
| Exact Package / Packing | WQFN (BQB), 16 pins; 3000-piece large tape and reel |
| Manufacturer Status | Active / Production |
| Part Marking | TMUX1308-Q1 family BQB marking per TI part data |
Functional Highlights
Injection current control improves faulted-channel behavior
A sensor pin outside the normal powered state can otherwise inject current into supply/other channels. The protection architecture reduces that interaction, but external series/protection networks are still required for system-level transient energy.
No VDD ESD-diode path helps power sequencing
Inputs can be present before VDD without simply back-powering the mux rail. Logic/signal voltages still must respect the exact powered-off protection limits.
Design Considerations
- Use the Q1 family limits for automotive fault/transient design rather than the commercial TMUX1308 page.
- Add board-level protection sized for expected ISO/load-dump/ESD environment; the mux feature is not a surge suppressor.
- Keep mux source impedance/ADC settling within the acquisition budget after any protective series resistance.
Product Status and Exact Order Code
Manufacturer status: Active / Production
Texas Instruments lists TMUX1308QBQBRQ1 as Active automotive orderable part; WQFN (BQB), 16 pins; 3000-piece large tape and reel; AEC-Q100 Grade 1, −40°C to +125°C.
