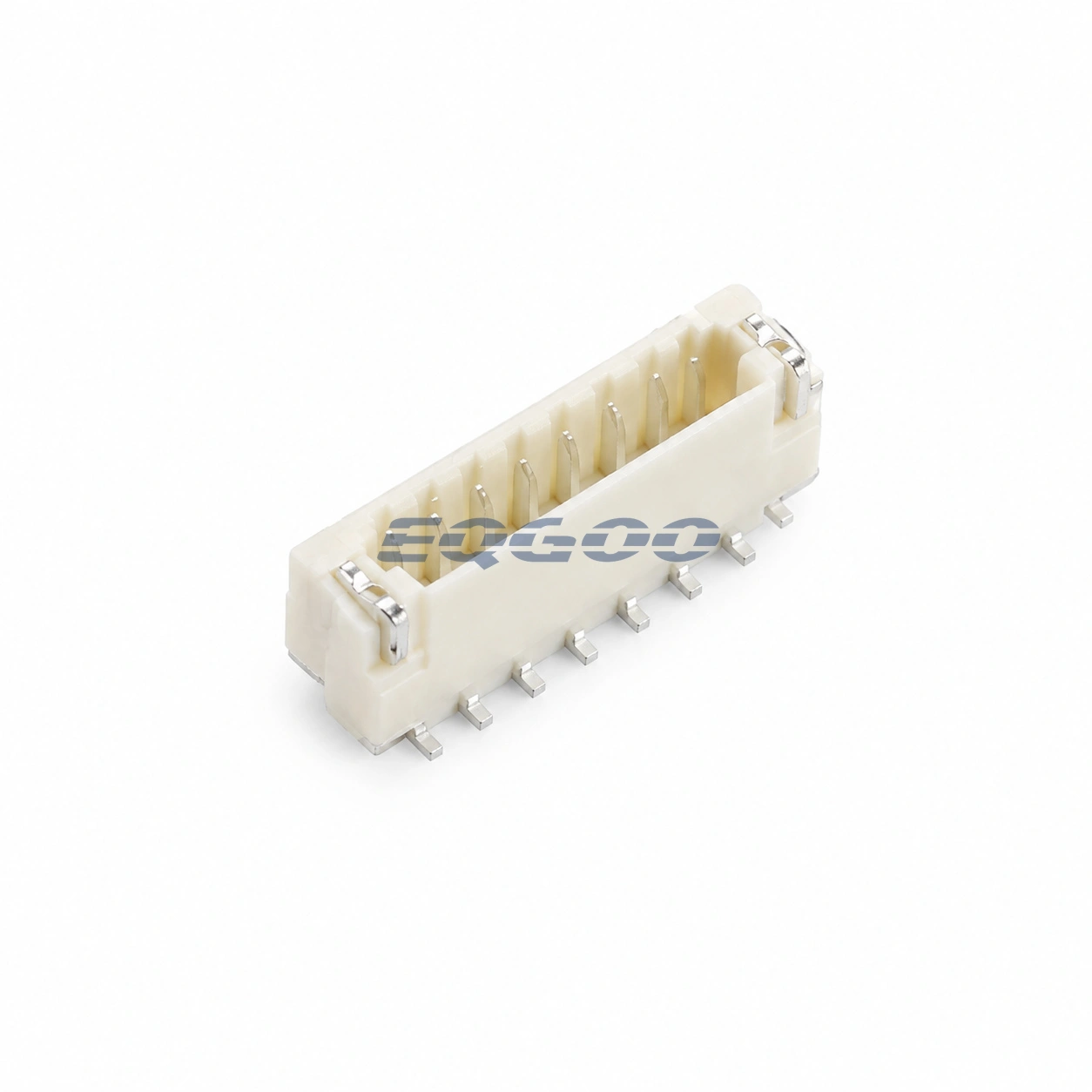

SM06B-SURS-TF(LF)(SN) – JST Headers, Male Pin

Name: SM06B-SURS-TF(LF)(SN) -25℃~+85℃ Tin Headers, Male Pin | JST
SKU: SM06B-SURS-TF(LF)(SN)

SM06B-SURS-TF(LF)(SN) is a JST headers, male pin in SMD,P=0.8mm,Surface Mount,Right Angle, with Operating Temperature -25℃~+85℃, Contact Plating Tin, Contact Material Copper alloy, Connector Type Surface Mount, Right Angle. Verify the exact orderable code, electrical/mechanical limits and system-level requirements before substitution or production release.

SKU: SM06B-SURS-TF(LF)(SN) Category: Headers, Male Pins Tag: SMD,P=0.8mm,Surface Mount,Right Angle Brand: JST
