Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | IEEE 802.3af PoE powered-device solution with active-clamp flyback control |
| Regulation options | Primary-side or secondary-side regulation |
| Integration | PD interface, DC/DC controller and hot-swap MOSFET |
| Switching frequency | Up to 650 kHz |
| Feedback feature | Primary-side feedback can operate without an auxiliary winding |
| EMI feature | Frequency jittering |
| Package | QFN-19, 3 mm × 4 mm |
| Orderable part | MP8017GL-Z |
Product Overview

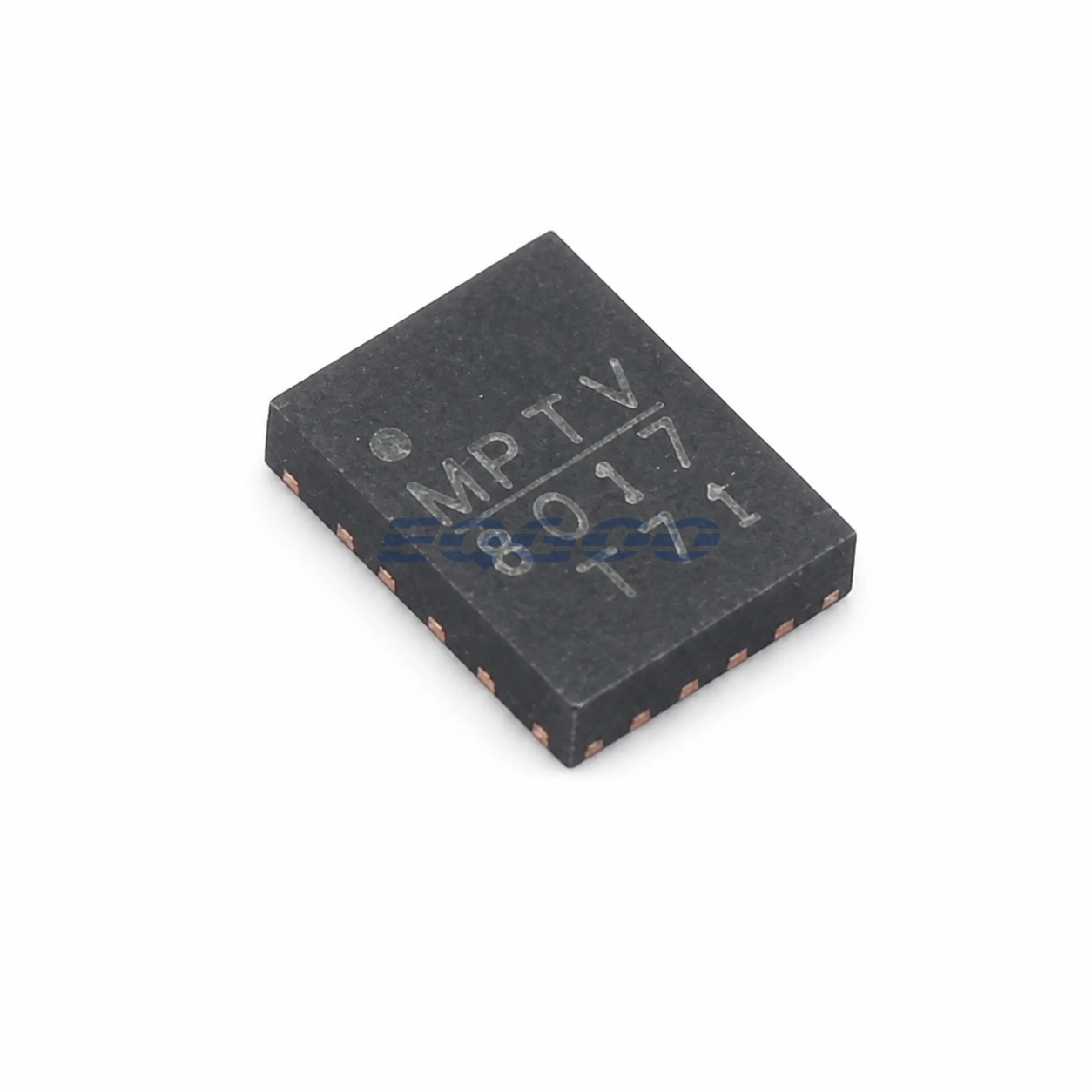

The MP8017GL-Z is an IEEE 802.3af-compatible PoE powered-device solution from MPS in a compact 19-pin QFN package. It integrates the PoE PD interface, the DC/DC control function and the hot-swap power MOSFET, reducing the external circuitry required for an isolated powered-device supply.
Its active-clamp flyback architecture supports primary-side or secondary-side regulation. In primary-side-regulated designs, MPS describes a feedback method that samples the output without an auxiliary transformer winding, while switching operation can extend to 650 kHz to support smaller magnetic components.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| PoE standard | IEEE 802.3af |
| PD channels | 1 |
| Converter topology | Active-clamp flyback |
| Regulation | Primary-side or secondary-side |
| Integrated functions | PD interface, DC/DC controller, hot-swap MOSFET |
| Switching frequency | Up to 650 kHz |
| EMI support | Frequency jittering |
| Reference application power | MPS discusses a 12 W design using a compact EP7 transformer |
| Operating temperature | -40°C to +125°C junction range reported for the orderable device |
| Package | QFN-19, 3 mm × 4 mm |
Design Considerations
The high switching-frequency capability is primarily a size and magnetics optimization tool, not a requirement to operate every design at 650 kHz. Transformer loss, MOSFET switching loss, EMI and control-loop behavior should be checked at the chosen operating point.
Primary-side regulation can reduce optocoupler and auxiliary-winding requirements, but transformer design and sampling conditions remain part of regulation accuracy. Use the MP8017 reference design equations and transformer guidance rather than treating the converter as a drop-in generic PoE controller.
