Device Overview

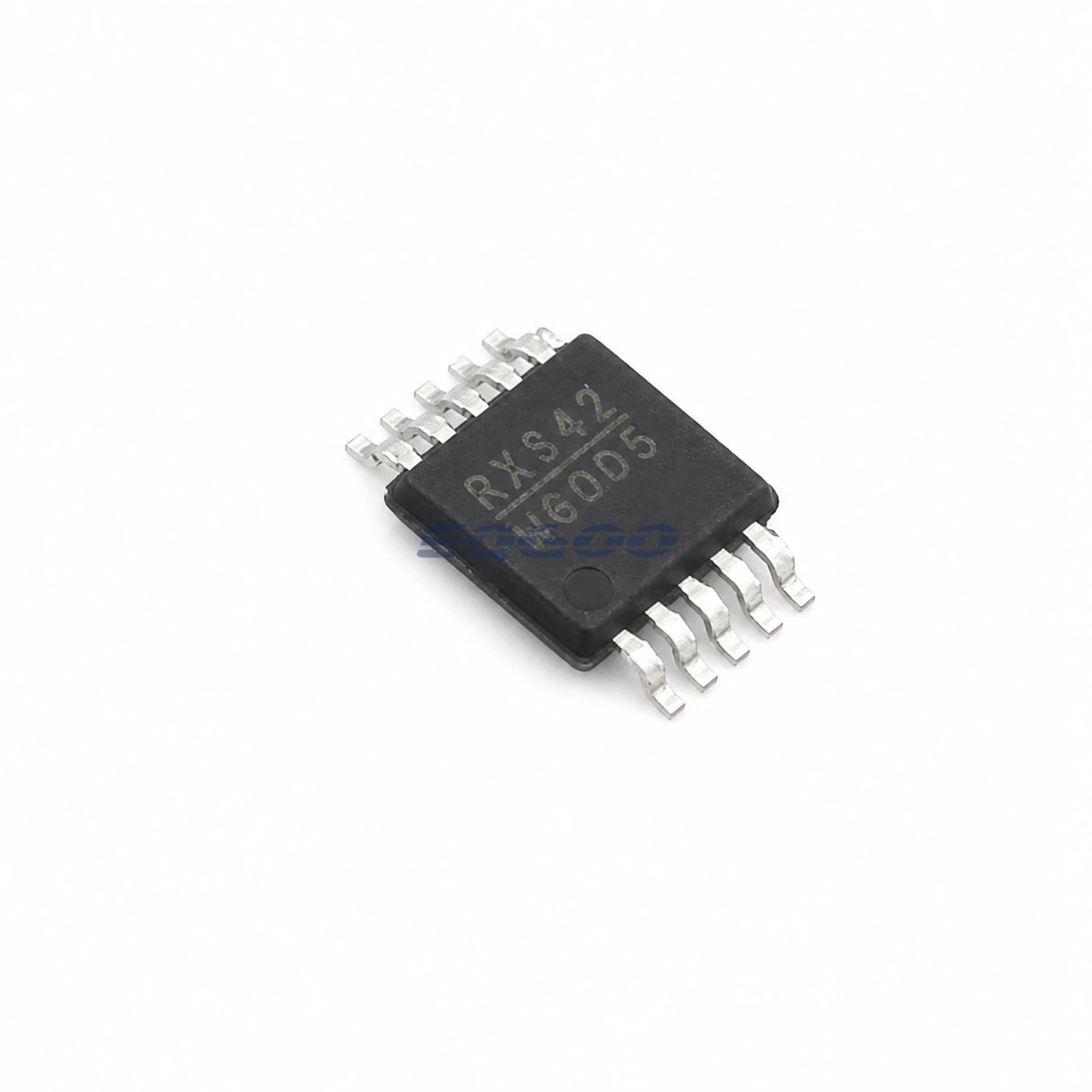

MP6005GK-Z is an MSOP-10 flyback and forward controller covering an 8 V to 80 V input range. It supports primary-side-regulated flyback operation, secondary-side-regulated flyback, and active-clamped forward conversion with a dedicated synchronous gate-drive output.
The controller runs at a fixed 250 kHz switching frequency. Its main gate driver is rated at 2 A and the SYNC driver at 0.8 A, while a 160 mV current-sense limit supports primary-side current regulation.
Confirmed Technical and Ordering Data
| Parameter | Confirmed value | Scope / condition |
|---|---|---|
| Device Function | High-efficiency flyback and forward controller supporting primary- and secondary-side regulation | Manufacturer documented |
| Input Voltage | 8 to 80 V | Manufacturer documented |
| Output Voltage Or Range | No fixed output voltage; output is set by the external flyback/forward power stage and feedback network | Manufacturer documented |
| Current Rating | 2 A GATE driver and 0.8 A SYNC driver | Manufacturer documented |
| Switching Frequency | 250 kHz | fixed |
| Control Interface | PSR flyback; SSR flyback; active-clamped forward with synchronous driver | Manufacturer documented |
| Protection Features | Hiccup protection; overload protection; short-circuit protection; over-voltage protection; thermal shutdown | Manufacturer documented |
| Current Sense Limit | 160 mV | Manufacturer documented |
| Exact Package | MSOP-10 GK-Z exact orderable | Manufacturer documented |
| Temperature Grade | -40 to 125 °C | recommended operating junction-temperature range |
Engineering Selection Guidance
MP6005 does not define one fixed output voltage because it is a controller rather than an integrated fixed-output converter. Output voltage depends on transformer ratio, external switching elements and the feedback/regulation network, so a BOM comparison should not invent an output-voltage range from the controller alone.
Primary-side regulation and secondary-side regulation are different operating architectures. In PSR flyback, the controller senses a primary-side auxiliary winding to avoid the optocoupler/TL431 feedback path; in SSR, secondary feedback is used and the synchronous driver can improve efficiency in active-clamped forward designs.
Protection includes hiccup behavior, overload, short circuit, output over-voltage and thermal shutdown. Frequency dithering is provided for EMI reduction. The exact GK-Z part is the MSOP-10 tape-and-reel orderable.
Lifecycle and Procurement
Monolithic Power Systems currently lists MP6005GK-Z as an active exact orderable. The exact package is MSOP-10. The documented temperature information used for this exact part is -40 to 125 °C. Manufacturer lifecycle status does not state HKEQGOO stock, lead time, MOQ or final availability.
