Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | High-power buck-boost converter/controller |
| Startup input range | 3.6 V to 36 V |
| Output range | 1 V to 36 V |
| Peak efficiency | Up to 98% |
| Digital interface | I2C |
| USB PD support | USB PD 3.1 EPR AVS and PPS |
| Package | QFN-20, 3 × 5 mm |
| Exact suffix | 0011 configuration, Z reel-size code |
Product Overview

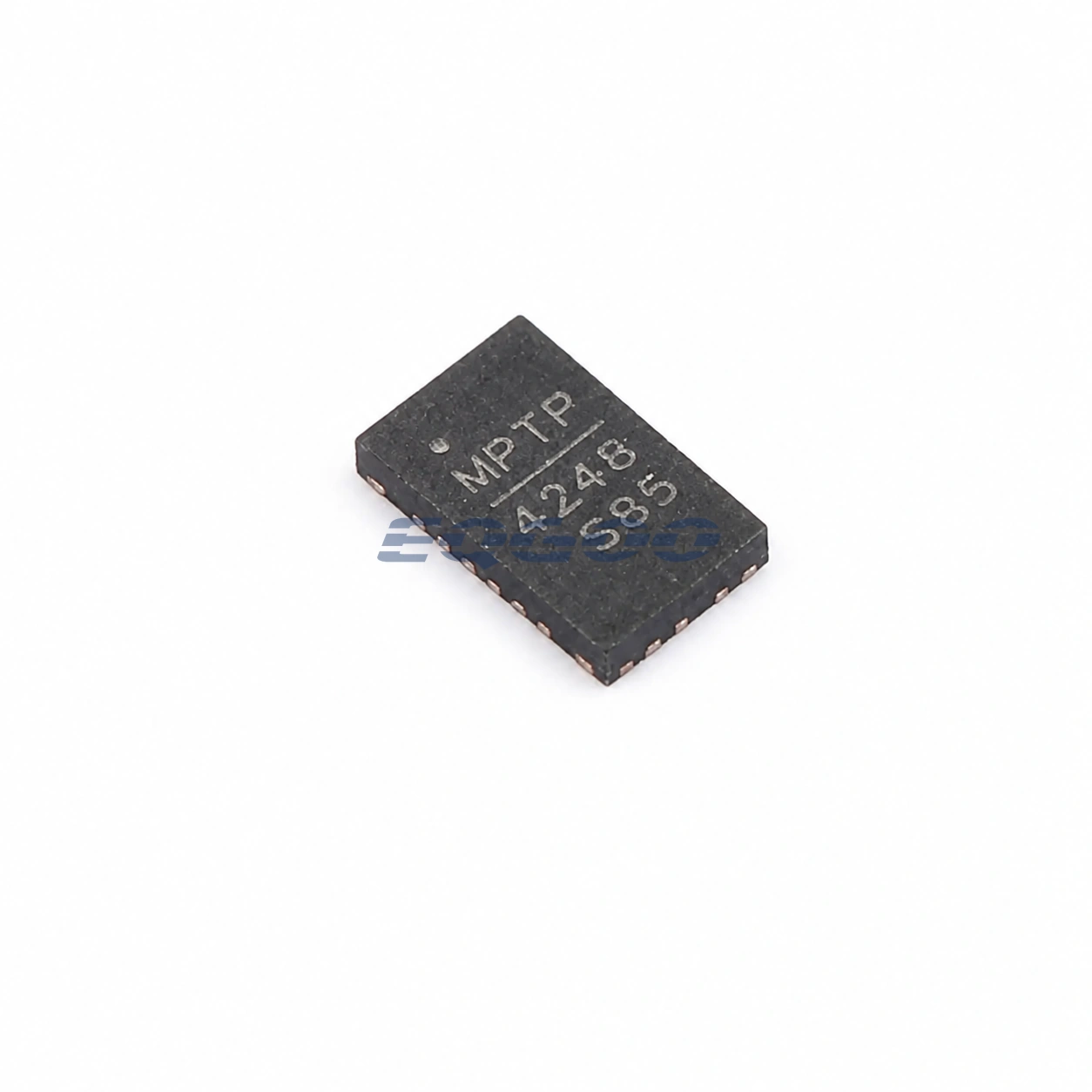

The MP4248GQV-0011-Z is an active MPS high-power buck-boost device with integrated low-side MOSFETs, high-side current sensing and I2C configuration. It is designed for systems that must regulate through input voltages above or below the requested output, including high-power USB Power Delivery applications.
The device starts from 3.6 V to 36 V input and supports 1 V to 36 V output with 1% accuracy. MPS also specifies up to 98% peak efficiency and USB PD 3.1 EPR AVS/PPS compatibility. The 0011 suffix is a configuration/OTP identity and should not be replaced by another MP4248 suffix without confirming register defaults.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Startup VIN | 3.6 V to 36 V |
| Falling VIN capability | Down to 2.8 V when VOUT >3.5 V |
| VOUT | 1 V to 36 V |
| Output accuracy | 1% |
| Peak efficiency | Up to 98% |
| Reference setting | I2C, 0.1 V to 2.147 V in 1 mV steps |
| Switching frequencies | 280 kHz, 420 kHz, 580 kHz selectable |
| Current limiting | High-side current sense, ±5% constant-current limit feature |
| Output-current monitor | IMON |
| Protection | OCP, OVP, thermal shutdown, shutdown discharge |
| Package | QFN-20, 3 × 5 mm |
| Exact order code | MP4248GQV-0011-Z |
| Product status | Active |
Design Considerations
The 0011 suffix represents a predefined configuration state, so replacing it with another MP4248 suffix can change startup/default behavior even though the silicon family and package are the same. Preserve exact suffixes unless OTP settings are deliberately requalified.
High-power buck-boost conversion also requires careful inductor, external high-side MOSFET and current-sense selection. Efficiency and thermal performance depend on the complete four-switch power stage, not the controller IC alone.
Related Engineering Resources
- MP4248 MPS product page and data sheet
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. After an order is placed, physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
To request a quotation, provide the manufacturer part number, required quantity, destination, target Date Code if applicable, and any testing or inspection requirements.
