Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Manufacturer | onsemi |
| Exact MPN | MMBFJ201 |
| Product Category | JFETs |
| Package | SOT-23-3L |
| Packing | 3,000 pcs/reel |
| Gate-Source Cutoff Voltage (VGS(off)) | 300mV |
| Gate-Source Breakdown Voltage (VGSS) | 40V |
| Power Dissipation (PD) | 350mW |
| Zero-Gate Drain Current (IDSS) | 1mA |
Product Overview
MMBFJ201 is a onsemi device in the JFETs category, supplied in a SOT-23-3L package.
Verified selection data includes Gate-Source Cutoff Voltage (VGS(off)): 300mV, Gate-Source Breakdown Voltage (VGSS): 40V, Power Dissipation (PD): 350mW, Zero-Gate Drain Current (IDSS): 1mA.
The sub-nanoampere gate-leakage specification is useful for high-impedance audio and sensor nodes; the low I_{DSS} limits available signal-handling current.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | onsemi |
| Exact MPN | MMBFJ201 |
| Functional Category | JFETs |
| Package | SOT-23-3L |
| Packing | 3,000 pcs/reel |
| Source Catalog ID | C891687 |
| Gate-Source Cutoff Voltage (VGS(off)) | 300mV |
| Gate-Source Breakdown Voltage (VGSS) | 40V |
| Power Dissipation (PD) | 350mW |
| Zero-Gate Drain Current (IDSS) | 1mA |
| Manufacturer Status | Active. |
Selection Notes
Low current; cutoff voltage; transconductance; gate leakage; high-impedance source compatibility.
Match channel polarity, VGS(off), breakdown voltage, current range and dissipation to the analog switch or bias point.
Manufacturer Decision-Relevant Notes
V_{DG} max 40 V; V_{GS} max -40 V; I_{GF} max 50 mA; operating/storage junction range -55 to +150 °C; P_D max 350 mW at 25 °C; R_{θ JA} 357 °C/W; V_{(BR)GSS} min 40 V; I_{GSS} max 100 pA at V_{GS}=-20 V; V_{GS(off)} -0.3 to -1.5 V; I_{DSS} 0.2–1.0 mA; y_{fs} typ 500 µmhos at V_{DS}=20 V, 1 kHz.
Design Considerations
- Verify bias stability over -55 to +150 °C; use the full 0.2–1.0 mA I_{DSS} range; check V_{GS(off)} spread in the operating-point design; budget 350 mW maximum dissipation with board thermal resistance.
Application Fit
Low-level audio and general-purpose amplification with high-impedance signal sources.
Exact Variant and Procurement Notes

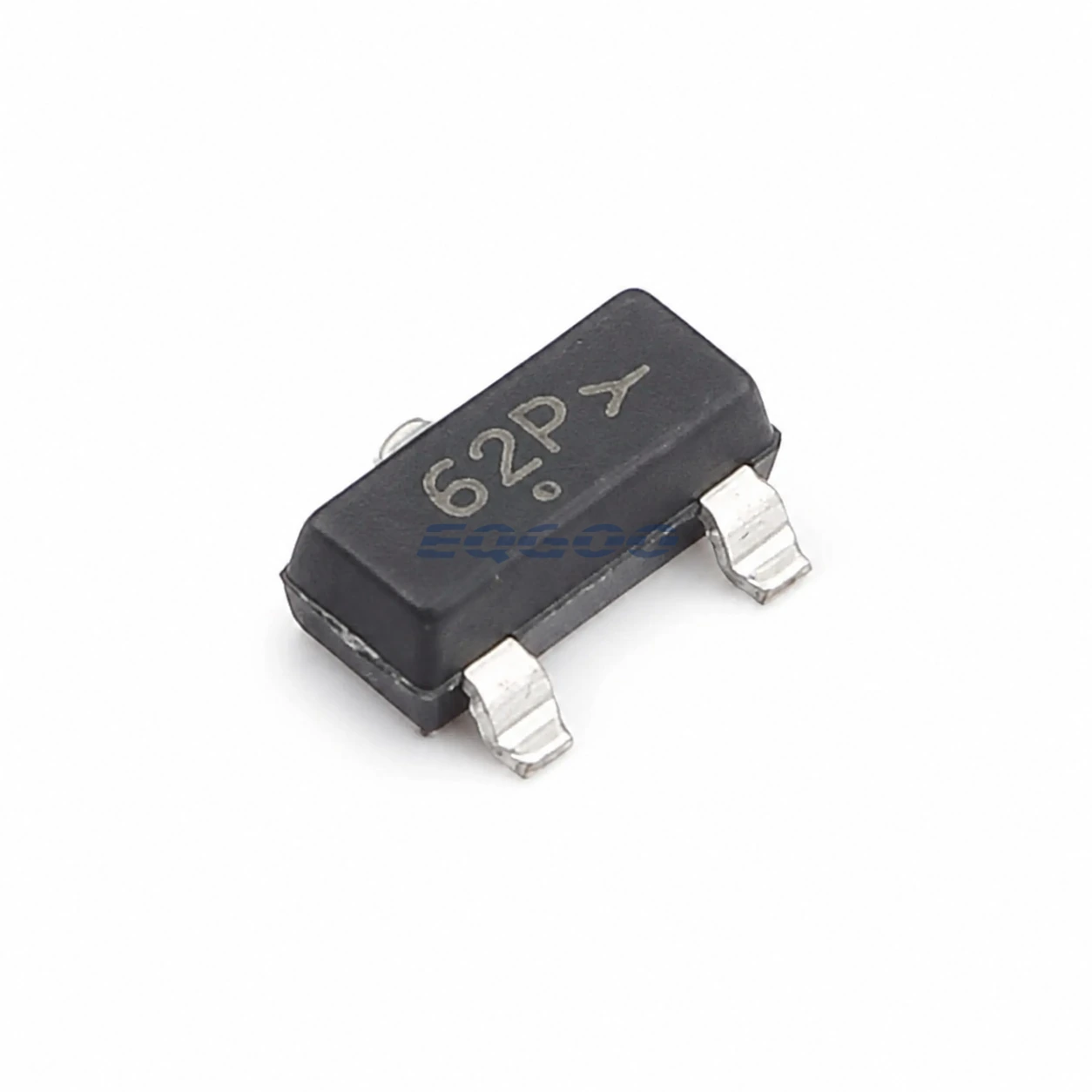

Exact MPN MMBFJ201; SOT-23, top mark 62P, 3,000/tape-and-reel, Pb-free.
