Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Manufacturer | onsemi |
| Exact MPN | MMBFJ175LT1G |
| Product Category | JFETs |
| Package | SOT-23 |
| Packing | 3,000 pcs/reel |
| Configuration | 1 P-channel |
| Gate-Source Cutoff Voltage (VGS(off)) | 3V |
| Gate-Source Breakdown Voltage (VGSS) | 30V |
| Power Dissipation (PD) | 225mW |
Product Overview

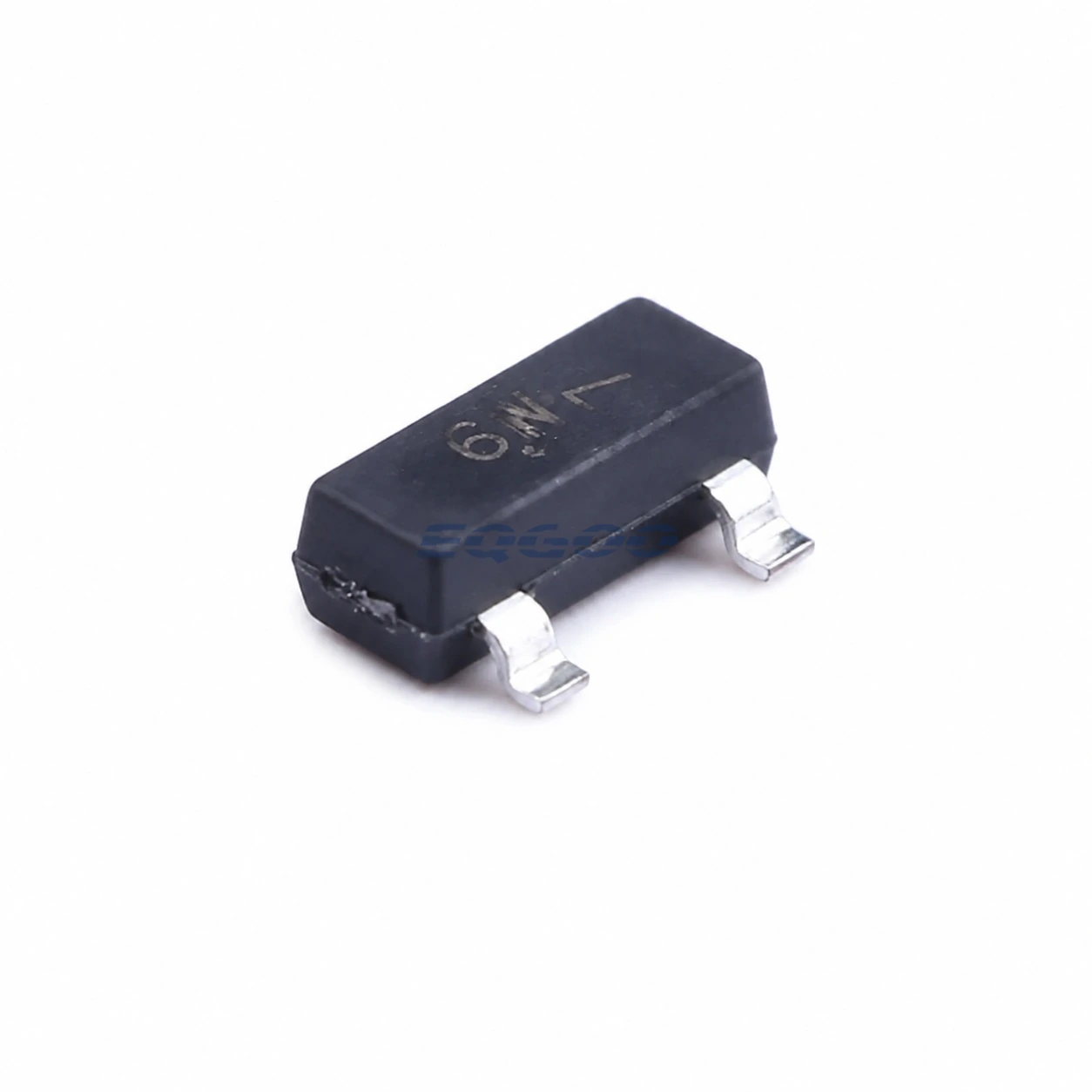

MMBFJ175LT1G is a onsemi device in the JFETs category, supplied in a SOT-23 package.
Verified selection data includes Configuration: 1 P-channel, Gate-Source Cutoff Voltage (VGS(off)): 3V, Gate-Source Breakdown Voltage (VGSS): 30V, Power Dissipation (PD): 225mW.
The relatively wide I_{DSS} range makes this a poor choice for precision current setting without feedback or trimming.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | onsemi |
| Exact MPN | MMBFJ175LT1G |
| Functional Category | JFETs |
| Package | SOT-23 |
| Packing | 3,000 pcs/reel |
| Source Catalog ID | C133304 |
| Configuration | 1 P-channel |
| Gate-Source Cutoff Voltage (VGS(off)) | 3V |
| Gate-Source Breakdown Voltage (VGSS) | 30V |
| Power Dissipation (PD) | 225mW |
| Manufacturer Status | Active. |
Selection Notes
P-channel polarity; I_{DSS}; cutoff voltage; on-resistance; standard versus S-prefix qualification.
Match channel polarity, VGS(off), breakdown voltage, current range and dissipation to the analog switch or bias point.
Manufacturer Decision-Relevant Notes
V_{DG} max 25 V; reverse V_{GS} max -25 V; V_{(BR)GSS} min 30 V; V_{GS(off)} min 3.0 V, max 6.0 V; I_{DSS} min 7 mA, max 60 mA at V_{GS}=0, V_{DS}=15 V; I_{D(off)} max 1 nA; r_{DS(on)} max 125 Ω at I_D=500 µ A; C_{iss} max 11 pF; C_{rss} max 5.5 pF.
Design Considerations
- Verify source/drain polarity and negative gate stress; check 125 Ω worst-case resistance; calculate dissipation using 225 mW at 25 °C and 1.8 mW/°C derating; verify gate leakage under the actual bias.
Application Fit
Analog switching, sample-and-hold, chopper-stabilized amplifiers.
Exact Variant and Procurement Notes
SOT-23, Pb-free, 3,000/tape-and-reel; the SMMBFJ175LT1G is the automotive-qualified variant.
