Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Manufacturer | MPS |
| Exact MPN | MA330GQ-Z |
| Product Category | Position Sensors |

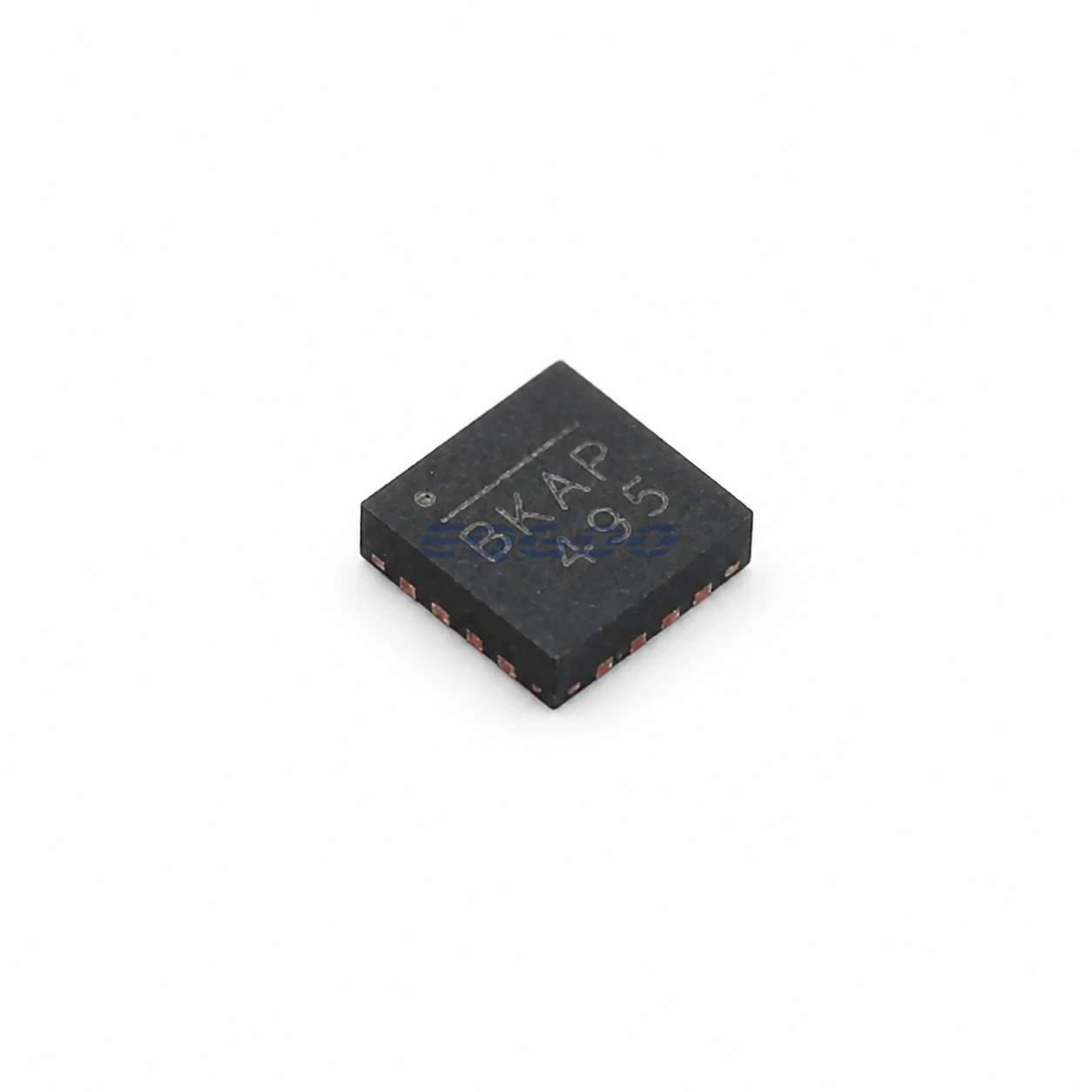

| Package | QFN-16(3×3) |
| Packing | 5,000 pcs/reel |
| Type | Magnetic rotary position sensor |
| Interface | SPI |
| Operating Voltage | 3V to 3.6V |
| Operating Current | 11.7mA |
Product Overview
14-bit digital contactless angle sensor with ABZ and UVW incremental outputs.
Programmable resolution and filtering allow a trade-off between angular granularity, noise, and control-loop behavior. UVW emulation can avoid a separate commutation sensor interface.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | MPS |
| Exact MPN | MA330GQ-Z |
| Functional Category | Position Sensors |
| Package | QFN-16(3×3) |
| Packing | 5,000 pcs/reel |
| Source Catalog ID | C3825333 |
| Type | Magnetic rotary position sensor |
| Interface | SPI |
| Operating Voltage | 3V to 3.6V |
| Operating Current | 11.7mA |
| Manufacturer Status | Active. |
Selection Notes
Resolution; ABZ pulse count; UVW pole-pair emulation; speed; end-/side-shaft geometry.
Match the interface and supply to the host controller, then verify resolution/latency and the required magnet geometry for the mechanical stack-up.
Manufacturer Decision-Relevant Notes
9-bit-to-14-bit programmable resolution; SPI interface; 12-bit ABZ quadrature interface; ABZ programmable from 1 to 1024 pulses/turn; UVW emulation for 1 to 8 pole pairs; 3.3V, 12mA supply; 0–60,000rpm stated operating speed range.
Design Considerations
- Validate magnet field strength and air gap; configure reference-zero angle; verify ABZ/UVW pulse settings; check SPI signal integrity; budget 3.3V supply current and thermal limits.
Application Fit
Servo applications, rotary encoders, BLDC commutation, diagnostics, and axial-movement detection.
Exact Variant and Procurement Notes
MPS lists MA330GQ-P and MA330GQ-Z as the same part; P and Z indicate reel size. Package: QFN-16, 3mm × 3mm; operating temperature: -40°C to +125°C; MPS lists 5,000 per reel.
Manufacturer Resources
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer. Additional verification requirements can be discussed before shipment. Physical product, label, packaging, and Date Code photos may be provided where appropriate.
Request a Quote
For MA330GQ-Z quotation, provide the exact MPN, required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
