Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Topology | Monolithic linear audio power amplifier |
| Output | 20 W into 4 Ω or 8 Ω at ±25 V stated; >30 W possible into 8 Ω at ±30 V stated condition |
| Supply | 16 V to 60 V total supply range stated |
| Distortion | 0.015% stated at 1 kHz / 20 W condition |
| Power Bandwidth | 70 kHz stated |
| Current Capability | 4 A stated |
| Protection | Internal current limiting, thermal shutdown and output protection diodes |
| Exact Package / Packing | TO-220 (NDH), 5 pins; 45-piece tube; 0°C to +70°C; marking LM1875T |
Product Overview

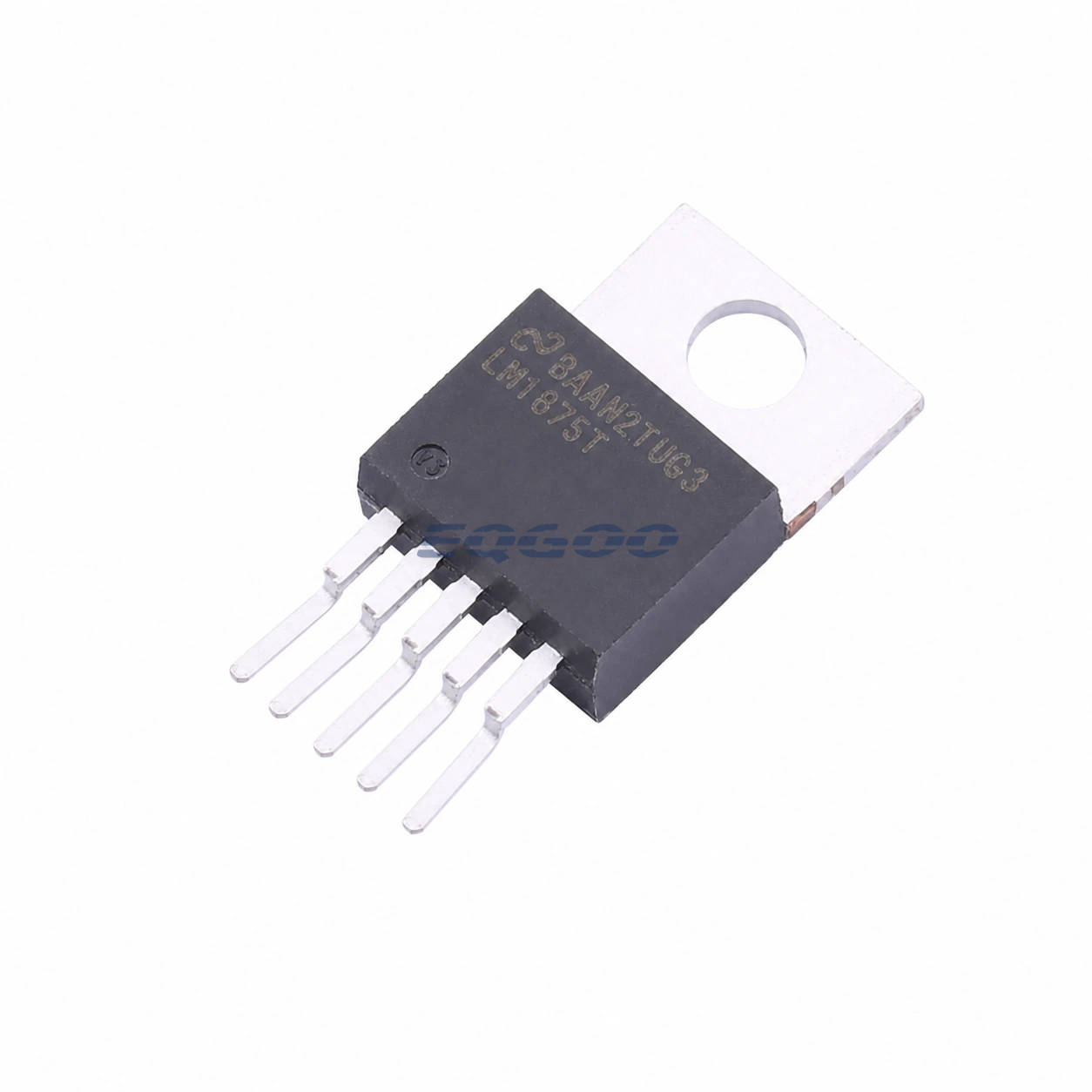

LM1875T/NOPB is a linear power amplifier for high-fidelity analog audio systems. Unlike Class-D devices, the output transistors operate linearly, which simplifies EMI/output filtering but creates substantially more heat at high output power.
The common 20-W operating point is specified with ±25 V rails into 4-Ω or 8-Ω loads. Higher headline power requires different rail/load conditions and therefore a different thermal dissipation calculation.
The TO-220 package is intended for heatsink attachment. Internal current and thermal protection improve robustness, but sustained high-power operation still depends on heatsink thermal resistance and safe supply/load selection.
For related devices, see HKEQGOO’s Audio Amplifiers category.
Technical Specifications
| Parameter | Verified Information |
|---|---|
| Manufacturer | Texas Instruments |
| Exact MPN | LM1875T/NOPB |
| Topology | Monolithic linear audio power amplifier |
| Output | 20 W into 4 Ω or 8 Ω at ±25 V stated; >30 W possible into 8 Ω at ±30 V stated condition |
| Supply | 16 V to 60 V total supply range stated |
| Distortion | 0.015% stated at 1 kHz / 20 W condition |
| Power Bandwidth | 70 kHz stated |
| Current Capability | 4 A stated |
| Protection | Internal current limiting, thermal shutdown and output protection diodes |
| Exact Package / Packing | TO-220 (NDH), 5 pins; 45-piece tube; 0°C to +70°C; marking LM1875T |
| Manufacturer Status | Active / Production |
| Part Marking | LM1875T |
Functional Highlights
Linear topology offers a simple analog signal path
No high-frequency PWM output filter is required, which can simplify audio/EMI design when efficiency is secondary.
TO-220 enables external heatsinking
The package can move several watts of dissipation to a chassis/heatsink, allowing higher continuous power than small surface-mount linear amplifiers.
Design Considerations
- Calculate worst-case device dissipation and heatsink Rθ before setting supply rails.
- Keep closed-loop gain at or above the datasheet stability requirement.
- Separate high-current speaker returns from small-signal input ground.
Product Status and Exact Order Code
Texas Instruments lists LM1875T/NOPB as Active / Production; TO-220 (NDH), 5 pins; 45-piece tube; 0°C to +70°C; marking LM1875T.
