Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | Hex CMOS voltage-level shifter |
| Channels | 6 |
| Direction | Fixed-direction translation |
| Supply class | Wide-voltage CD4000 CMOS |
| Input threshold selection | CMOS / TTL selectable |
| Package | TSSOP-16 |
| Temperature range | -55°C to +125°C |
| Product status | Active |
Product Overview

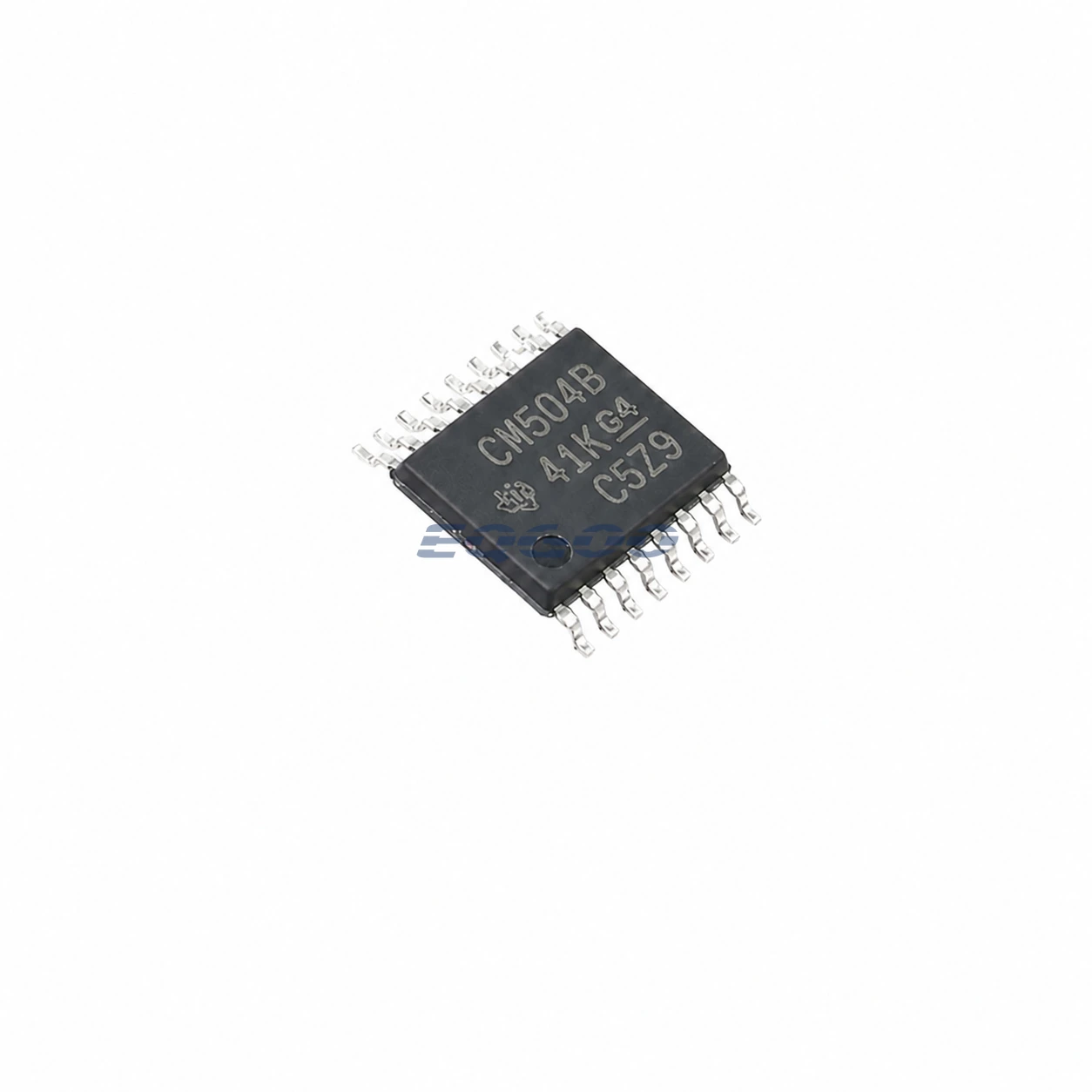

The CD4504BPWR is TI’s active TSSOP-16 tape-and-reel orderable for a six-channel voltage-level shifter. It supports TTL-to-CMOS and CMOS-to-CMOS translation and provides selectable input-threshold behavior.
This device is not an auto-direction-sensing translator. Supply arrangement and SELECT control must be intentionally designed for the required direction and threshold mode.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Channels | 6 |
| Supply test classes | 5 V, 10 V, 15 V |
| Temperature range | -55°C to +125°C |
| Input current | 1 µA max at 18 V over full temperature range |
| Input overvoltage | Inputs can exceed VCC/VDD within datasheet limits |
| Supply relationship | VCC may exceed VDD |
| Output type | CMOS push-pull level shifted |
| Package | TSSOP-16 |
Design Considerations
Confirm both supply rails and threshold-select logic during power sequencing. Because inputs can be referenced differently from outputs, an apparently valid static level can still violate a power-off condition.
Use the datasheet propagation-delay table at the selected rail voltages and output load.
