Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | 8:1 single-channel analog multiplexer/demultiplexer |
| Signal path | Bidirectional |
| Single-supply range | 3 V to 20 V |
| Dual-supply range | ±3 V to ±10 V |
| Typical RON | 125 Ω at VDD = 15 V |
| Bandwidth | 20 MHz class |
| Switching | Break-before-make |
| Package | TSSOP-16 (PW) |
| Operating temperature | −55°C to +125°C |
| Product status | Active |
Product Overview

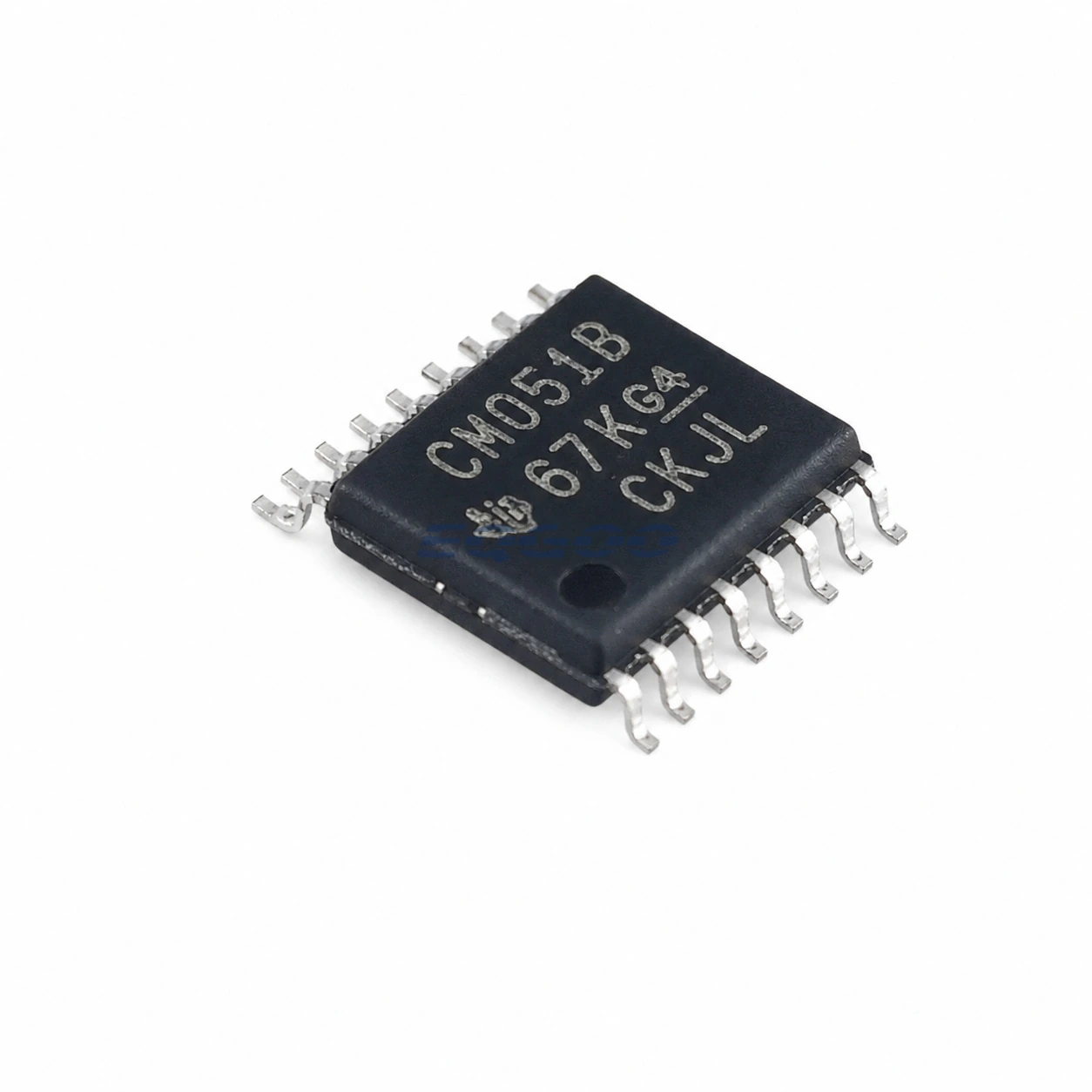

CD4051BPWR is the tape-and-reel TSSOP-16 orderable of Texas Instruments’ CD4051B CMOS 8-channel analog multiplexer/demultiplexer. Three binary select inputs connect one of eight bidirectional channels to a common signal node, while the inhibit function can disconnect all channels.
A key selection advantage of the CD4051B family is its wide signal and supply range. It can operate from a single 3 V to 20 V supply or from dual rails up to ±10 V, allowing analog signals to be routed around ground when the dual-supply arrangement is used.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Configuration | 8:1, one channel |
| Maximum analog span | Up to 20 Vp-p within supply limits |
| Typical RON | 125 Ω at 15 V supply |
| Typical channel leakage | ±10 pA at 15 V |
| Typical supply current | 0.04 µA class |
| Bandwidth | 20 MHz |
| Switching behavior | Break-before-make |
| Package | PW / TSSOP-16 |
| Temperature | −55°C to +125°C |
Multiplexer Integration Considerations
RON is significantly higher than in modern low-voltage analog switches, so source impedance and load current should be considered when routing precision analog signals. The benefit is the much wider allowable supply and signal span.
For replacement work, retain the PW package and R reel suffix when the assembly line depends on TSSOP tape-and-reel delivery.
Manufacturer Resource
Texas Instruments CD4051B product page
Quality & Verification Support
Exact CD4051BPWR order code, TSSOP-16 package, reel format, marking and lot/date information can be reviewed before shipment.
Request a Quote
Request CD4051BPWR exactly and include quantity, date-code and traceability requirements.
