Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | 8-stage parallel/serial-input shift register |
| Supply range | 3 V to 18 V |
| Typical clock rate | 12 MHz at 10 V |
| Load function | Asynchronous parallel load |
| Outputs | Serial output / selected intermediate outputs |
| Package | SOIC-16 |
| Temperature range | -55°C to +125°C |
| Product status | Active |
Product Overview

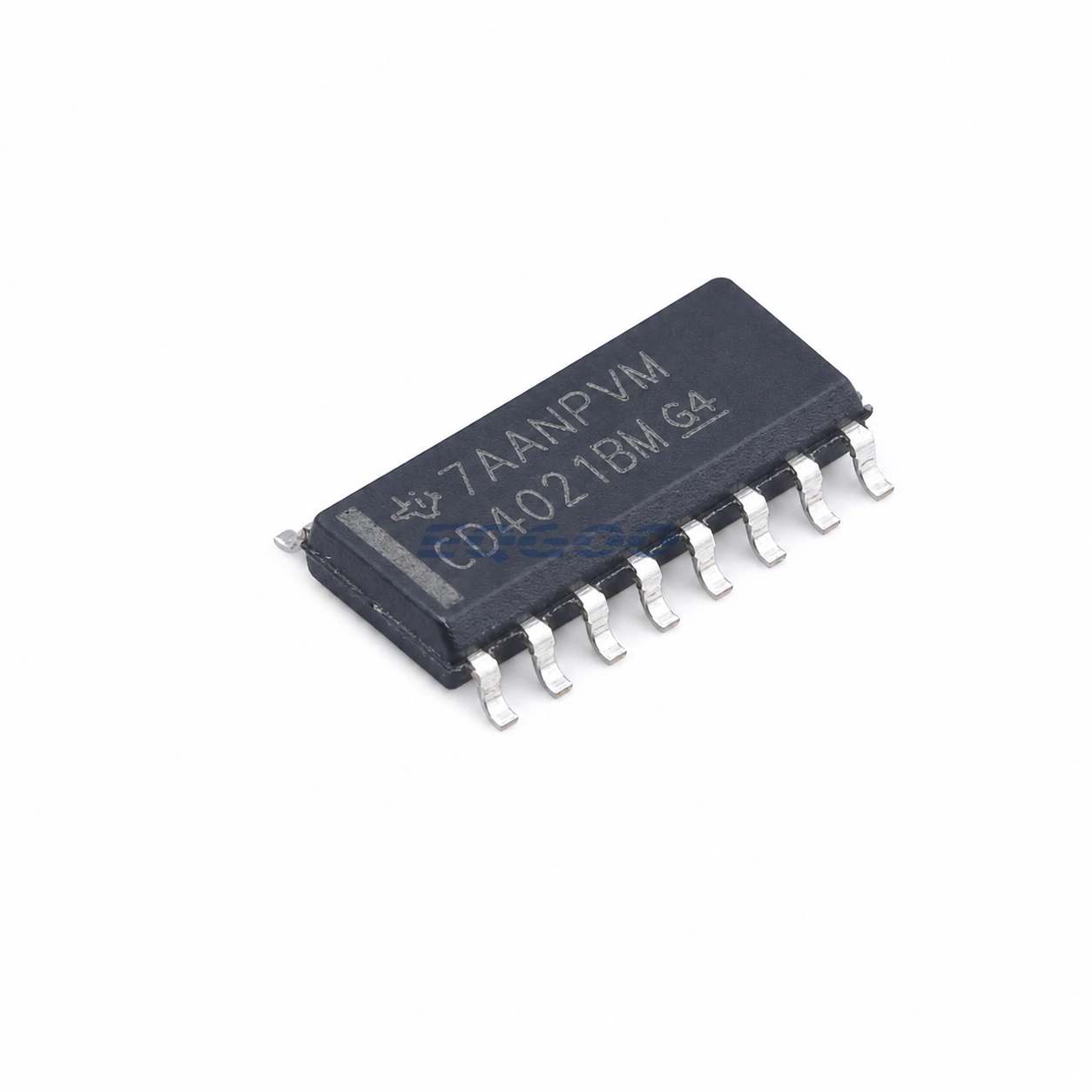

The CD4021BM96 is TI’s active SOIC-16 tape-and-reel orderable for the CD4021B 8-stage static shift register. It supports asynchronous parallel loading and serial shifting for input expansion and parallel-to-serial conversion.
The asynchronous parallel-load behavior distinguishes CD4021B from related shift registers. Firmware timing should reflect that control method rather than assuming all parallel-in CMOS shift registers load on a clock edge.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Stages | 8 |
| Supply voltage | 3–18 V |
| Parallel load | Asynchronous |
| Typical clock rate | 12 MHz at 10 V |
| Catalog max frequency | 8.5 MHz summary value |
| Input current | 1 µA max at 18 V over full temperature range |
| Noise margin | 1 V / 2 V / 2.5 V at 5 / 10 / 15 V |
| Output current | ±4.2 mA class |
| Operating temperature | -55°C to +125°C |
| Package | SOIC-16 |
Design Considerations
Tie control inputs to defined levels when unused. Because the register is static, data retention does not require a minimum clock frequency.
Clock and parallel-load timing depend on supply voltage, so use the datasheet limits at the actual VDD.
