Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Function | General-purpose RF low-noise amplifier MMIC |
| Frequency use | Approximately 50 MHz to 10 GHz family application range |
| Supply range | 1.8 V to 4.0 V |
| Gain / NF examples | 19 dB / 0.4 dB at 150 MHz; 17 dB / 0.6 dB at 2.4 GHz |
| Bias | Integrated active bias, adjustable operating current |
| ESD | 2 kV HBM |
| Package | TSLP-7-1 |
| Lifecycle | Discontinued |
Product Overview

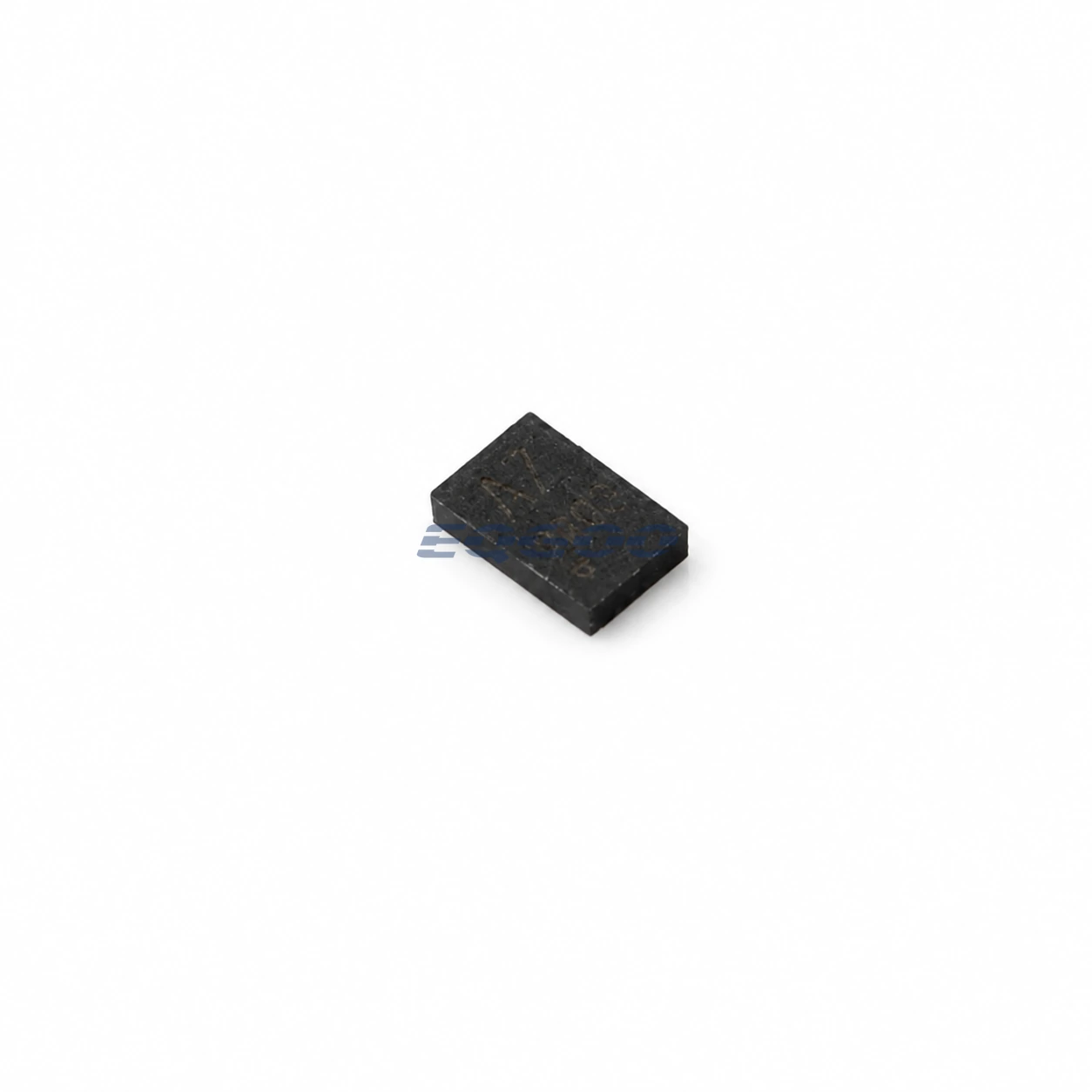

The BGB707L7ESDE6327XTSA1 is the exact discontinued Infineon orderable for the BGB707L7ESD general-purpose low-noise amplifier MMIC. It integrates active biasing and ESD protection and can be configured across a wide RF frequency range.
Because Infineon marks the exact OPN discontinued, this is a legacy sourcing item. RF replacement requires verification of gain, noise, matching and pinout rather than simple package matching.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Supply voltage | 1.8–4.0 V |
| Example gain @150 MHz | 19 dB typ at IC = 3 mA |
| Example NF @150 MHz | 0.4 dB typ |
| Example gain @2.4 GHz | 17 dB typ at IC = 3 mA |
| Example NF @2.4 GHz | 0.6 dB typ |
| Example gain @3.5 GHz | 15.5 dB typ |
| Example NF @3.5 GHz | 0.75 dB typ |
| Maximum supply current | 25 mA |
| HBM ESD | 2 kV |
| Maximum junction temperature | 150°C |
| Package | TSLP-7-1 |
Design Considerations
Use frequency-specific matching and bias conditions from the datasheet. The headline gain/noise figures are not simultaneous broadband guarantees.
The official package is TSLP-7-1. Use Infineon’s package drawing when checking PCB footprint and assembly compatibility.
