Device Overview

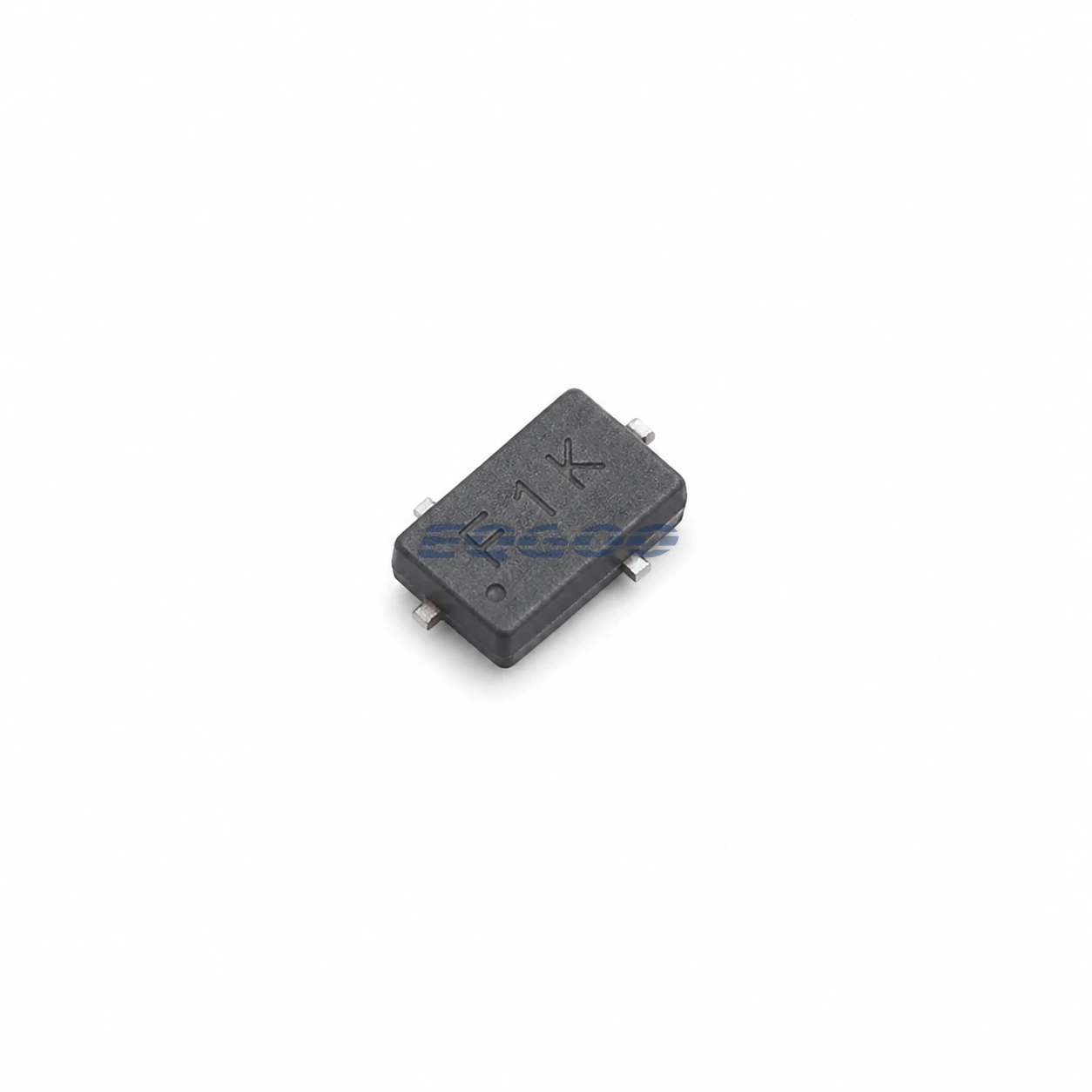

BGA824N6E6329XTSA1 is the TSNP-6-10 tape-and-reel orderable of Infineon’s BGA824N6 GNSS low-noise amplifier. It is designed for satellite-navigation receiver front ends where low noise figure and modest current consumption are more important than high output power.
Key Selection Information
| Parameter | Verified Information |
|---|---|
| Manufacturer | Infineon Technologies |
| Exact OPN | BGA824N6E6329XTSA1 |
| Application class | GNSS low-noise amplifier |
| Current Infineon parametric frequency | 1550 MHz to 1615 MHz |
| Insertion power gain | 17 dB |
| Noise figure | 0.55 dB |
| Supply current | 3.8 mA in the manufacturer application configuration |
| Supply range | 1.5 V to 3.6 V |
| IIP3 | +7 dBm |
| Control | Digital on/off switch |
| RF output | Internally matched to 50 Ω |
| Package | TSNP-6-10, approximately 0.7 mm x 1.1 mm footprint |
| Packing | 12,000 pieces, tape-and-reel |
| Manufacturer lifecycle | Active and preferred |
Engineering Selection Notes
The 17 dB gain and 0.55 dB noise figure are useful GNSS front-end figures only when the device is used with the manufacturer-recommended application network and layout. RF matching, PCB parasitics and antenna/filter loss can materially change system noise figure and gain.
Current consumption is only about 3.8 mA, which suits always-on GNSS receivers, but the RF chain still needs enough linearity for blockers. The +7 dBm IIP3 figure helps compare blocker tolerance with lower-current alternatives.
The exact E6329XTSA1 order code fixes the TSNP-6-10 package and 12,000-piece tape-and-reel packing. Package footprint and RF ground layout are therefore part of exact-SKU substitution, not just procurement metadata.
Official Engineering Resources
Quality & Verification Support
Third-party inspection or testing can be arranged according to customer requirements. Testing fees are borne by the buyer.
Request a Quote
For BGA824N6E6329XTSA1 sourcing, provide the required quantity, destination, target Date Code if applicable, and any inspection or testing requirements.
