Key Selection Information
| Selection Parameter | Confirmed Information |
|---|---|
| Device type | Dual Schottky switching diode |
| Configuration | Two diodes in series |
| Maximum reverse voltage | 40 V |
| Average current class | 120 mA per diode |
| Forward voltage | Up to 1 V at 40 mA class |
| Reverse leakage | 10 µA class at 40 V |
| Junction temperature | Up to 150°C |
| Package | SOT-23 |
| Packing | ,215 tape-and-reel |
Product Overview

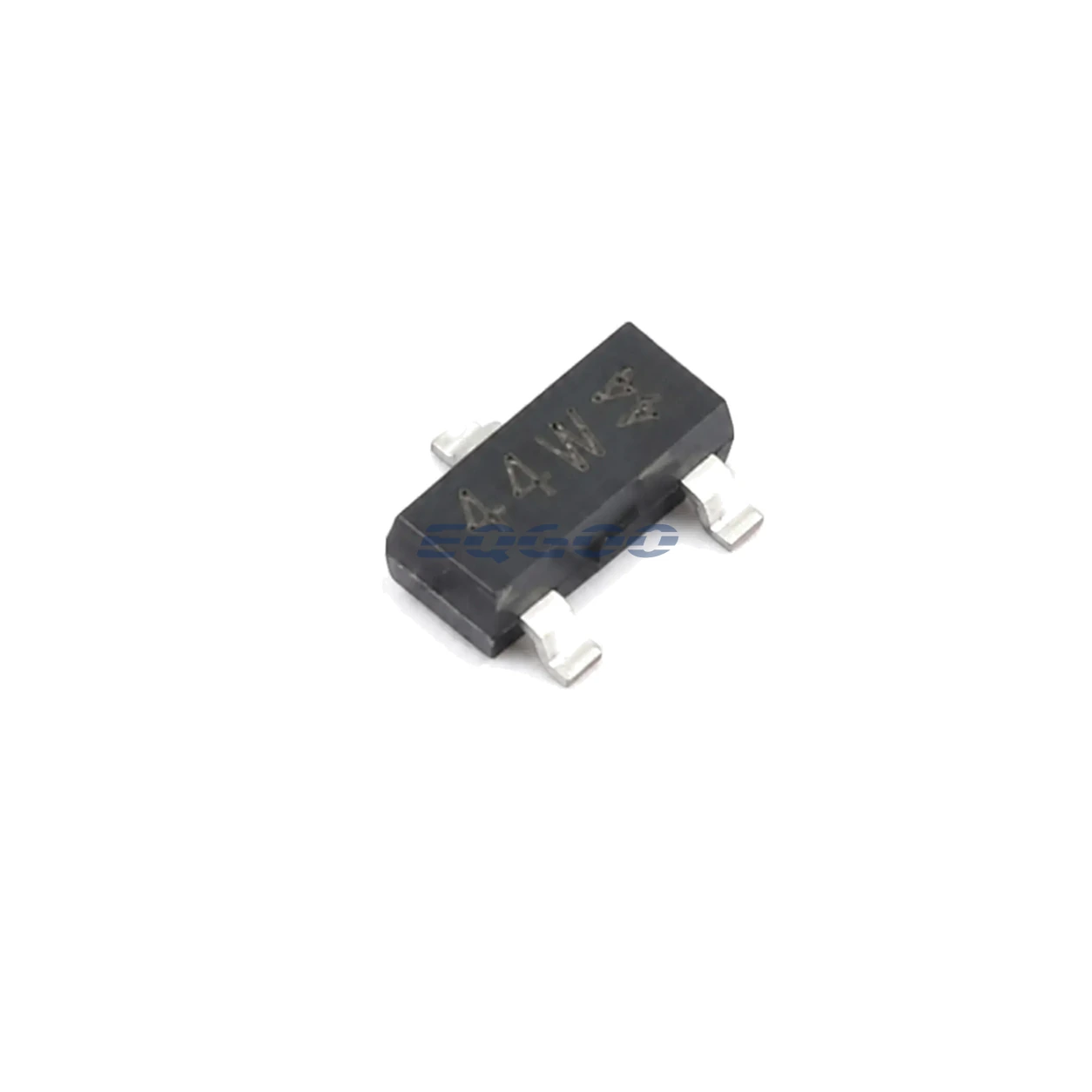

BAS40-04,215 is a Nexperia dual Schottky diode with the two junctions connected in series inside a three-pin SOT-23 package. It is intended for high-speed switching and voltage-clamping functions that benefit from low junction capacitance and Schottky forward behavior.
The -04 topology is electrically different from independent, common-anode and common-cathode BAS40 variants even though their basic diode ratings are similar.
Technical Specifications
| Parameter | Confirmed Information |
|---|---|
| Diodes | 2 |
| Configuration | Series-connected pair |
| Reverse voltage | 40 V |
| Current | 120 mA class per diode |
| Technology | Schottky |
| Junction temperature | 150°C max |
| Package | SOT-23 |
| Exact orderable | BAS40-04,215 |
Topology Considerations
Pin compatibility cannot be assumed across BAS40 suffixes. Verify the -04 series connection against the schematic before replacing it with -05, -06 or -07 configurations.
